Without Intelligent Key System

B2193 CHAIN OF ECM-IMMU

DTC Logic

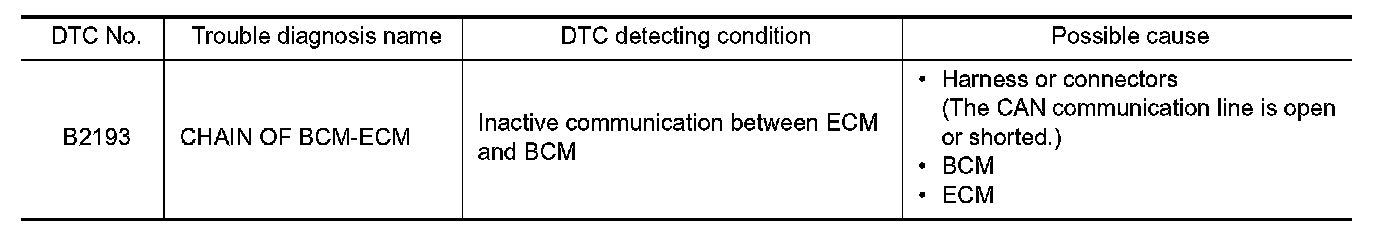

DTC DETECTION LOGIC

NOTE:
- If DTC B2193 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
Without Intelligent Key System.
- If DTC B2193 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to
Without Intelligent Key System.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON.
2.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- .
NO- INSPECTION END


Diagnosis Procedure


1. REPLACE BCM

1.Replace BCM. Service and Repair.
2.Perform initialization of BCM and registration of all ignition keys using CONSULT.
Can the system be initialized and can the engine be started with registered ignition key?
YES- INSPECTION END
NO- GO TO 2.

2. REPLACE ECM

Replace ECM.
Service and Repair.
- INSPECTION END
