B2193 CHAIN OF ECM-IMMU

DTC Logic

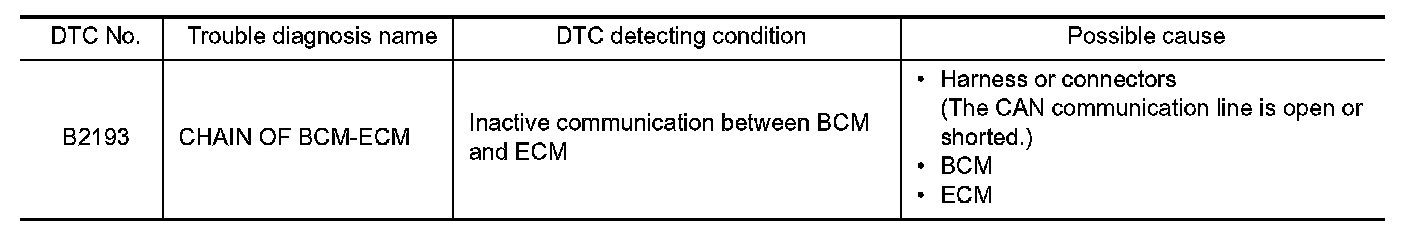

DTC DETECTION LOGIC

NOTE:
- If DTC B2193 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
With Intelligent Key System.
- If DTC B2193 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to
With Intelligent Key System.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON.
2.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. REPLACE BCM

1.Replace BCM. With Intelligent Key System.
2.Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.
Can the system be initialized and can the engine be started with registered Intelligent Key?
YES- INSPECTION END
NO- GO TO 2.

2. REPLACE ECM

Replace ECM.
Service and Repair.
- INSPECTION END
