Without Intelligent Key System
B2192 ID DISCORD, IMMU-ECM
DTC Logic

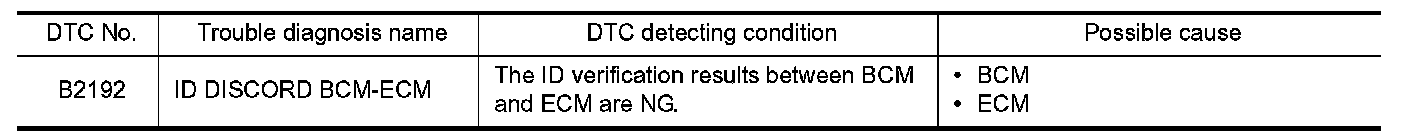

DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1. PERFORM DTC CONFIRMATION PROCEDURE
1.Turn ignition switch ON.
2.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- .
NO- INSPECTION END
Diagnosis Procedure
1. PERFORM INITIALIZATION
Perform initialization of BCM and registration of all ignition keys using CONSULT.
Can the system be initialized and can the engine be started with registered ignition key?
YES- INSPECTION END
NO- GO TO 2.
2. CHECK SELF DIAGNOSTIC RESULT
1.Select "Self Diagnostic Result" mode of "ENGINE" using CONSULT.
2.Erase DTC.
3.Perform DTC CONFIRMATION PROCEDURE for DTC B2192. .
Is DTC detected?
YES- GO TO 3.
NO- INSPECTION END
3. REPLACE BCM
1.Replace BCM. Service and Repair.
2.Perform initialization of BCM and registration of all ignition keys using CONSULT.
Can the system be initialized and can the engine be started with registered ignition key?
YES- INSPECTION END
NO- GO TO 4.
4. REPLACE ECM
Replace ECM.
Service and Repair.
- INSPECTION END
