B210F

B210F SHIFT POSITION/CLUTCH INTERLOCK SWITCH

DTC Logic

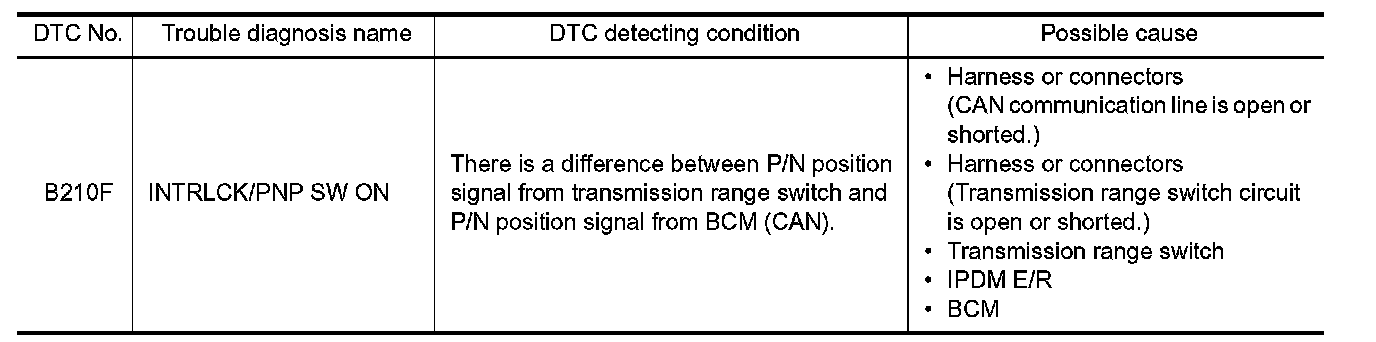

DTC DETECTION LOGIC

NOTE:
If DTC B210F is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. IPDM E/R With I-Key.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Shift selector lever to the P position.
2.Turn ignition switch ON and wait 1 second or more.
3.Shift selector lever to the N position and wait 1 second or more.
4.Shift selector lever to any position other than P and N, and wait 1 second or more.
5.Check DTC in "Self Diagnostic Result" mode of "IPDM E/R" using CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK DTC OF BCM

Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- Perform the trouble diagnosis related to the detected DTC. Testing and Inspection.
NO- GO TO 2.

2. CHECK DTC OF TCM

Check DTC in "Self Diagnostic Result" mode of "TCM" using CONSULT.
Is DTC detected?
YES- Perform the trouble diagnosis related to the detected DTC. Testing and Inspection.
NO- GO TO 3.

3. CHECK IPDM E/R SIGNAL CIRCUIT OPEN AND SHORT

1.Turn ignition switch OFF.
2.Disconnect IPDM E/R connector.
3.Disconnect transmission range switch connector.
4.Check continuity between IPDM E/R harness connector and transmission range switch harness connector.

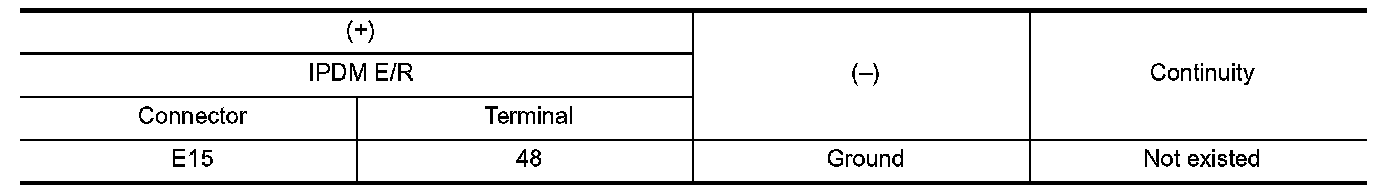

5.Check continuity between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES- Replace IPDM E/R. IPDM E/R (With I-Key).
NO- Repair or replace harness.
