Component Inspection

WASHER SWITCH

Component Inspection

Regarding Wiring Diagram information, Front Wiper And Washer System Coupe or Front Wiper And Washer System Sedan.

1. CHECK WASHER SWITCH

1.Turn the ignition switch OFF.
2.Disconnect combination switch (wiper and washer switch).

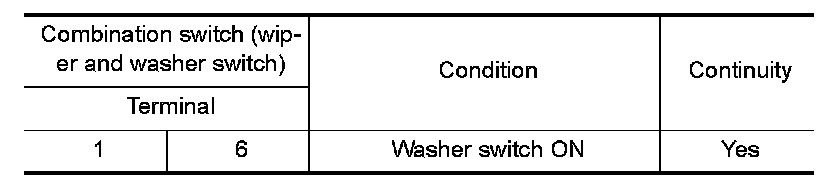

3.Check continuity between the combination switch (wiper and washer switch) terminals.





Does continuity exist?
YES- Washer switch is normal.
NO- Replace combination switch (wiper and washer switch). Service and Repair.
