Removal And Installation

FRONT DOOR GLASS

Removal and Installation


REMOVAL

1.Remove the front door finisher. Removal And Installation Coupe for Coupe or Removal And Installation Sedan for Sedan.
2.Remove the bolt hole access covers from the door module assembly.

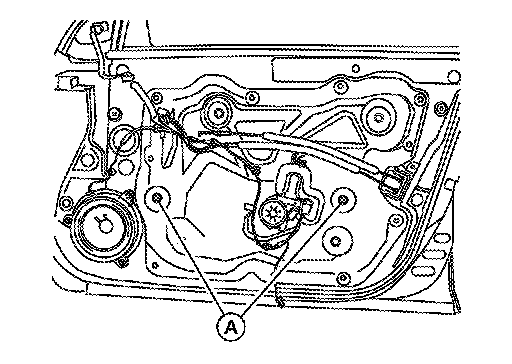

3.Reconnect the window switch to raise/lower the door glass until the door glass bolts (A) can be seen through the access holes on the door module assembly.





4.Remove the door glass bolts (A).





5.While holding the door glass, raise it at the rear end to pull the door glass out of the sash toward the outside of the door.
Installation
Installation is in the reverse order of removal.

Inspection and Resetting the Window Motor Limit Switch After Installation

Front Door Glass Inspection After Installation
- Check that the door glass is securely set into the glass run groove.

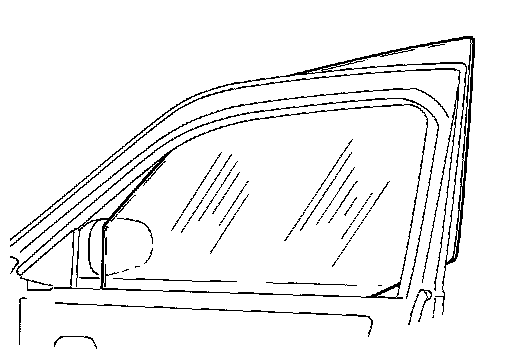

- Lower the door glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)] and check that the clearance to the sash is parallel. If the clearance between the door glass and sash is not parallel, loosen the regulator bolts, guide rail bolts, and door glass and guide rail bolts to correct the glass position.
NOTE:
If any of the following occur, initialization procedure must be performed. LH Only Anti-Pinch Sedan
- Electric power supply to power window switch or motor is interrupted by blown fuse or disconnecting battery cable, etc.
- Removal and installation of the regulator assembly.
- Removal and installation of the motor from the regulator assembly.
- Removal and installation of the harness connector of the power window switch.
- Operation of the regulator assembly as a unit.
- Removal and installation of the door glass.
- Removal and installation of the door glass run.
- Window is partly opened and or closed multiple times with out being fully closed.
