LH&RH Front Anti-Pinch-Coupe




FRONT POWER WINDOW SWITCH

Reference Value


TERMINAL LAYOUT

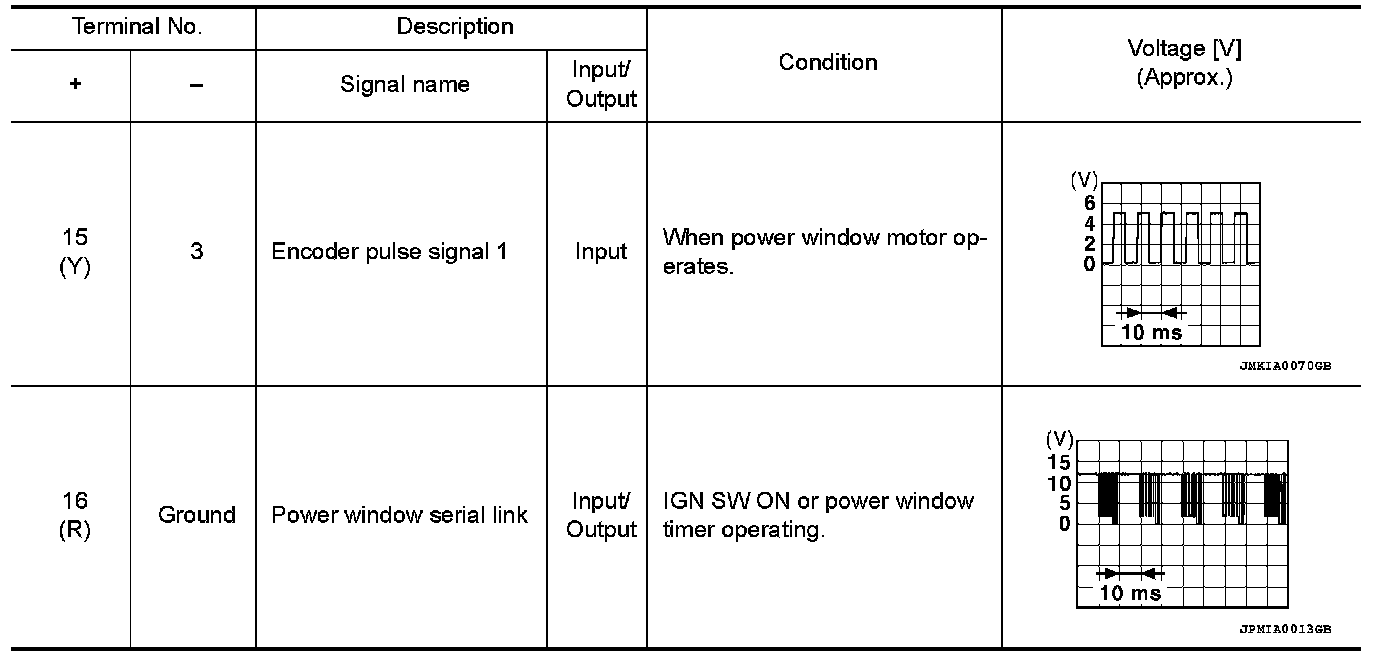

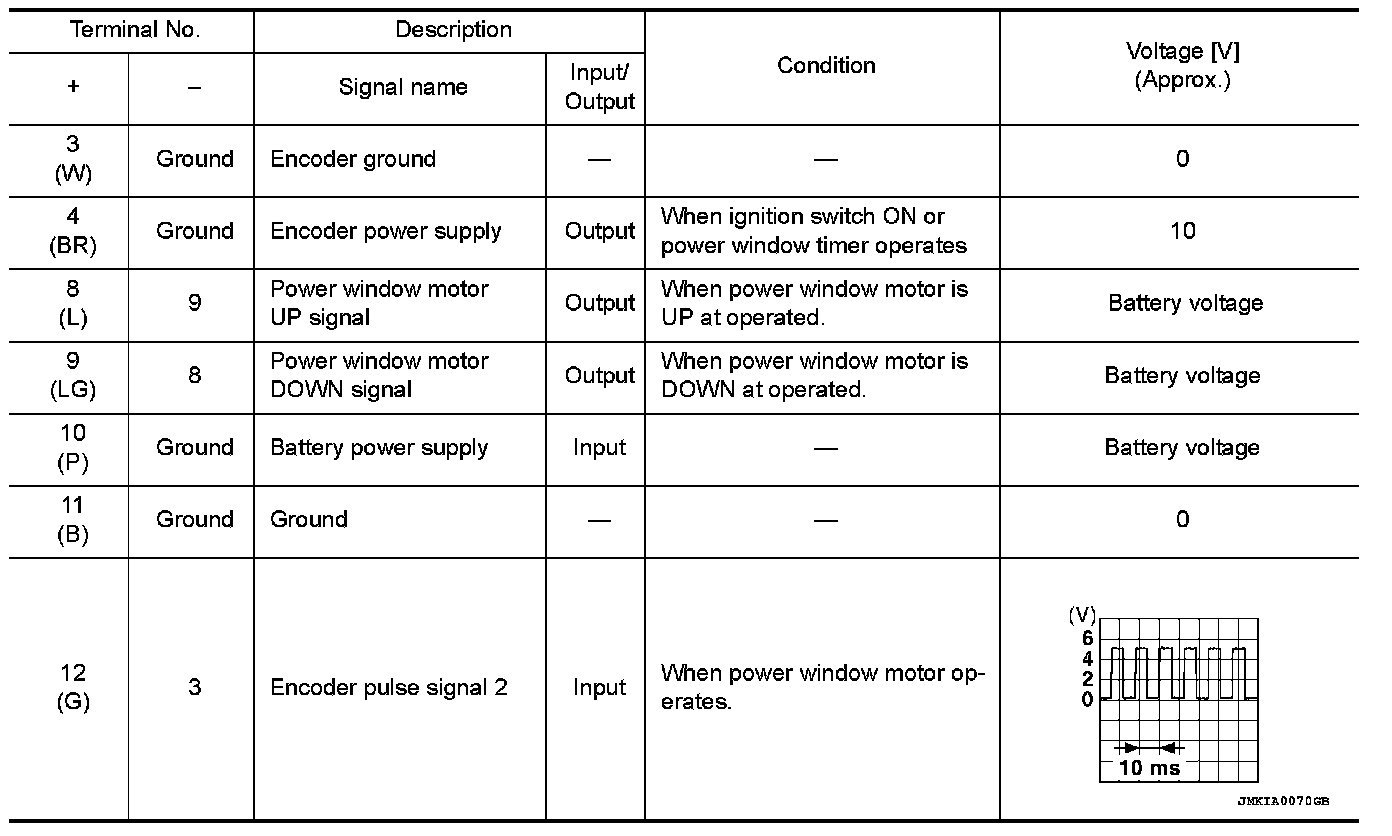

PHYSICAL VALUES

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH
