Diagnosis Procedure LH&RH Front Anti-Pinch Sedan

POWER WINDOW MOTOR

REAR RH : Diagnosis Procedure

Regarding Wiring Diagram information, Sedan With Left Front Only Power Window Anti- Pinch.

Rear Power Window Motor RH Circuit Check


1. CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL

1.Turn ignition switch OFF.
2.Disconnect rear power window motor RH.
3.Turn ignition switch ON.

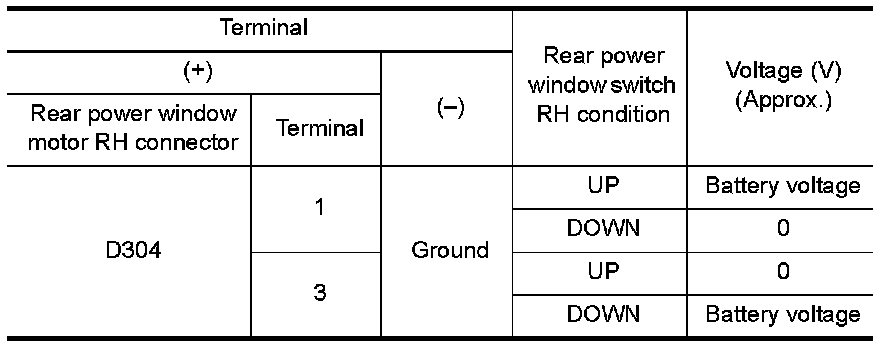

4.Check voltage between rear power window motor RH connector and ground.





Is the measurement value within the specification?
YES- GO TO 3
NO- GO TO 2

2. CHECK HARNESS CONTINUITY


1.Turn ignition switch OFF.
2.Disconnect rear power window switch RH.
3.Check continuity between rear power window switch RH connector (A) and rear power window motor RH connector (B).





4.Check continuity between rear power window switch RH connector (A) and ground.





Is the inspection result normal?
YES- Check rear power window switch RH. Component Inspection LH&RH Front Anti-Pinch Sedan.
NO- Repair or replace harness.

3. CHECK REAR POWER WINDOW MOTOR RH

Check rear power window motor RH.
Component Inspection LH&RH Front Anti-Pinch Sedan.
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Replace rear power window motor RH. Removal And Installation.
