Diagnosis Procedure LH Only Anti-Pinch Sedan

POWER WINDOW MOTOR

REAR LH : Diagnosis Procedure

Regarding Wiring Diagram information, Sedan With Left And Right Front Power Window Anti-Pinch.

Rear Power Window Motor LH Circuit Check


1. CHECK REAR POWER WINDOW SWITCH LH OUTPUT SIGNAL

1.Turn ignition switch OFF.
2.Disconnect rear power window motor LH.
3.Turn ignition switch ON.

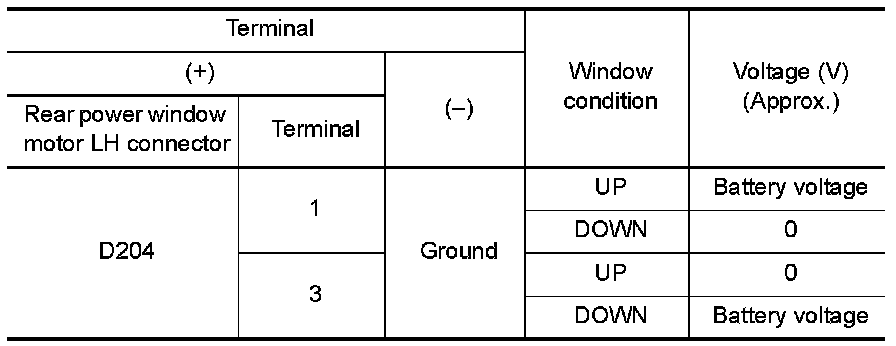

4.Check voltage between rear power window motor LH connector and ground.






Is the measurement value within the specification?
YES- GO TO 3
NO- GO TO 2

2. CHECK HARNESS CONTINUITY

1.Turn ignition switch OFF.
2.Disconnect rear power window switch LH.

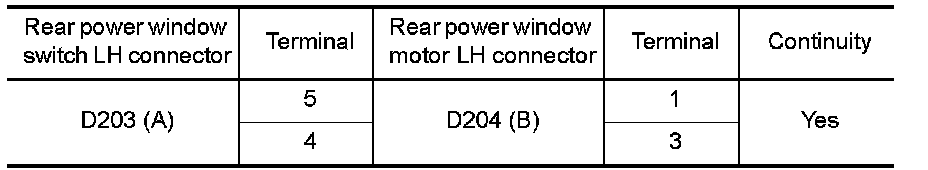

3.Check continuity between rear power window switch LH connector (A) and rear power window motor LH connector (B).

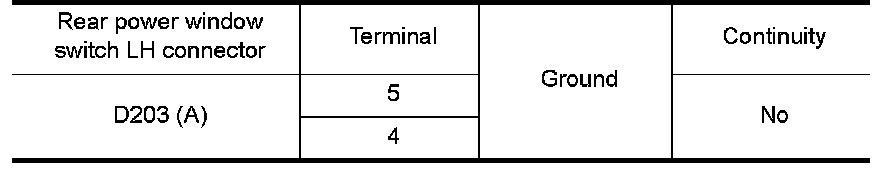

4.Check continuity between rear power window switch LH connector (A) and ground.





Is the inspection result normal?
YES- Check rear power window switch LH. Component Inspection LH Only Anti-Pinch Sedan.
NO- Repair or replace harness.

3. CHECK REAR POWER WINDOW MOTOR LH

Check rear power window motor LH.
Component Inspection LH Only Anti-Pinch Sedan.
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Replace rear power window motor LH. Removal And Installation.
