Diagnosis Procedure LH & RH Front Anti-Pinch-Coupe

POWER WINDOW MOTOR

PASSENGER SIDE : Diagnosis Procedure

Regarding Wiring Diagram information, Coupe With Left And Right Power Window Anti-Pinch.

Power Window Motor RH Circuit Check


1. CHECK POWER WINDOW SWITCH RH OUTPUT SIGNAL

1.Turn ignition switch OFF.
2.Disconnect power window motor RH.
3.Turn ignition switch ON.
4.Check voltage between power window motor RH connector and ground.





Is the measurement value within the specification?
YES- GO TO 3
NO- GO TO 2

2. CHECK HARNESS CONTINUITY

1.Turn ignition switch OFF.
2.Disconnect power window and door lock/unlock switch RH.

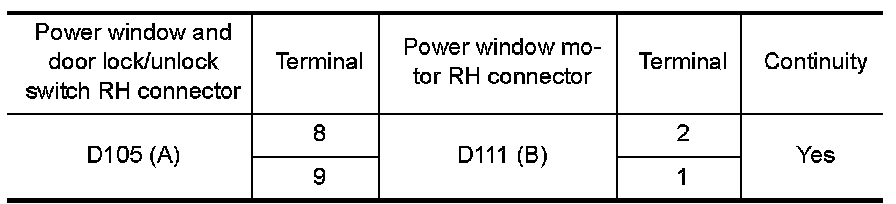

3.Check continuity between power window and door lock/unlock switch RH connector (A) and power window motor RH connector (B).





4.Check continuity between power window and door lock/unlock switch RH connector (A) and ground.





Is the inspection result normal?
YES- Replace power window and door lock/unlock switch RH. LH&RH Front Anti-Pinch Coupe. After that, Special Repair Requirement.
NO- Repair or replace harness.

3. CHECK POWER WINDOW MOTOR RH

Check power window motor RH.
Component Inspection LH&RH Front Anti-Pinch Coupe.
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Replace power window motor RH. Removal And Installation. After that, refer to
LH&RH Front Anti-Pinch Coupe.
