Component Inspection LH Only Anti-Pinch Sedan

POWER WINDOW MOTOR

PASSENGER SIDE : Component Inspection


COMPONENT INSPECTION


COMPONENT INSPECTION


1. CHECK FRONT POWER WINDOW MOTOR RH

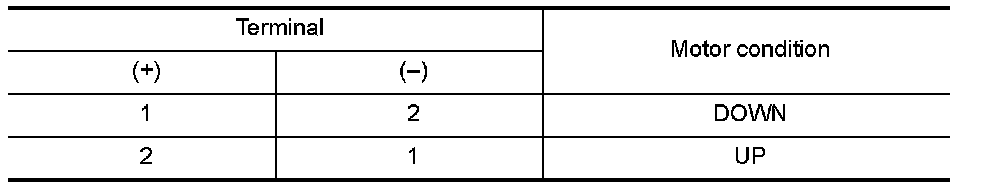

Check motor operation by connecting the battery voltage directly to front power window motor RH.





Is the inspection result normal?
YES- Power window motor is OK.
NO- Replace front power window motor RH. Removal And Installation.
