Component Inspection LH&RH Front Anti-Pinch Coupe

POWER WINDOW MOTOR

DRIVER SIDE : Component Inspection


COMPONENT INSPECTION


1. CHECK POWER WINDOW MOTOR LH

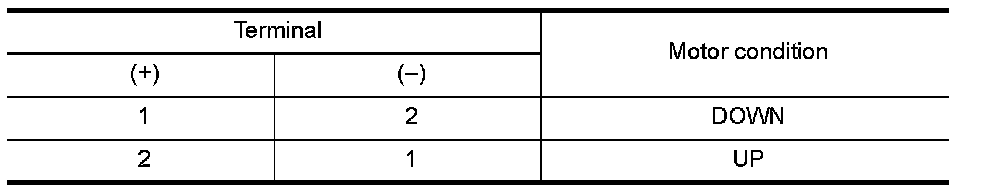

Check motor operation by connecting the battery voltage directly to power window motor.






Is the inspection result normal?
YES- Power window motor LH is OK.
NO- Replace power window motor LH. Removal And Installation. After that, refer to
LH&RH Front Anti-Pinch Coupe.
