Home >> Nissan-Datsun >> 2012 >> Altima L4-2.5L (QR25DE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Description and Operation >> Component Description LH Only Anti-Pinch Sedan

Component Description LH Only Anti-Pinch Sedan




POWER WINDOW SYSTEM

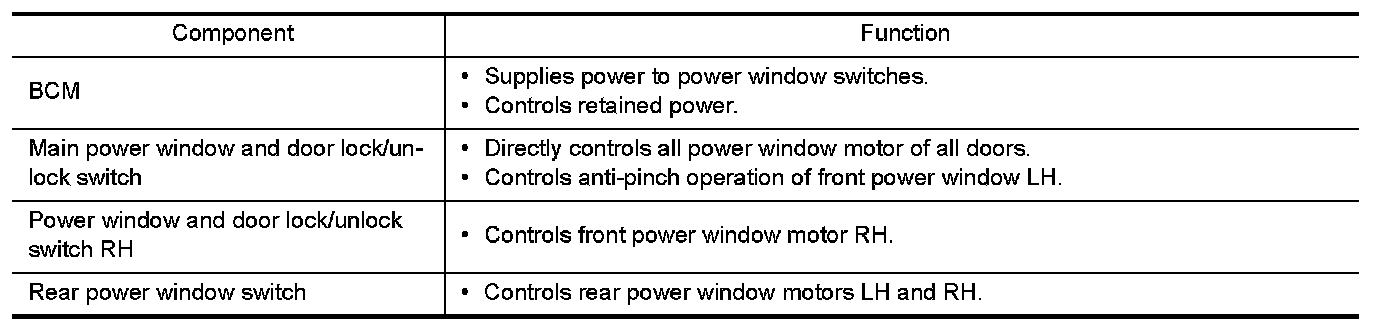

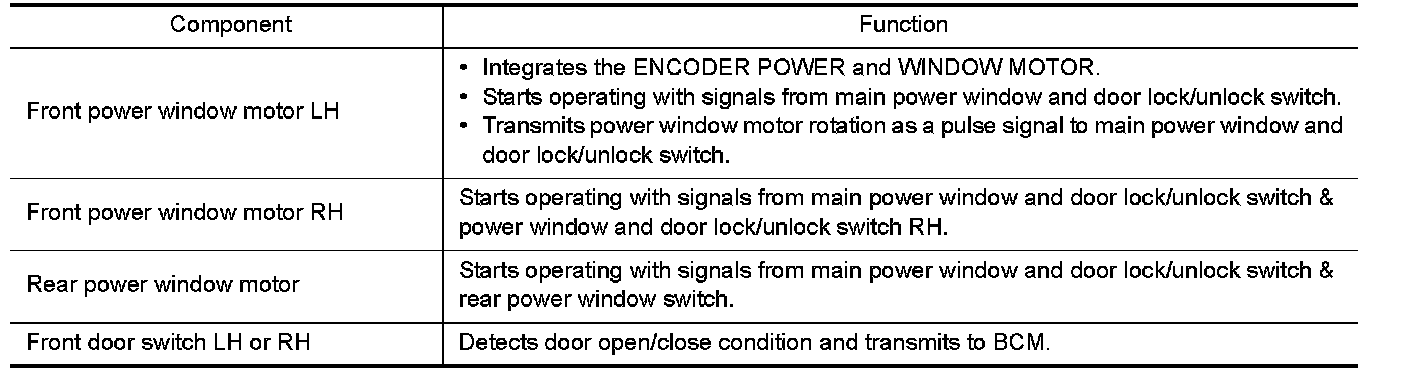

Component Description


FRONT POWER WINDOW LH ANTI-PINCH SYSTEM
