Removal And Installation

TRANSAXLE ASSEMBLY

Removal and Installation

CAUTION:
If transaxle assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylinder).
Inserted CSC returns to the original position when removing transaxle assembly. Dust on clutch disc sliding parts may damage CSC seal and may cause clutch fluid leakage.

REMOVAL

1.Remove the engine and transaxle as an assembly. Removal and Replacement (QR25DE), Removal and Replacement (VQ35DE).

CAUTION:
Do not depress clutch pedal during removal procedure.
2.Disconnect the electrical connectors from the following:
- Back-up lamp switch
- Transmission range switch
3.Remove the harness from the transaxle.
4.Remove the starter motor. Service and Repair (QR25DE), Service and Repair (VQ35DE).
5.Remove the transaxle to engine and engine to transaxle bolts.
6.Separate the transaxle from the engine.
7.If necessary remove the following:
- Air breather hose
- Switches
- LH engine mount
- Brackets

INSTALLATION

Installation is in the reverse order of removal.
- If transaxle is removed from the vehicle, always replace CSC. Removal and Installation.
- When installing the transaxle assembly to the engine, install the bolts following the standard below.

CAUTION:

When installing transaxle assembly do not bring transaxle input shaft into contact with clutch cover.

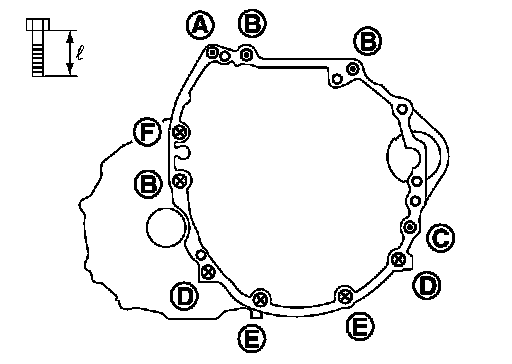

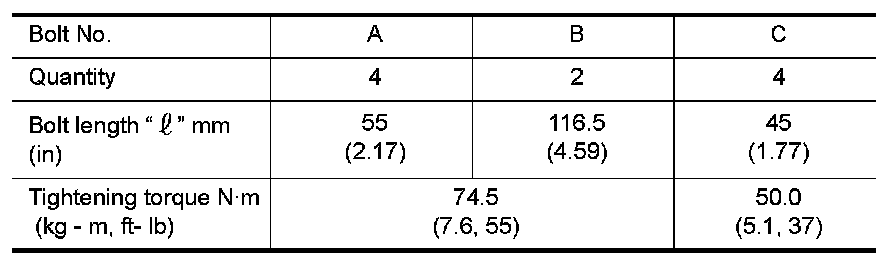

- QR25DE engine models














- VQ35DE engine models














- Bleed the air from the clutch hydraulic system. Service and Repair.
- After installation, check oil level, and check for leaks and loose mechanisms. Inspection.
