Inspection

SHIFT FORK AND FORK ROD

Inspection

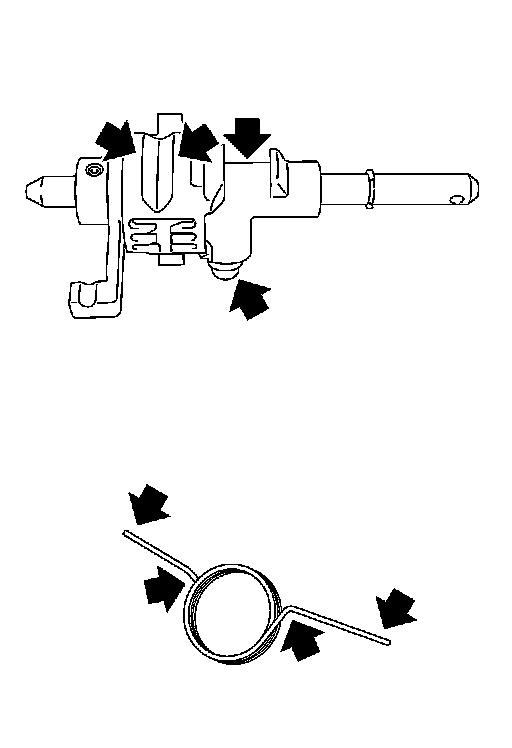

STRIKING ROD ASSEMBLY AND RETURN SPRING






- Check contact surfaces and sliding area for wear, damage, bending, etc. If necessary, replace parts.

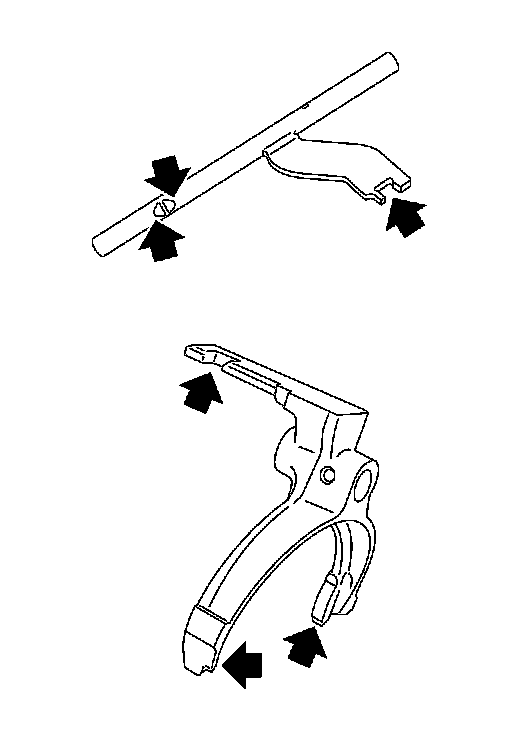

FORK ROD AND SHIFT FORK






- Check contact surfaces and sliding area for wear, damage, bending, etc. If necessary, replace parts.

SHIFT FORK






- Check if the width of shift fork hook (sliding area with coupling sleeve) is within allowable specification below.
