Assembly

SHIFT FORK AND FORK ROD

Assembly

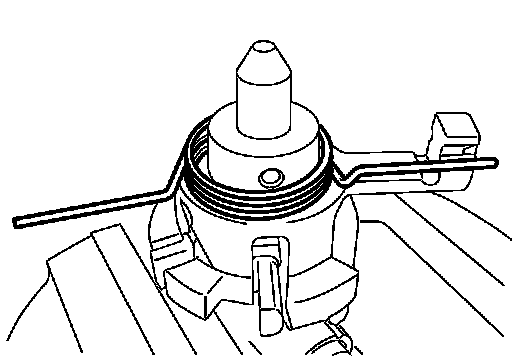

1.Temporarily install return spring to striking rod assembly.

CAUTION:
Be careful with the orientation of return spring.

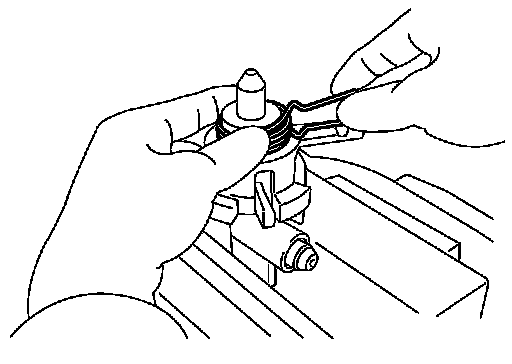

2.Attach one end of the return spring to striking interlock of striking rod assembly while holding return spring.

CAUTION:

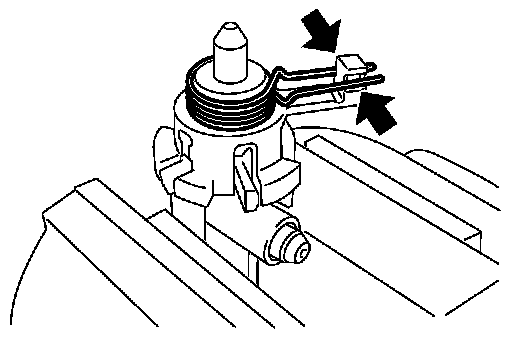

- When installing, check that return spring is securely seated in the groove of striking interlock of striking rod assembly.
