Disassembly

INPUT SHAFT AND GEAR

Disassembly

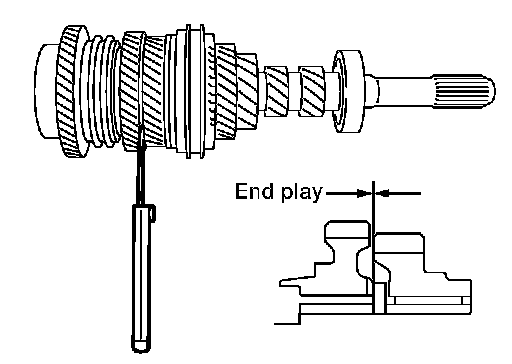

1.Before disassembling, measure end play for 3rd, 4th, 5th, and
6th input gears.
End play standard value: End Play.
2.Remove oil channel.

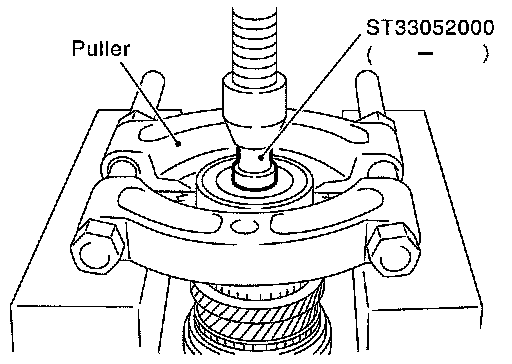

3.Press out input shaft rear bearing using Tool and a puller.
Tool number: ST33052000 (-)
4.Remove snap ring.

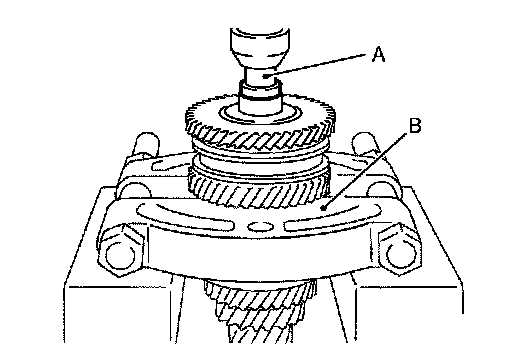

5.Press out 6th input gear, 6th needle bearing, 6th input gear bushing, 5th-6th synchronizer hub assembly, and 5th input gear using Tool (A) and a puller (B).
Tool number: ST33052000 (-)
6.Remove 5th needle bearing.

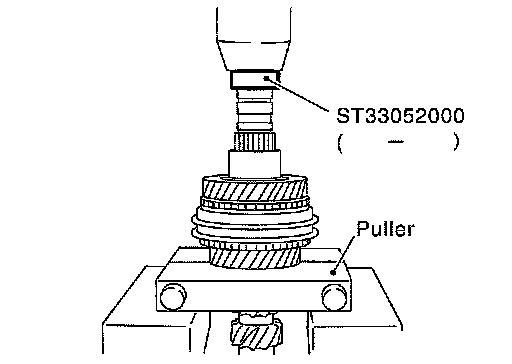

7.Press out 5th input gear bushing, thrust washer, 4th input gear, 4th needle bearing, 4th input gear bushing, 3rd-4th synchronizer hub assembly, and 3rd input gear using Tool and a puller.
Tool number: ST33052000 (-)
8.Remove 3rd needle bearing.

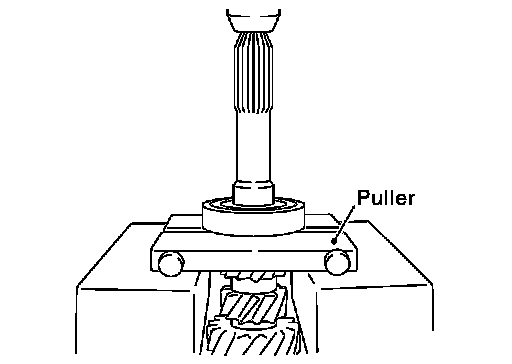

9.Press out input shaft front bearing using a puller.
