Seals and Gaskets: Service and Repair

SIDE OIL SEAL

Removal and Installation


REMOVAL

1.Remove the drive shaft. Removal And Installation Left Side, Removal And Installation Right Side.

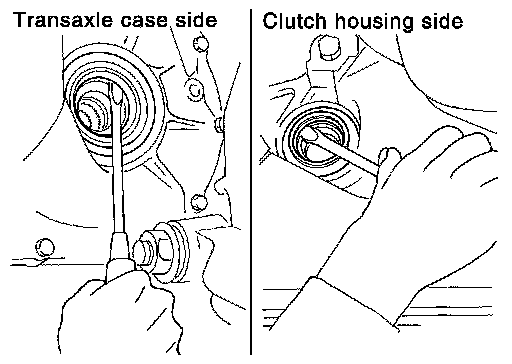

2.Remove oil seal using suitable tool.

CAUTION:
Do not damage the transaxle case surface when removing oil seal.

INSTALLATION

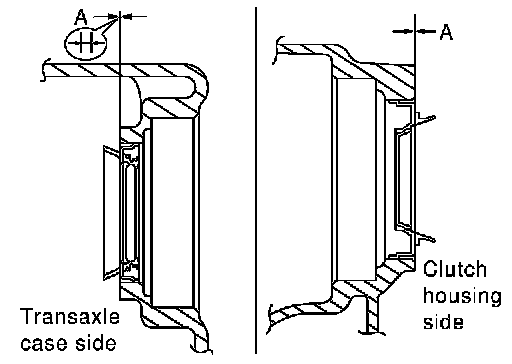

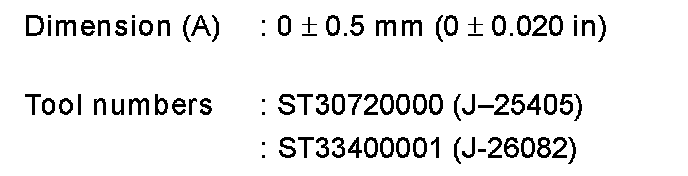

1.Drive the oil seal straight into the transaxle case and clutch housing to the specified dimension (A) using Tools.






CAUTION:
Do not reuse oil seal.
2.Install the drive shaft. Removal And Installation Left Side, Removal And Installation Right Side.
3.Check the transaxle fluid level. Inspection.
