Home
>>
Nissan-Datsun
>>
2012
>>
Altima L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Continuously Variable Transmission/Transaxle
>>
Shifter CVT
>>
Locations
>>
CVT RE0F10A
>>
Shift Mechanism Sedan
Shift Mechanism Sedan
SHIFT MECHANISM

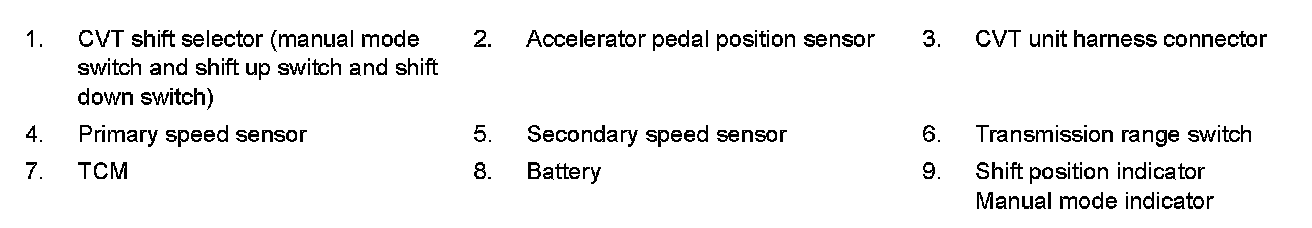

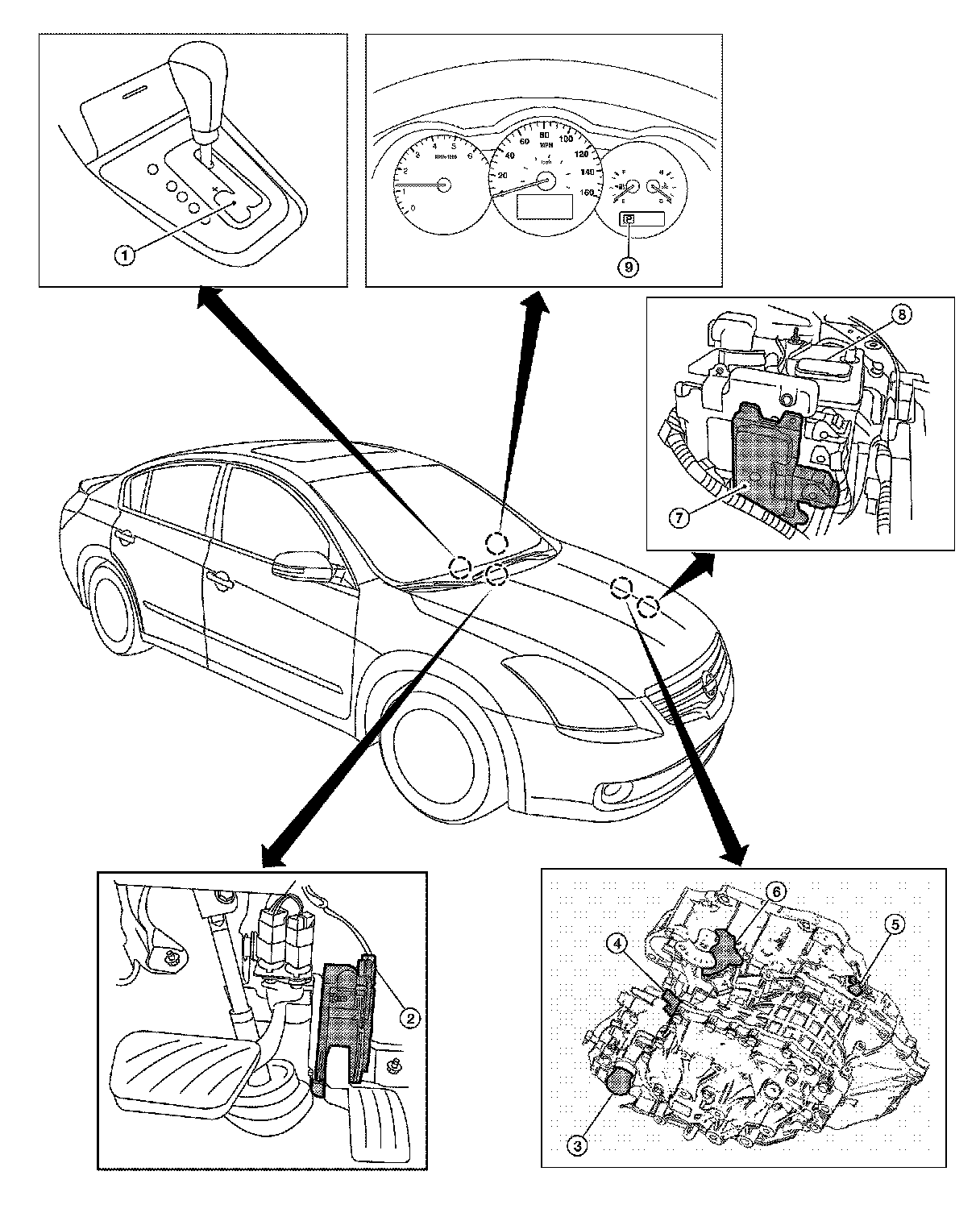

Component Parts Location - Sedan
