Inspection

TRANSAXLE ASSEMBLY

Inspection and Adjustment


INSPECTION BEFORE INSTALLATION

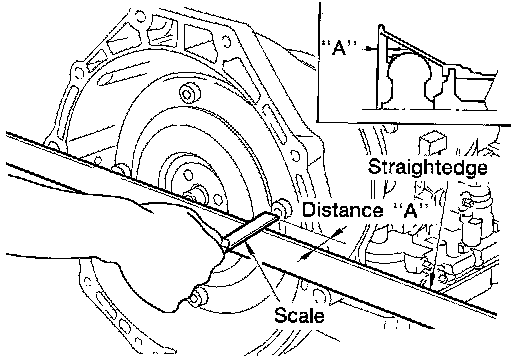

After inserting the torque converter to the CVT, be sure to check distance (A) to ensure it is within specifications.
Distance (A): 14.0 mm (0.55 in) or more


INSPECTION AFTER INSTALLATION

Check the following.
- Check for CVT fluid leakage and check CVT fluid level. Inspection.
- Check CVT position. Inspection.
- Start and warm up the engine. Visually check that there is no leakage of engine coolant and CVT fluid.

ADJUSTMENT AFTER INSTALLATION

Erase TCM data.
- Erase CVT fluid degradation level data. CONSULT Function.
- When replacing the transaxle assembly, erase EEP ROM in TCM. Programming and Relearning.
