Removal And Installation

DIFFERENTIAL SIDE OIL SEAL

Removal and Installation


REMOVAL






1.Remove drive shaft assembly. Removal And Installation Left Side (LH) and Removal And Installation Right Side (RH).
2.Remove the differential side oil seal using suitable tool

CAUTION:
Do not scratch transaxle case or converter housing.

INSTALLATION

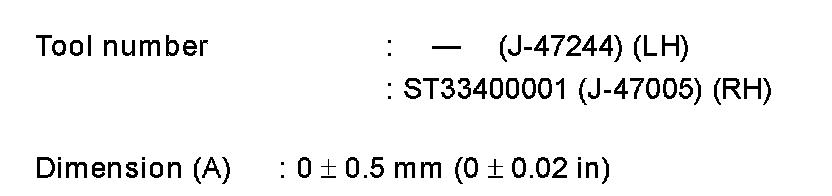

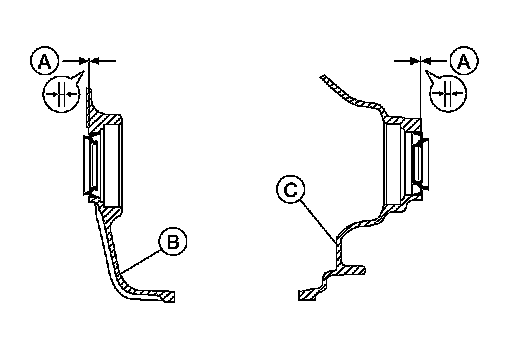

1.Drive the new differential side oil seal into the transaxle case side (B) and converter housing side (C) until it is flush using
Tools.






CAUTION:
- Do not reuse differential side oil seals.
- Apply specified NISSAN CVT fluid to side oil seals.
2.Install drive shaft assembly. Removal And Installation Left Side (LH) and Removal And Installation Right Side (RH).
3.Check CVT fluid level. Inspection.
