Rear Stabilizer

REAR STABILIZER

Removal and Installation


Removal

1.Remove wheel and tire using power tool.
2.Disconnect the stabilizer bar from connecting rod, using power tools.

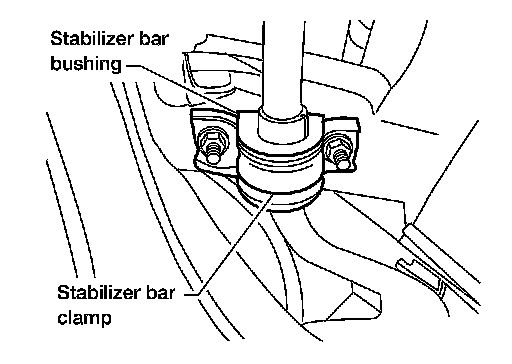

3.Remove the stabilizer bar clamp nuts using power tools.
4.Remove the stabilizer bar.

Installation

Installation is in the reverse order of removal.
- Tighten the wheel nuts to specification. Adjustment.
