Front Stabilizer

FRONT STABILIZER

Removal and Installation


REMOVAL

1.Remove steering gear. Removal And Installation.

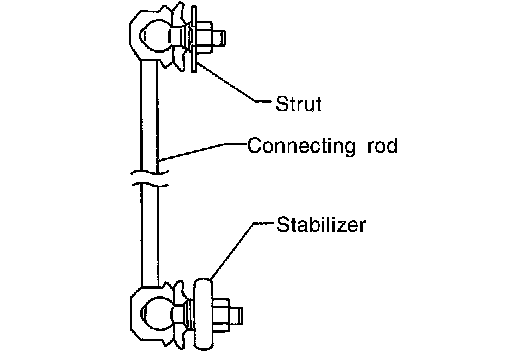

2.Remove mounting nuts on upper portion of stabilizer connecting rod.
FSU
3.Remove stabilizer clamp bolts.
4.Remove stabilizer from the vehicle.

INSPECTION AFTER REMOVAL

Check stabilizer, connecting rod, bushing and clamp for deformation, cracks and damage, and replace if necessary.

INSTALLATION

Installation is in the reverse order of removal.
- Exploded View for tightening torque.





- When installing stabilizer, make sure that the clamps are facing in the direction shown.
- Make sure the cut surface of the bushing faces the rear.

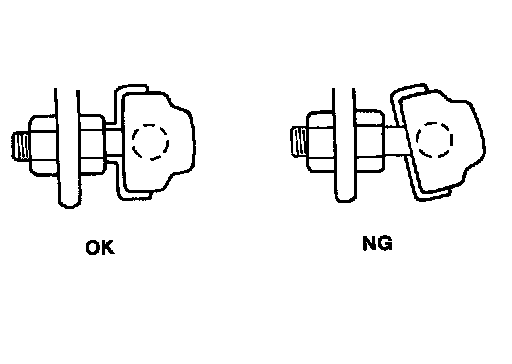

- Stabilizer uses pillow ball type connecting rod. Position ball joint with case on pillow ball head parallel to stabilizer.
