STEERING GEAR AND LINKAGE

Assembly

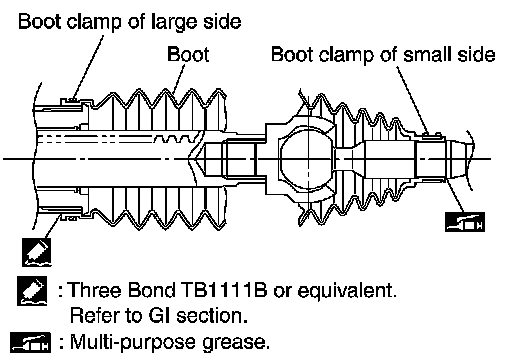

1.Apply Three Bound TB1111 or equivalent to inner socket and install to gear housing assembly. Tighten inner socket to specification. Exploded View.





2.Install large end of boot to gear housing assembly.
3.Install small end of boot to inner socket boot mounting groove.

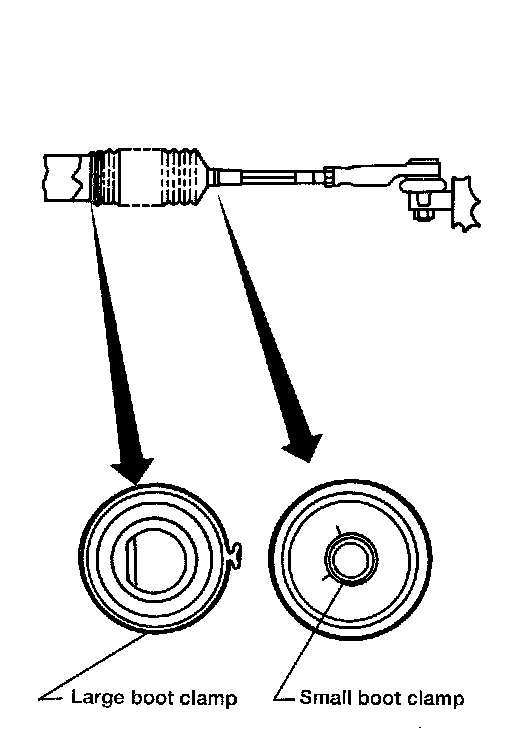

4.Install boot clamp to boot small end.
5.Install boot clamp to boot large end.
ST





6.Adjust inner socket to standard length (L), and then tighten lock nut to the specified torque. Exploded View.
Check length of inner socket (L) again after tightening lock nut.
Make sure that the length is the standard.
Inner socket length (L): [1][2]Specifications.

CAUTION:
Adjust toe-in after this procedure. Length achieved after toe-in adjustment should not be more than 98.3 mm max.
