Removal And Installation

HYDRAULIC LINE

QR25DE : Removal and Installation


REMOVAL

NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
Refer to the component parts location illustration for hydraulic line removal. Exploded View.

INSTALLATION






- Insert hose securely until it contacts tube spool.

CAUTION:
Do not apply fluid.
ST

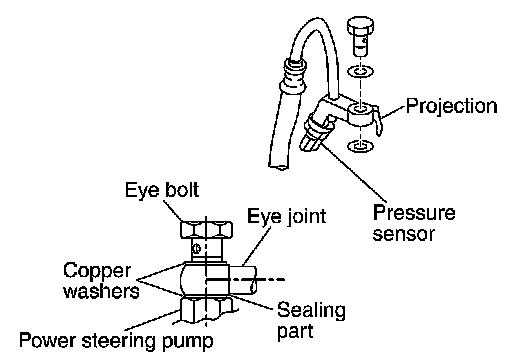

- Install eye-bolt with eye-joint (assembled to high-pressure hose) protrusion facing with pump side cutout, and then tighten it to the specified torque after tightening by hand.

CAUTION:
- Do not reuse O-rings or copper sealing washers.
- Securely insert harness connector to pressure sensor.
