Harmonic Balancer - Crankshaft Pulley

Tighten crankshaft pulley bolts.

Crankshaft bolt: 42.1 Nm (4.3 kg-m, 31 ft-lb)

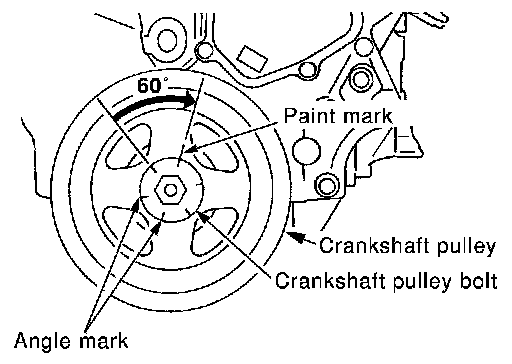

Apply a paint mark on the front cover, mating with any one of six easy to recognize stamp marks on bolt flange.

Turn crankshaft pulley bolt another 60� to 66� degrees [Target: 60� degrees]
