Home >> Nissan-Datsun >> 2012 >> Altima L4-2.5L (QR25DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Front Suspension >> Wheelarch Height (Unladen)

Wheelarch Height (Unladen)




SERVICE DATA AND SPECIFICATIONS (SDS)

Wheelarch Height (Unladen*1)

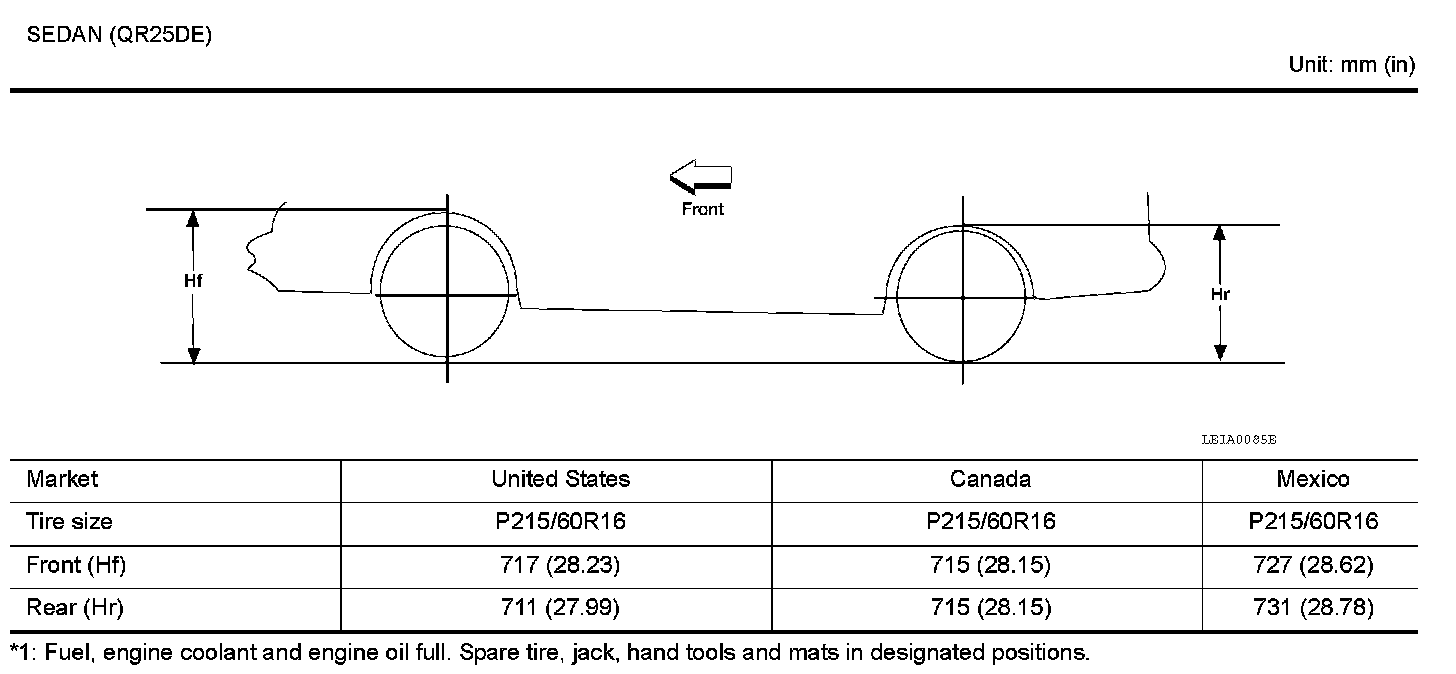

SEDAN (QR25DE)
Unit: mm (in)

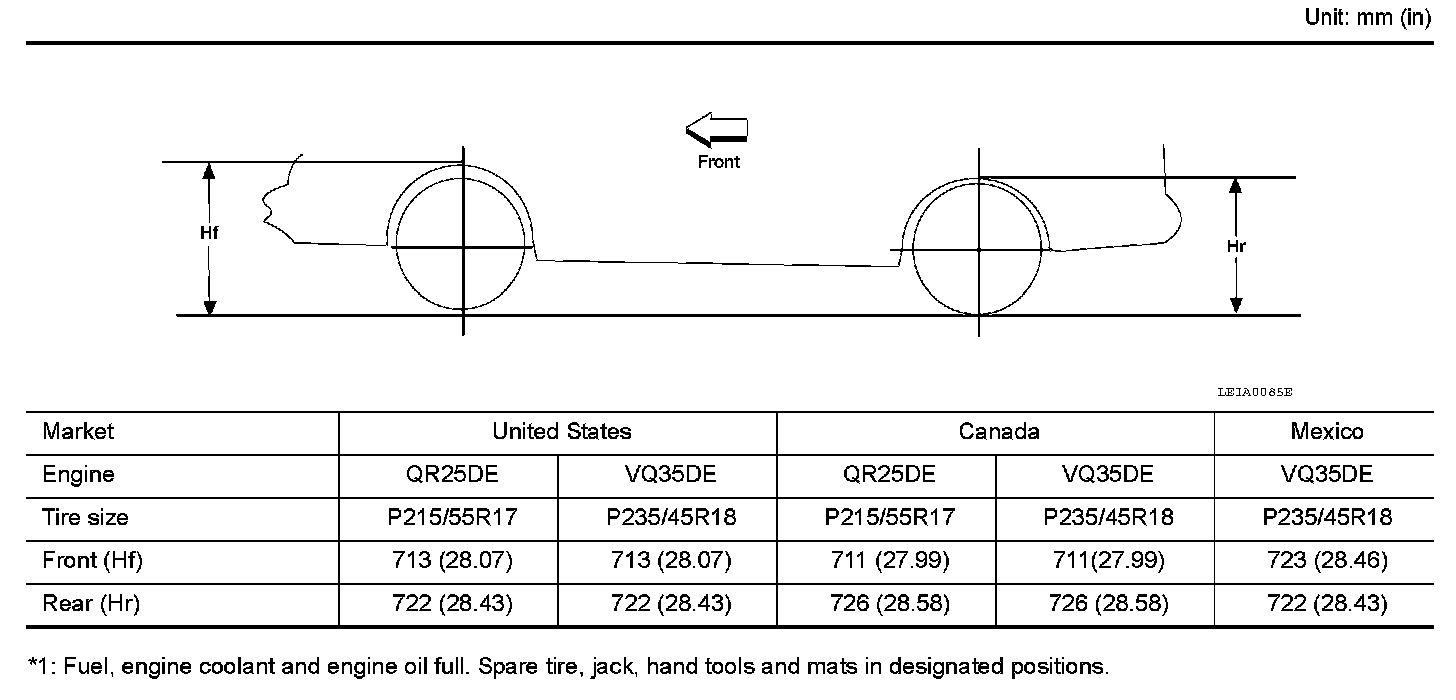

COUPE
Unit: mm (in)





FSU
