Bose Audio With Navigation




STEERING SWITCH

Removal and Installation


REMOVAL

1.Remove the driver airbag module. Removal And Installation.

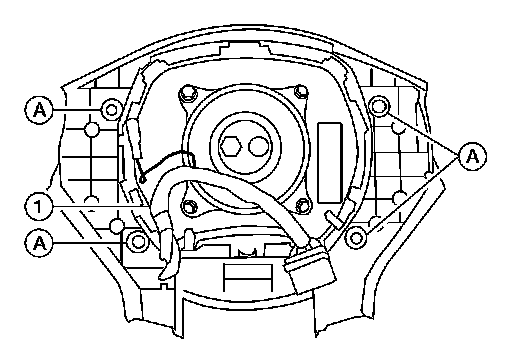

2.Remove the steering wheel audio control switch screws (A), then remove the steering wheel audio control switches (1).

INSTALLATION

Installation is in the reverse order of removal.
