Altima L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
CVT RE0F10A
CVT RE0F10A
SYSTEM SYMPTOM

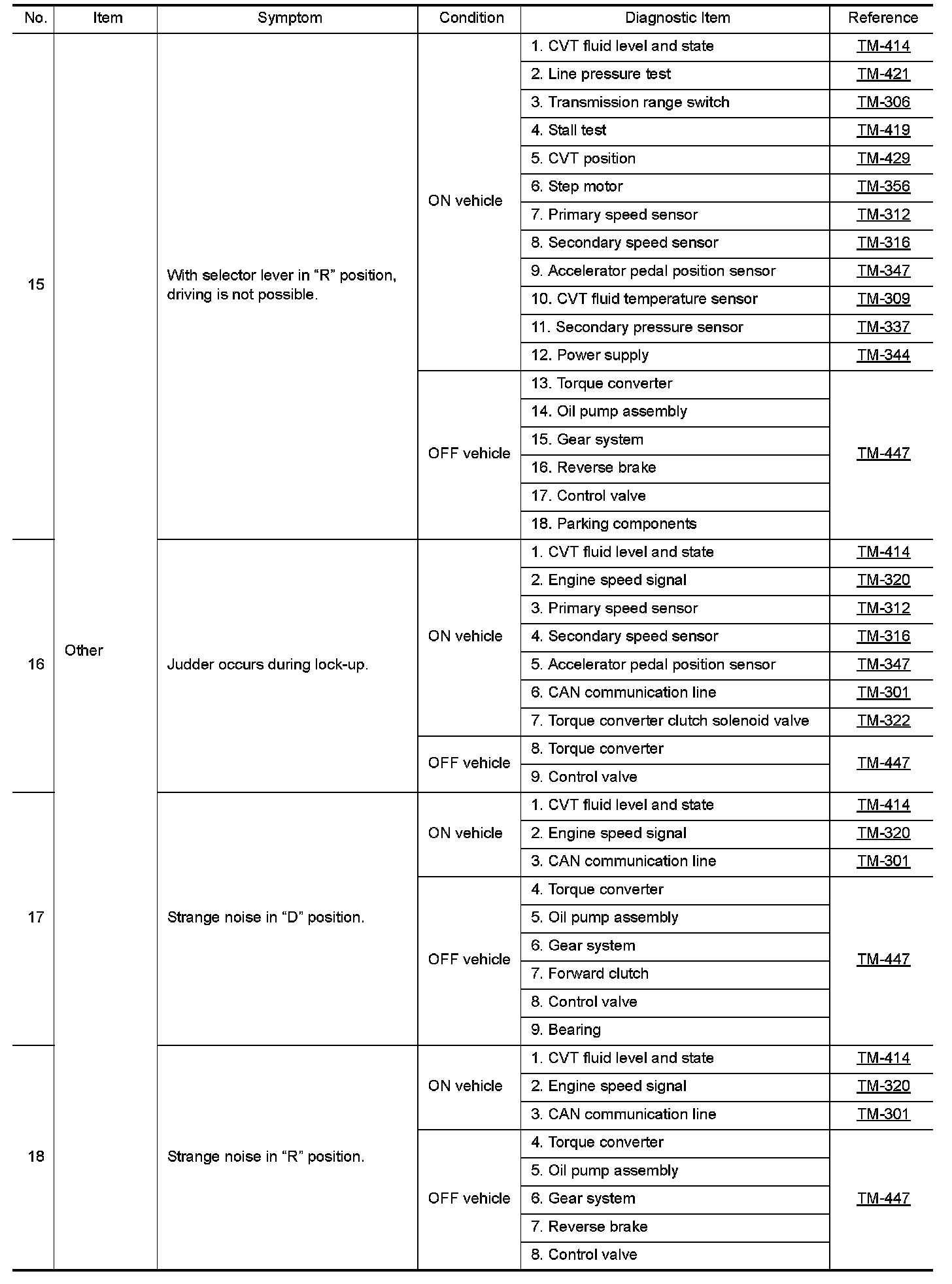

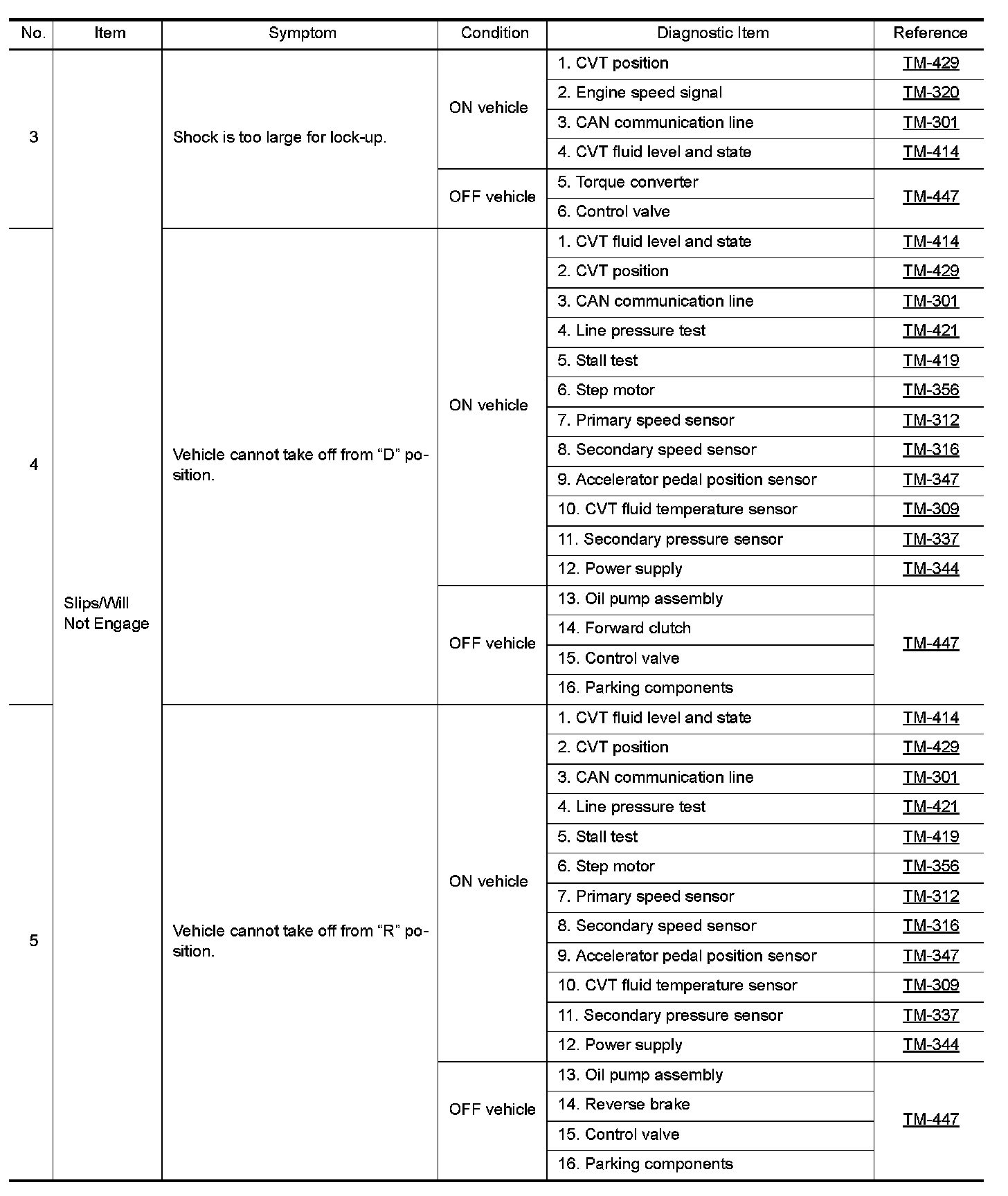

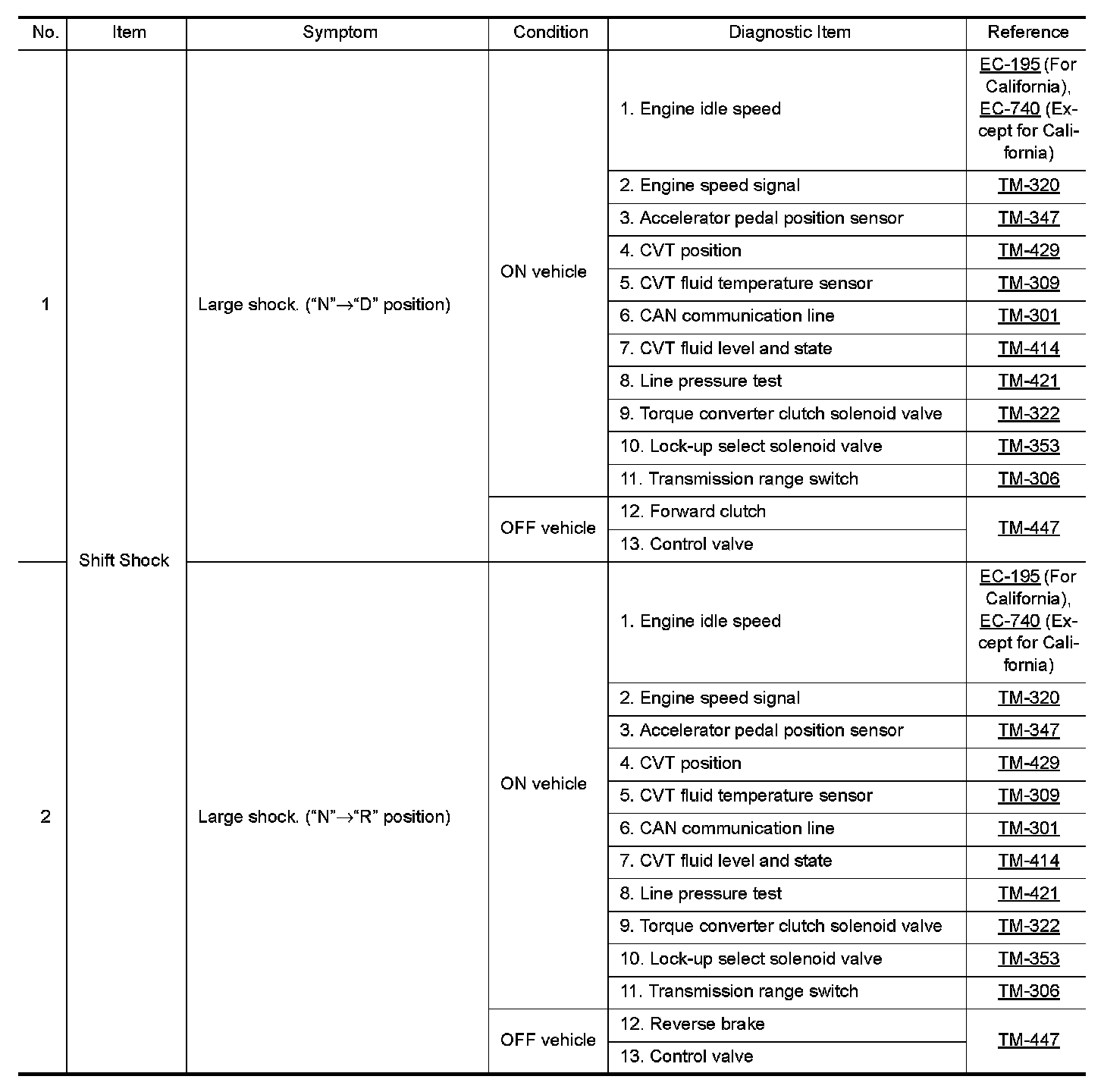

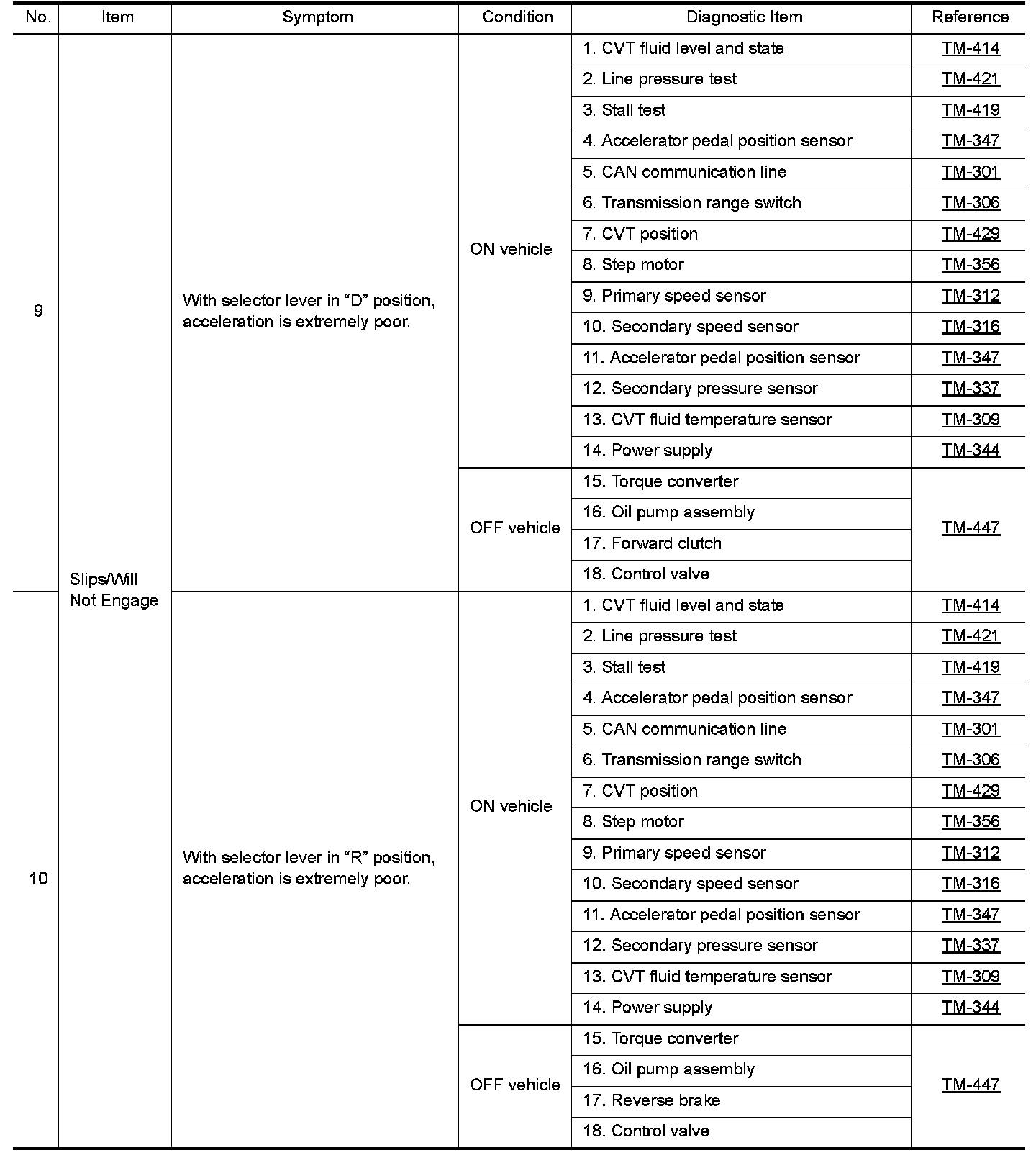

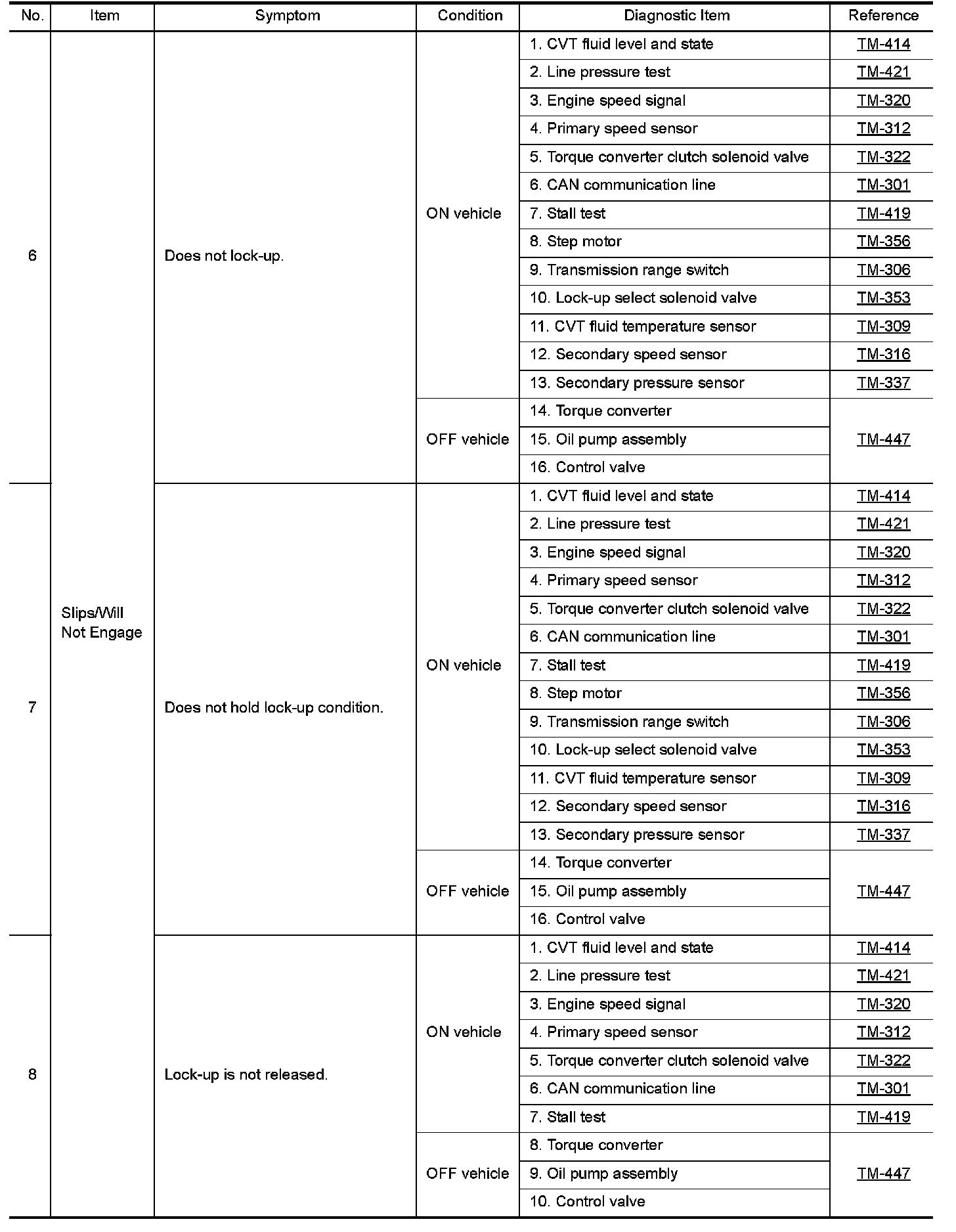

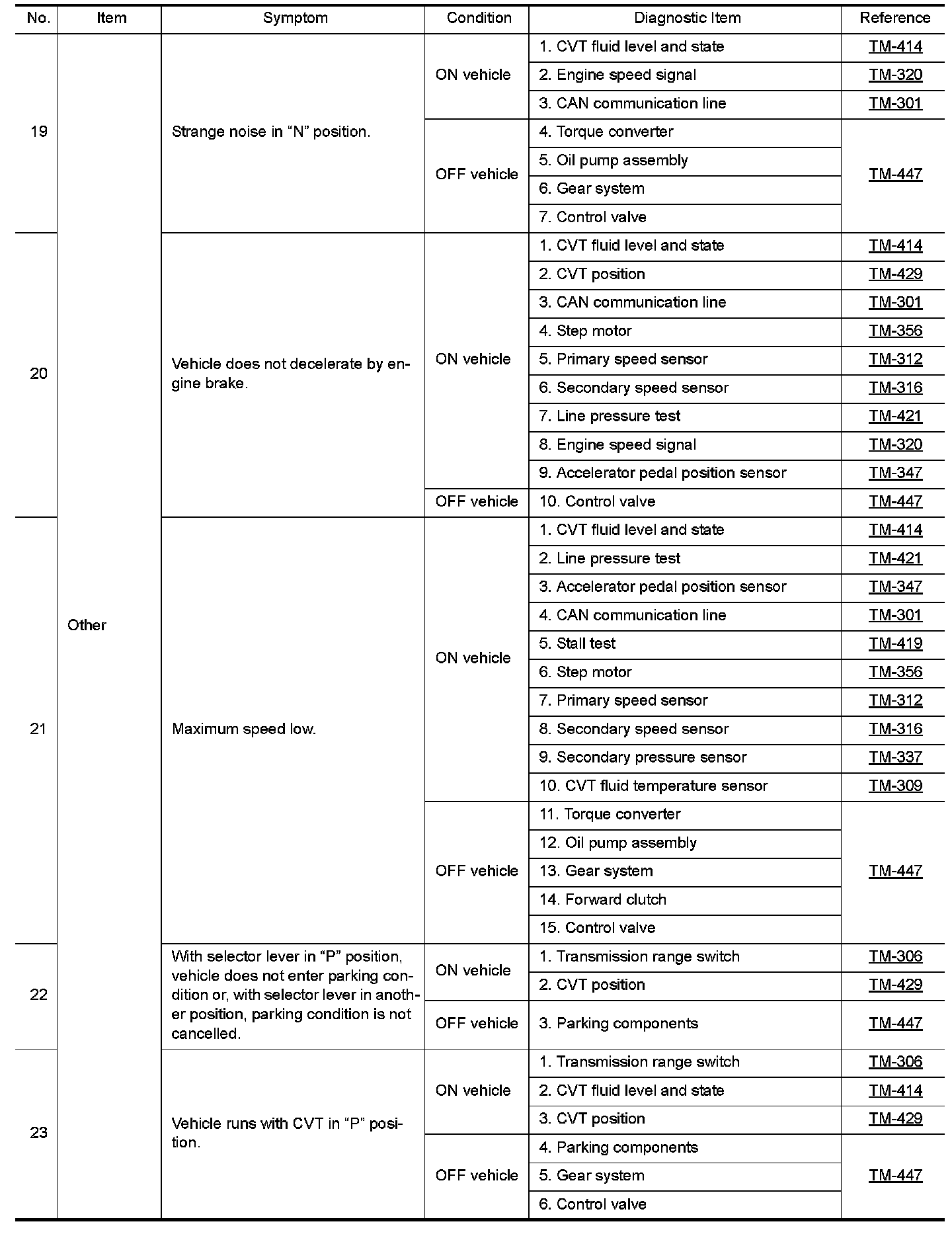

Symptom Table
The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.
