CVT RE0F09B
CVT RE0F09B
SYSTEM SYMPTOM

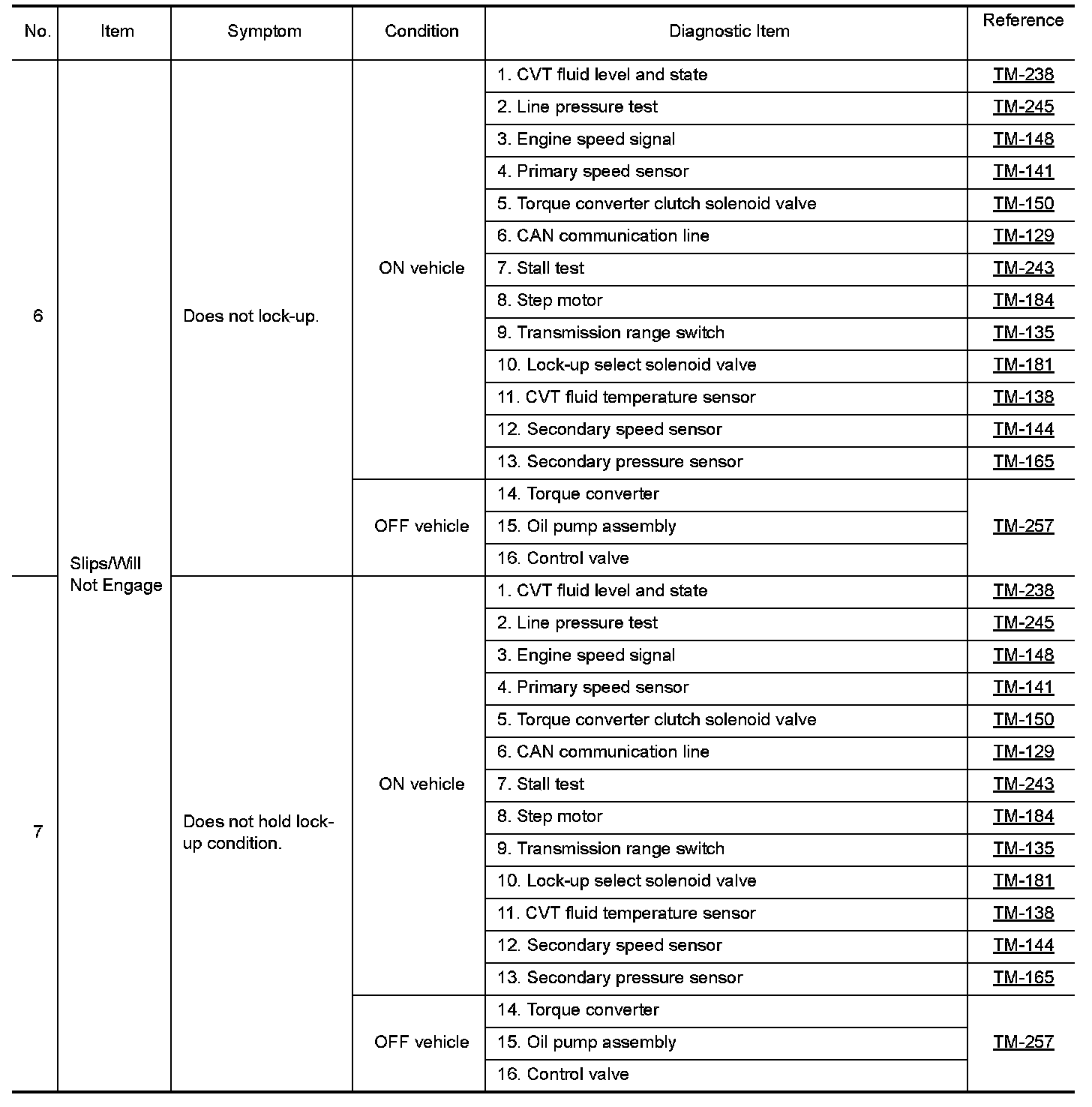

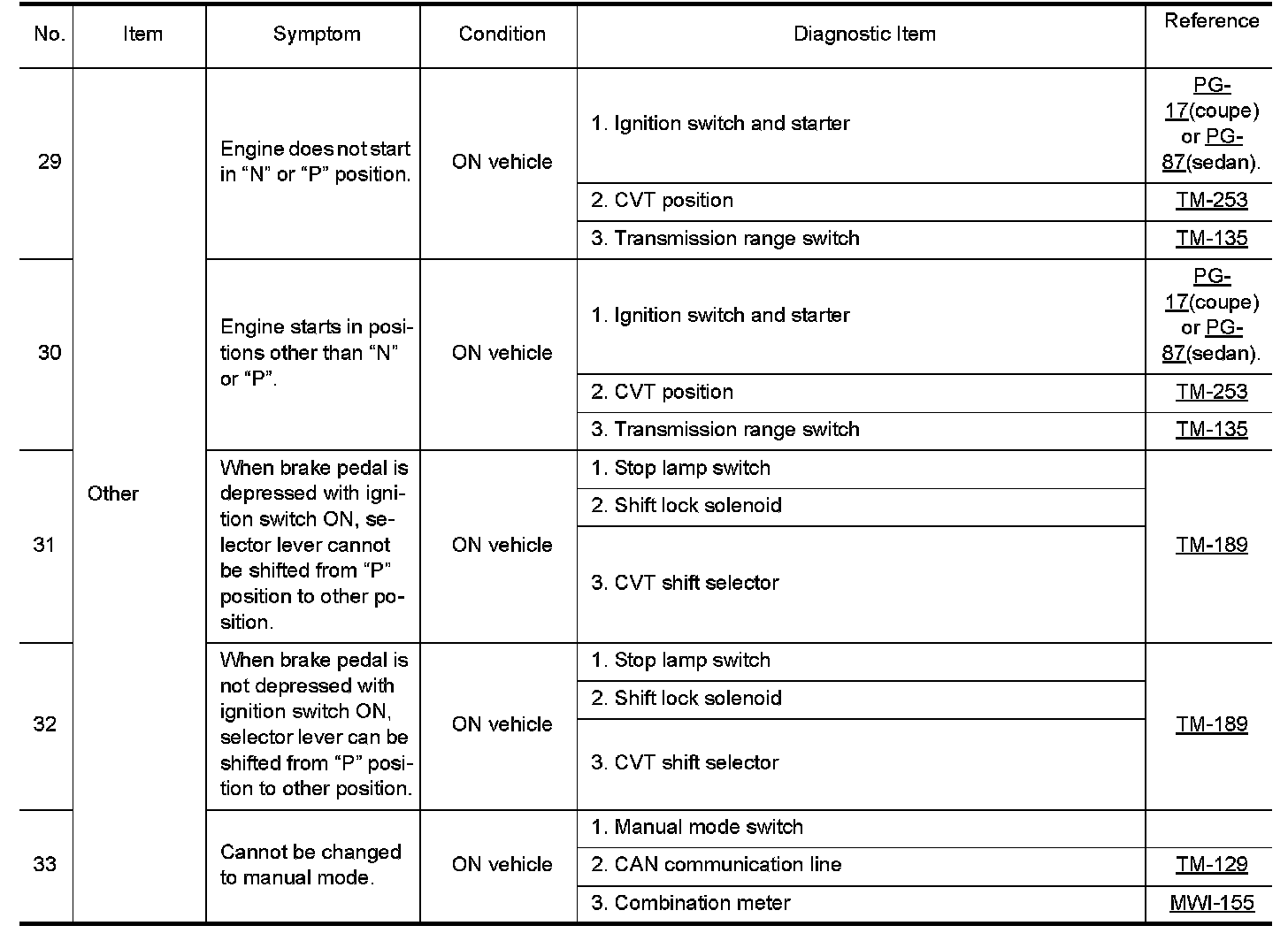

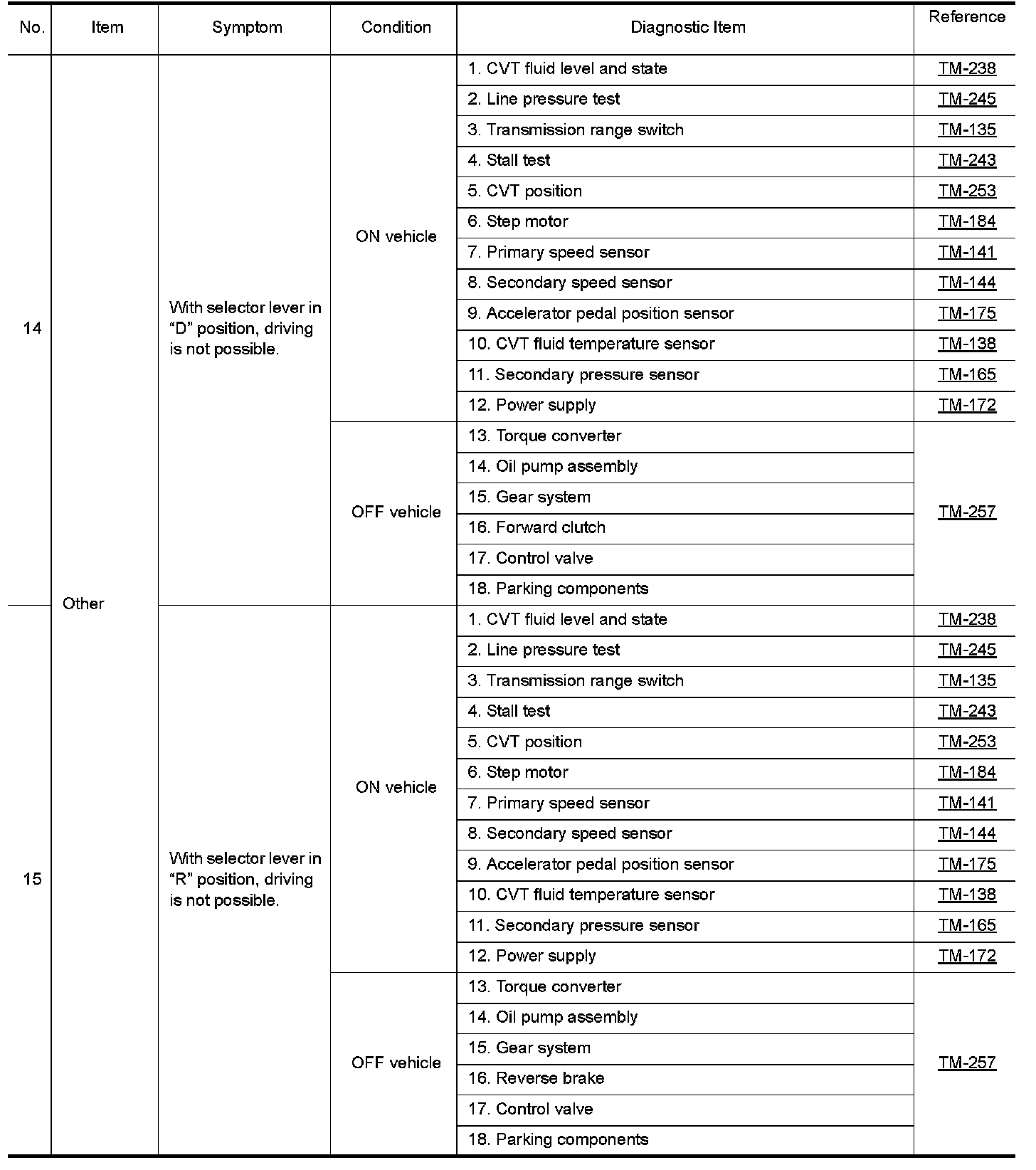

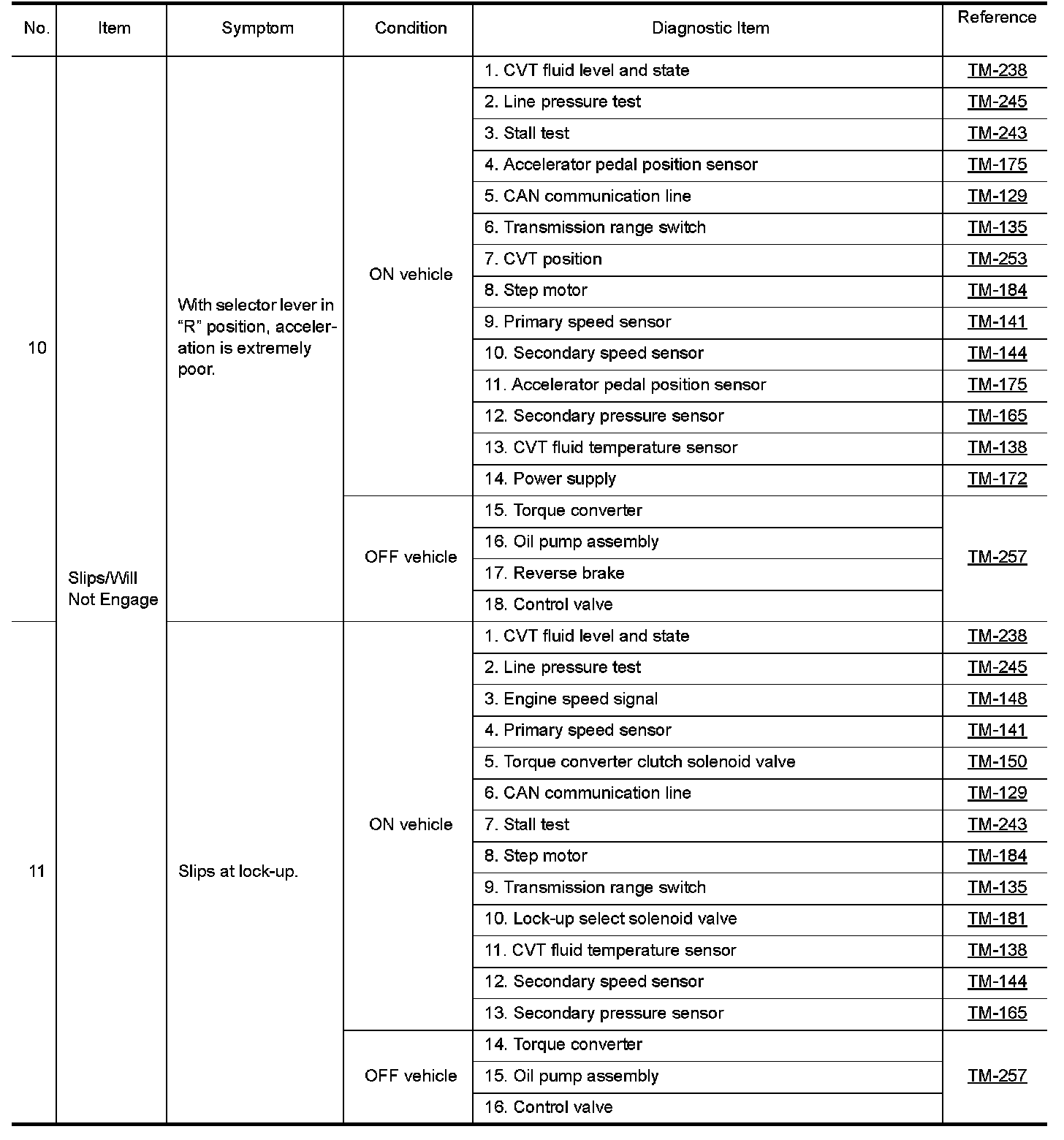

Symptom Table
The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.
