CVT RE0F10A




TCM

Reference Value

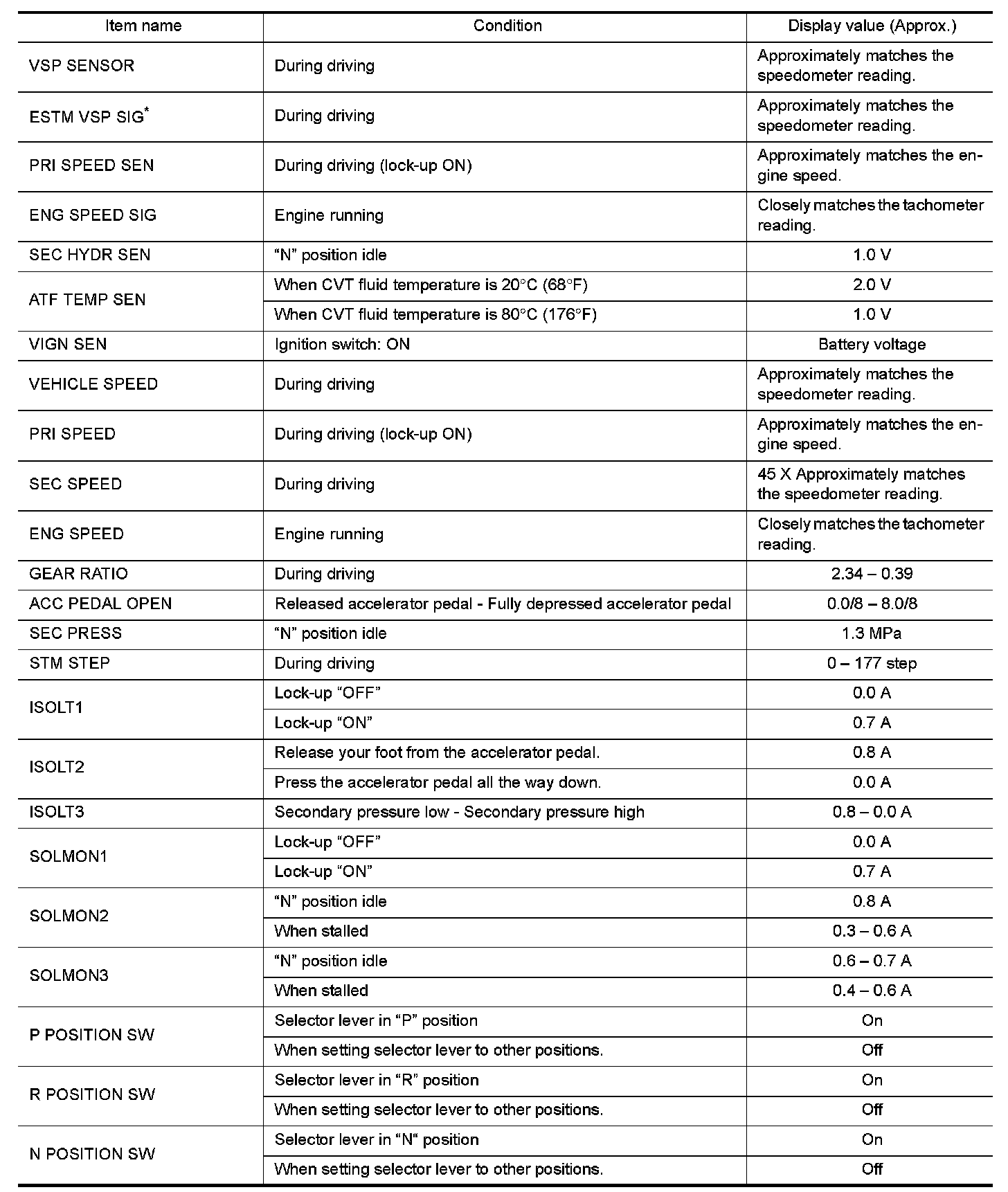

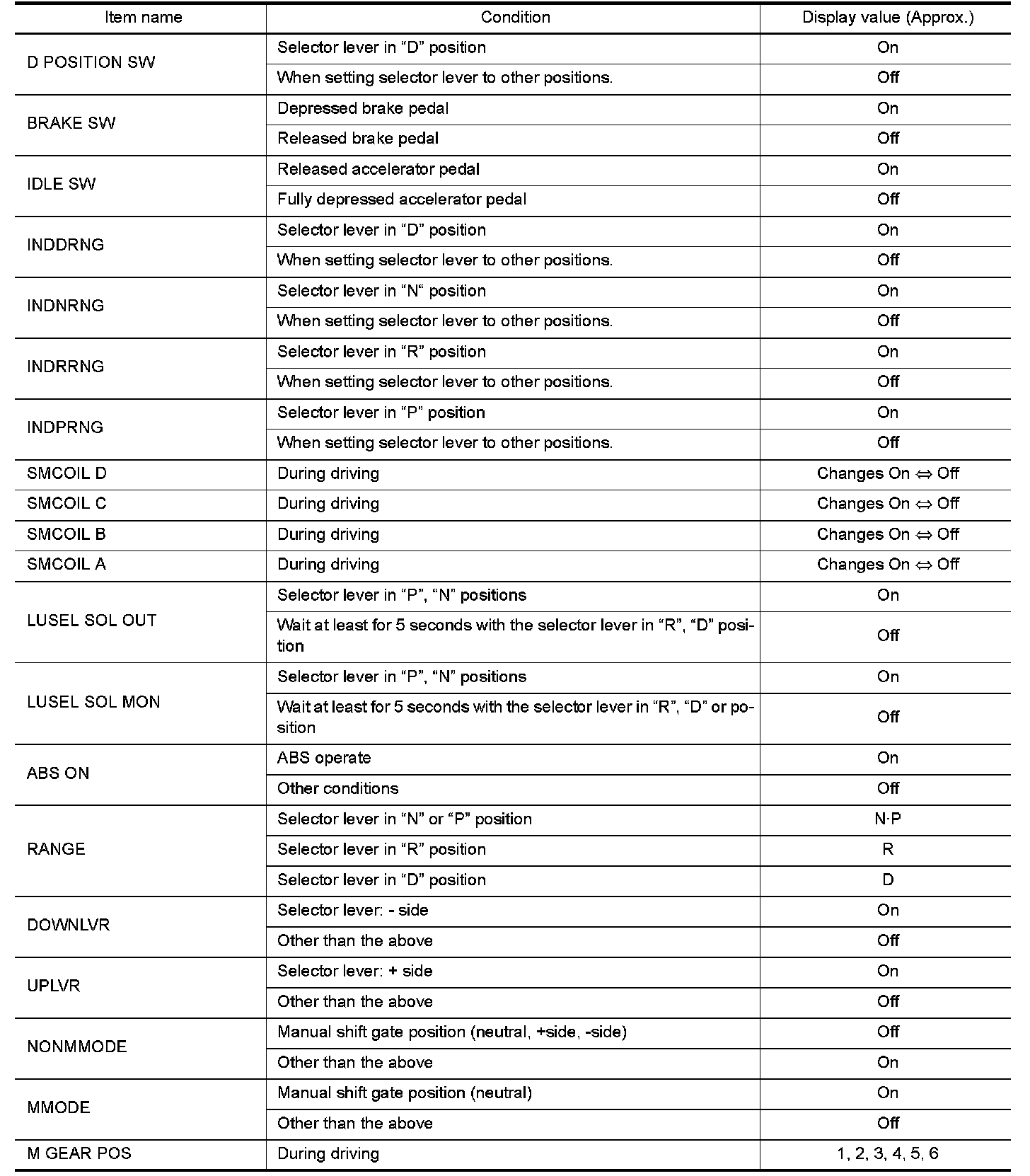

VALUES ON THE DIAGNOSIS TOOL












TERMINAL LAYOUT

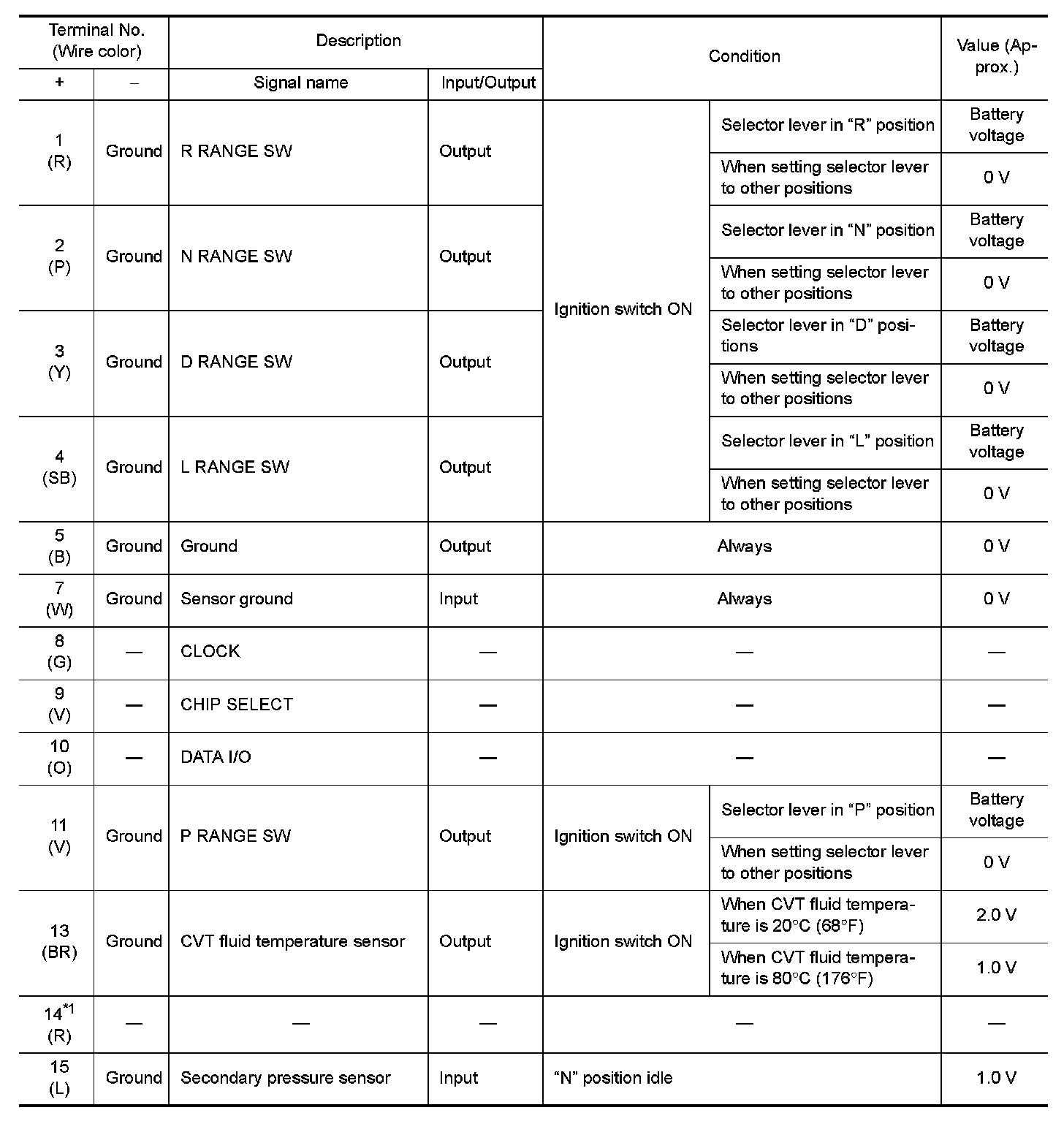

PHYSICAL VALUES
