Tumble Control Valve Control
Tumble Control Valve Control
TUMBLE CONTROL VALVE CONTROL

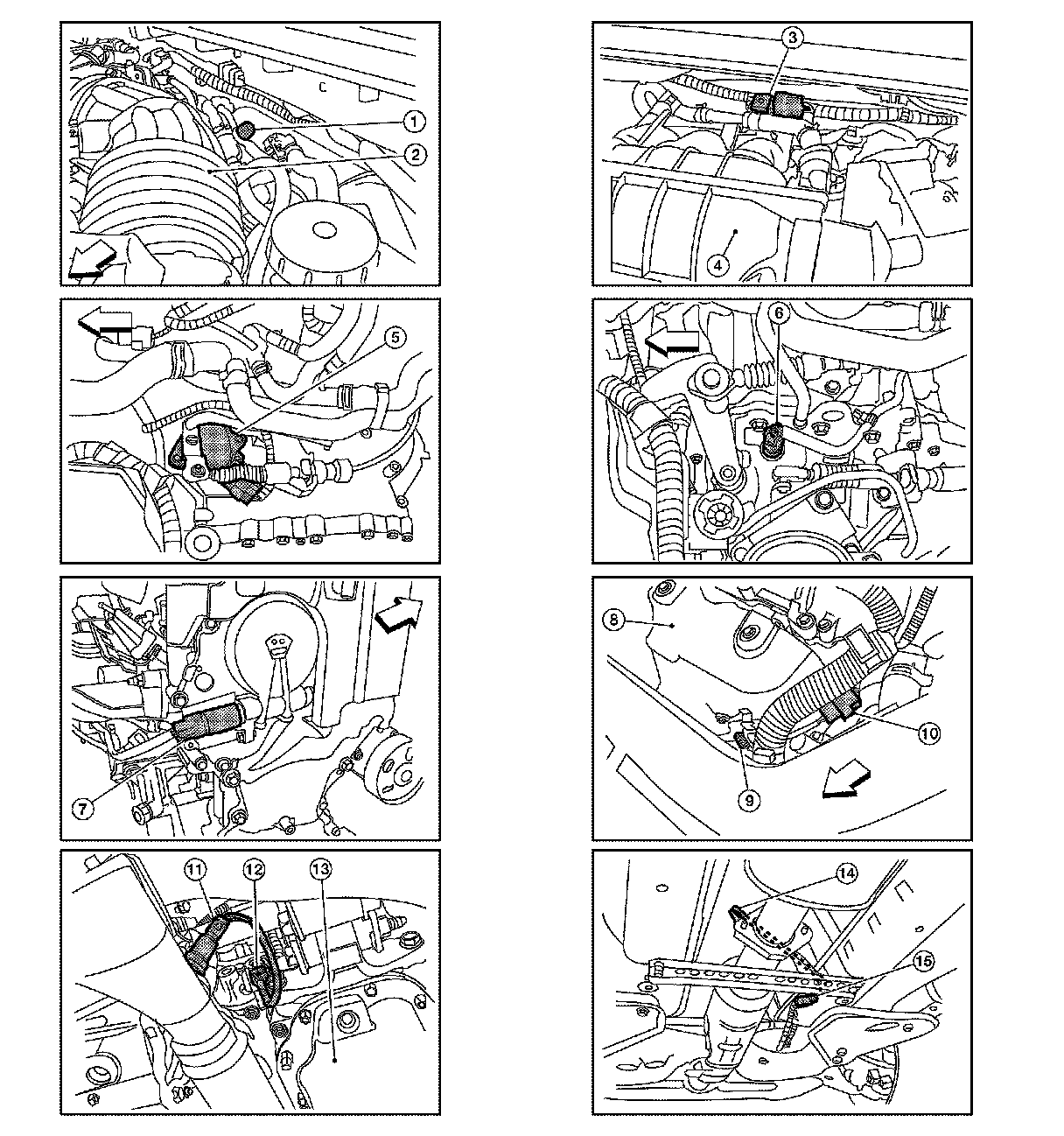

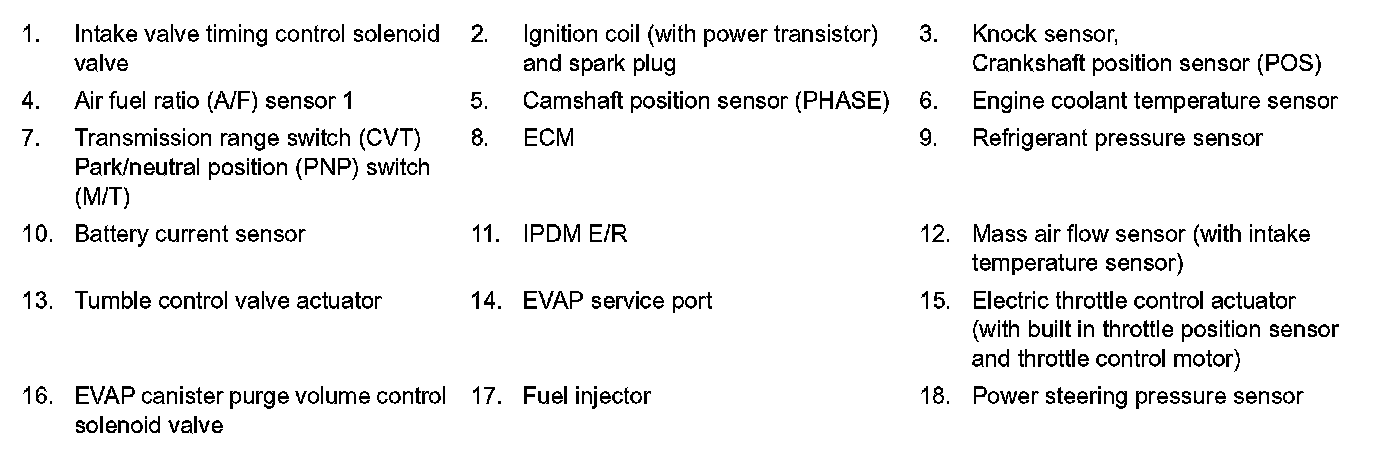

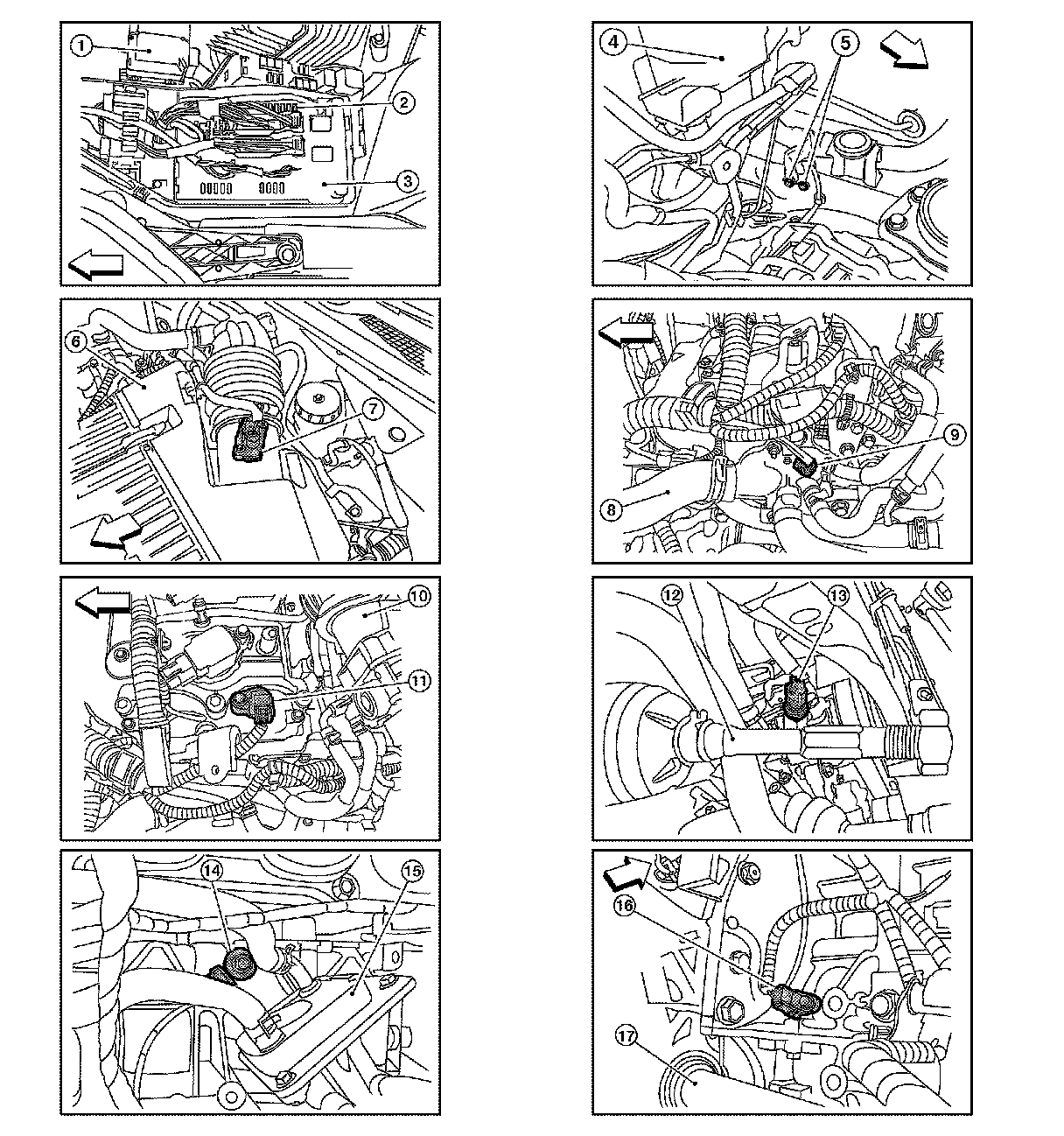

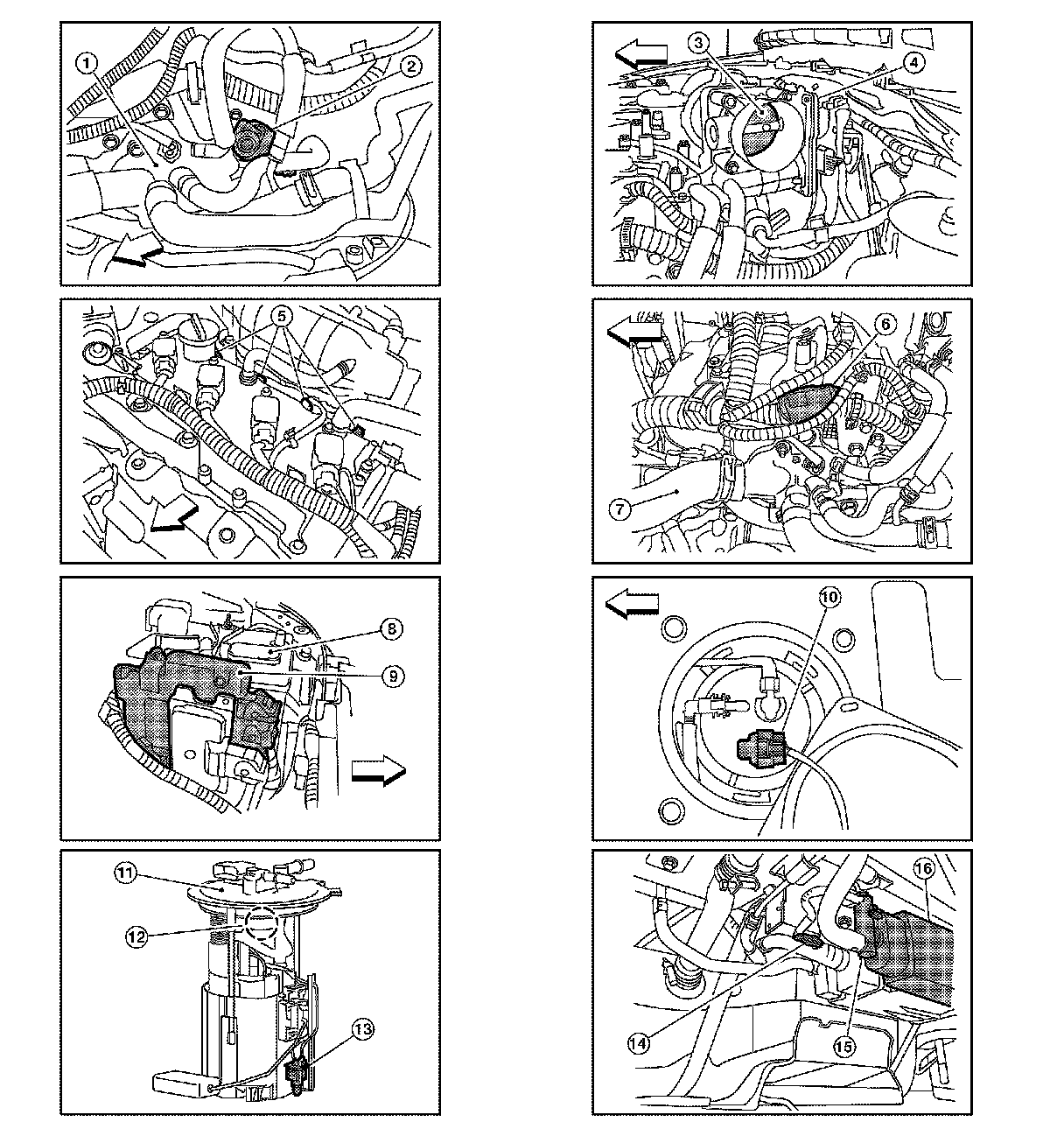

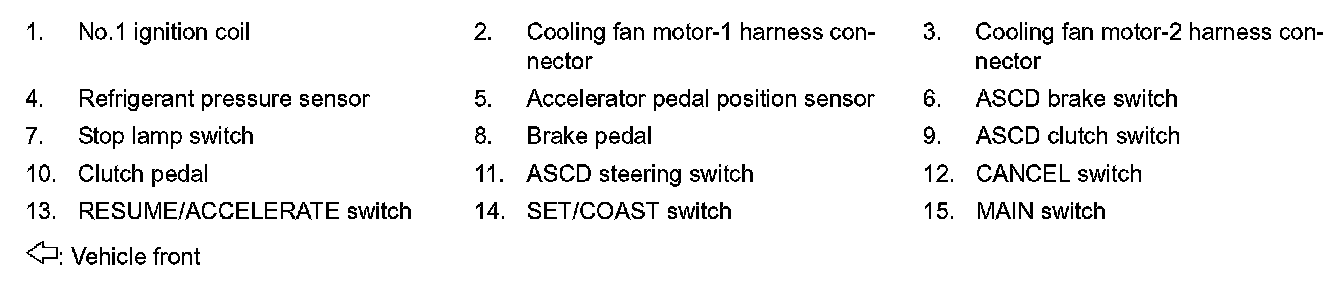

Component Parts Location
