Home >> Nissan-Datsun >> 2012 >> Altima L4-2.5L (QR25DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Air Conditioning Cut Control >> For USA And Canada

For USA And Canada




AIR CONDITIONING CUT CONTROL

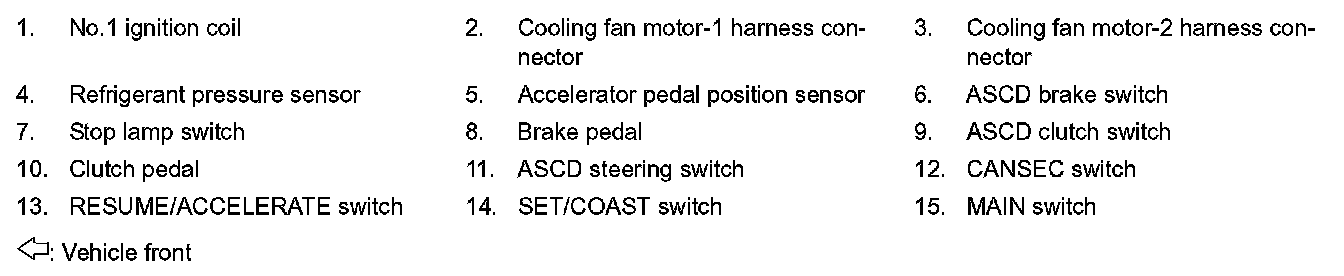

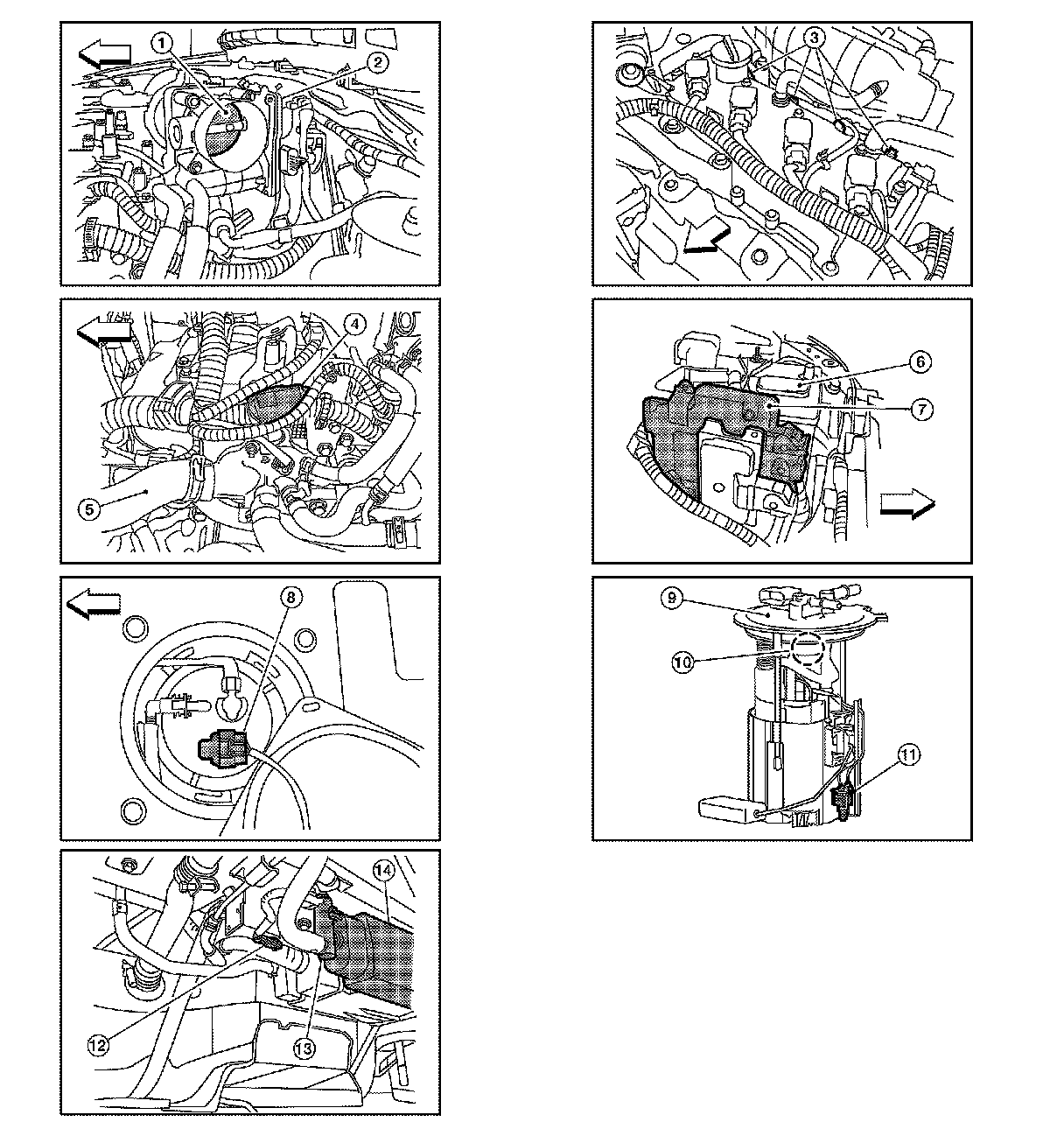

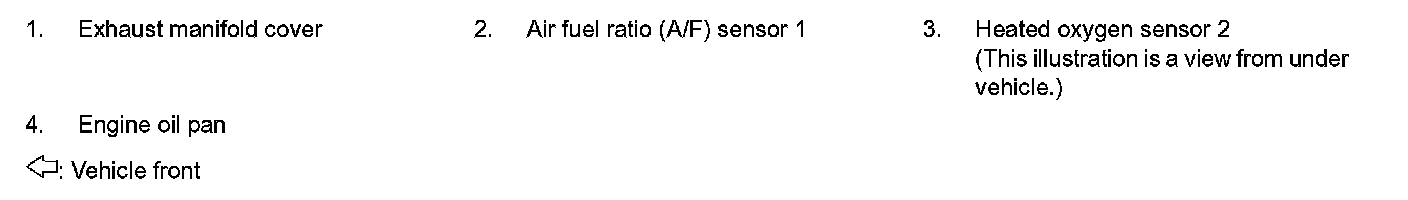

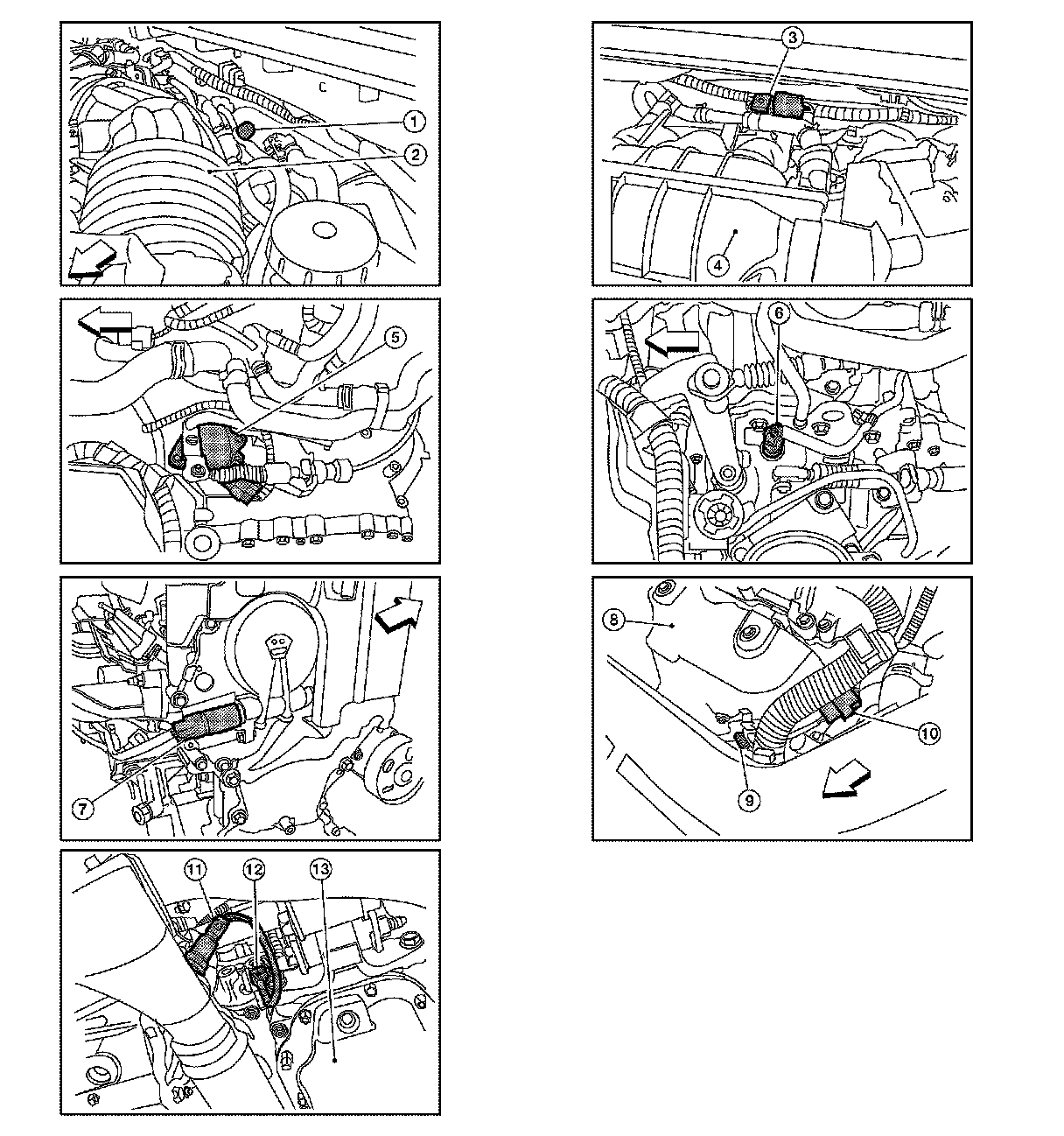

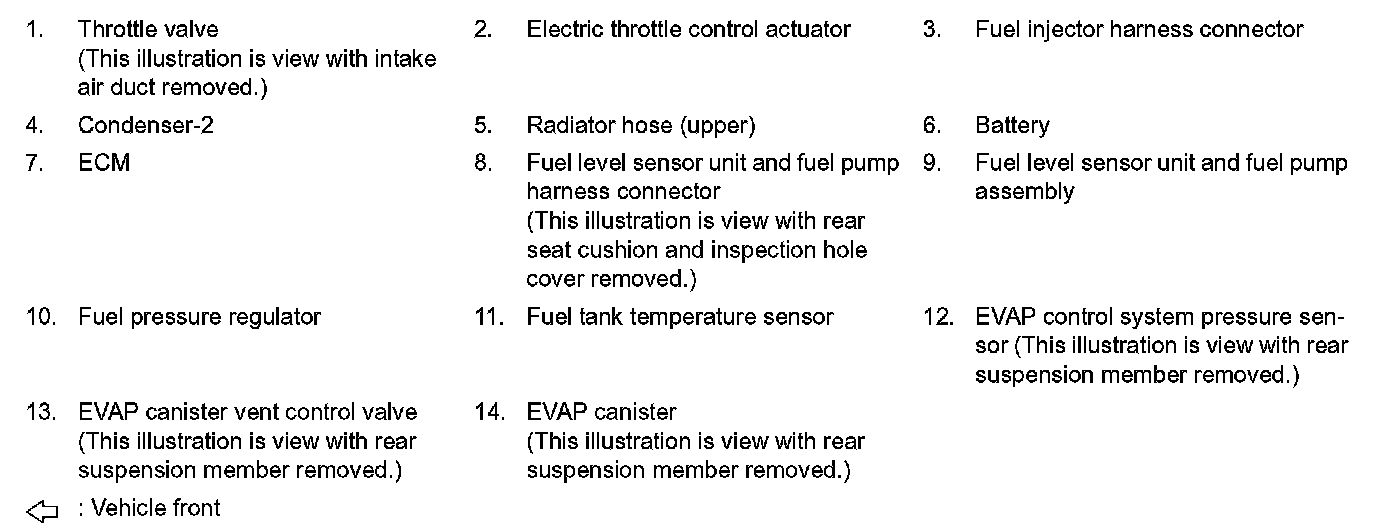

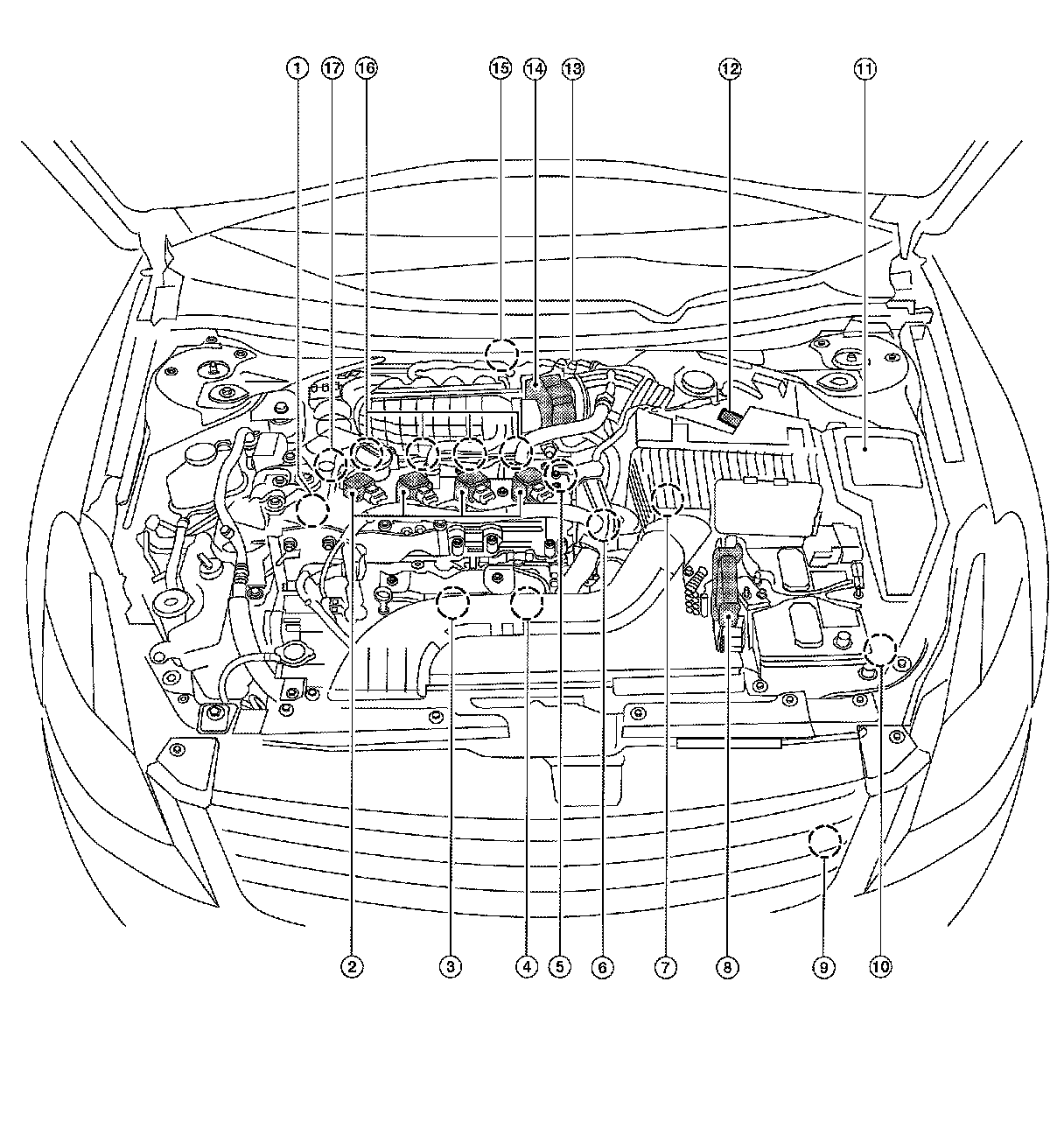

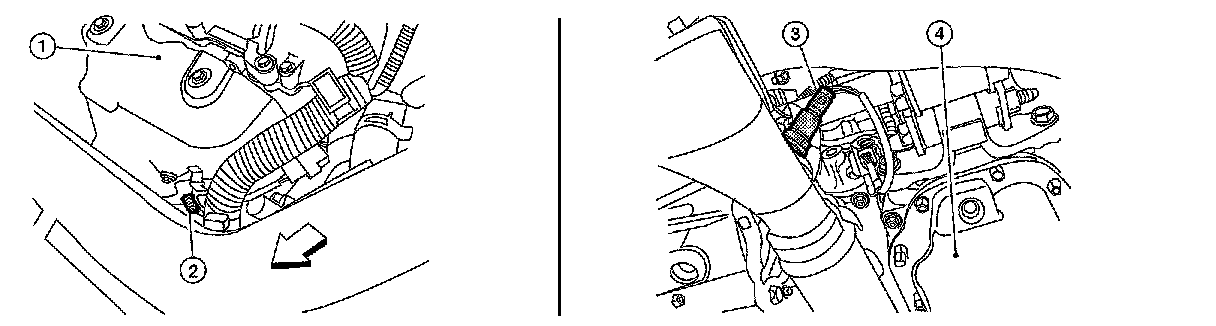

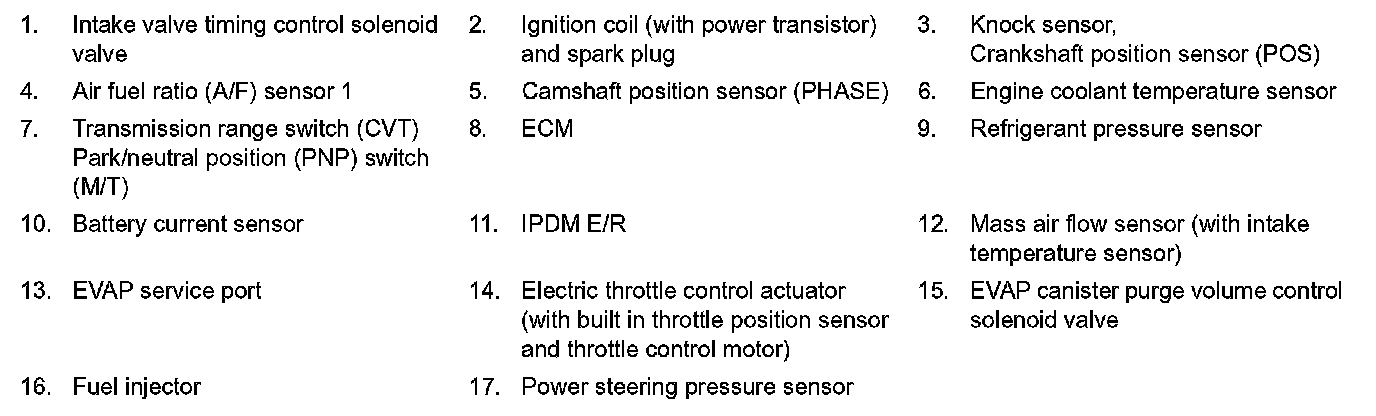

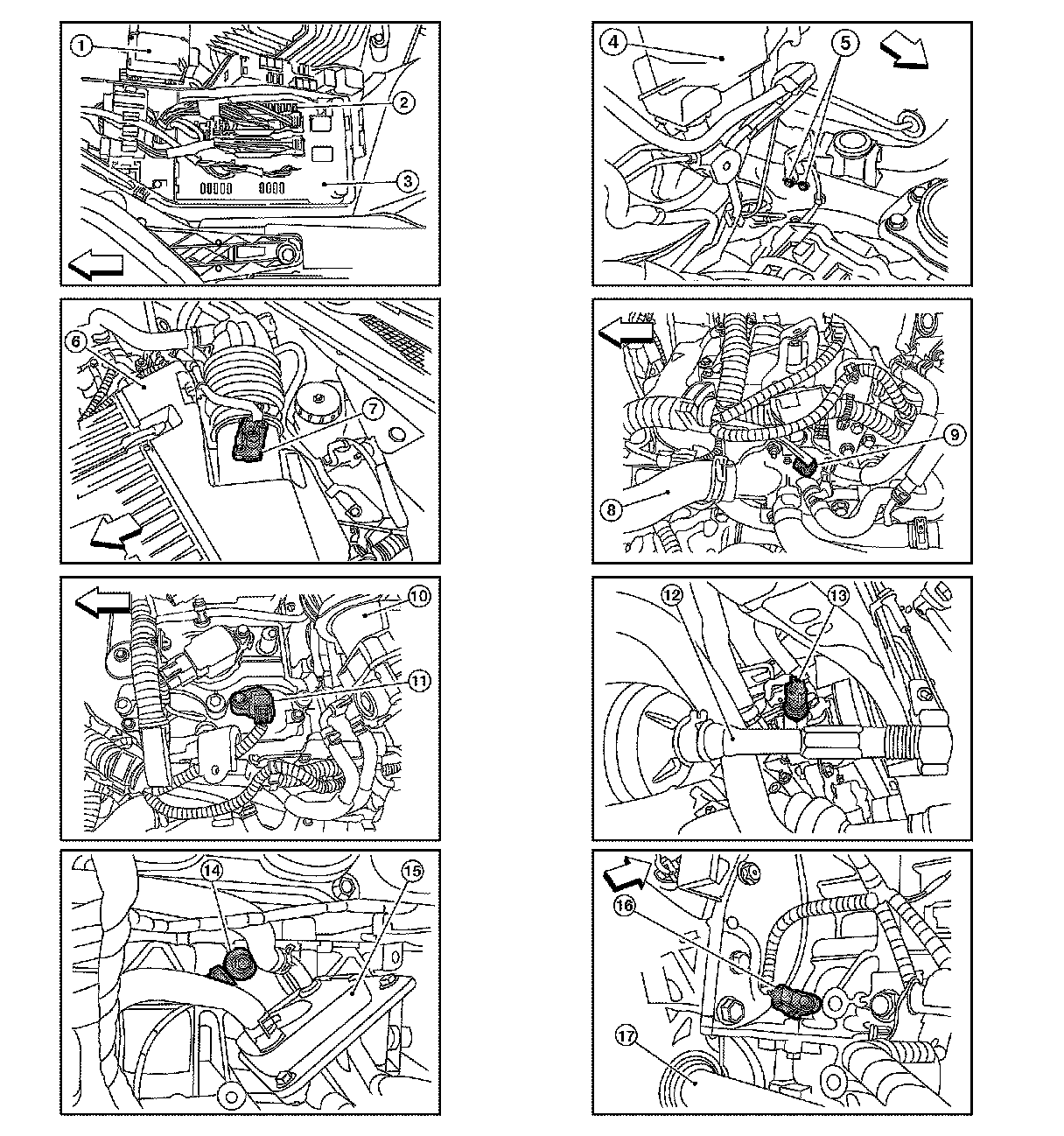

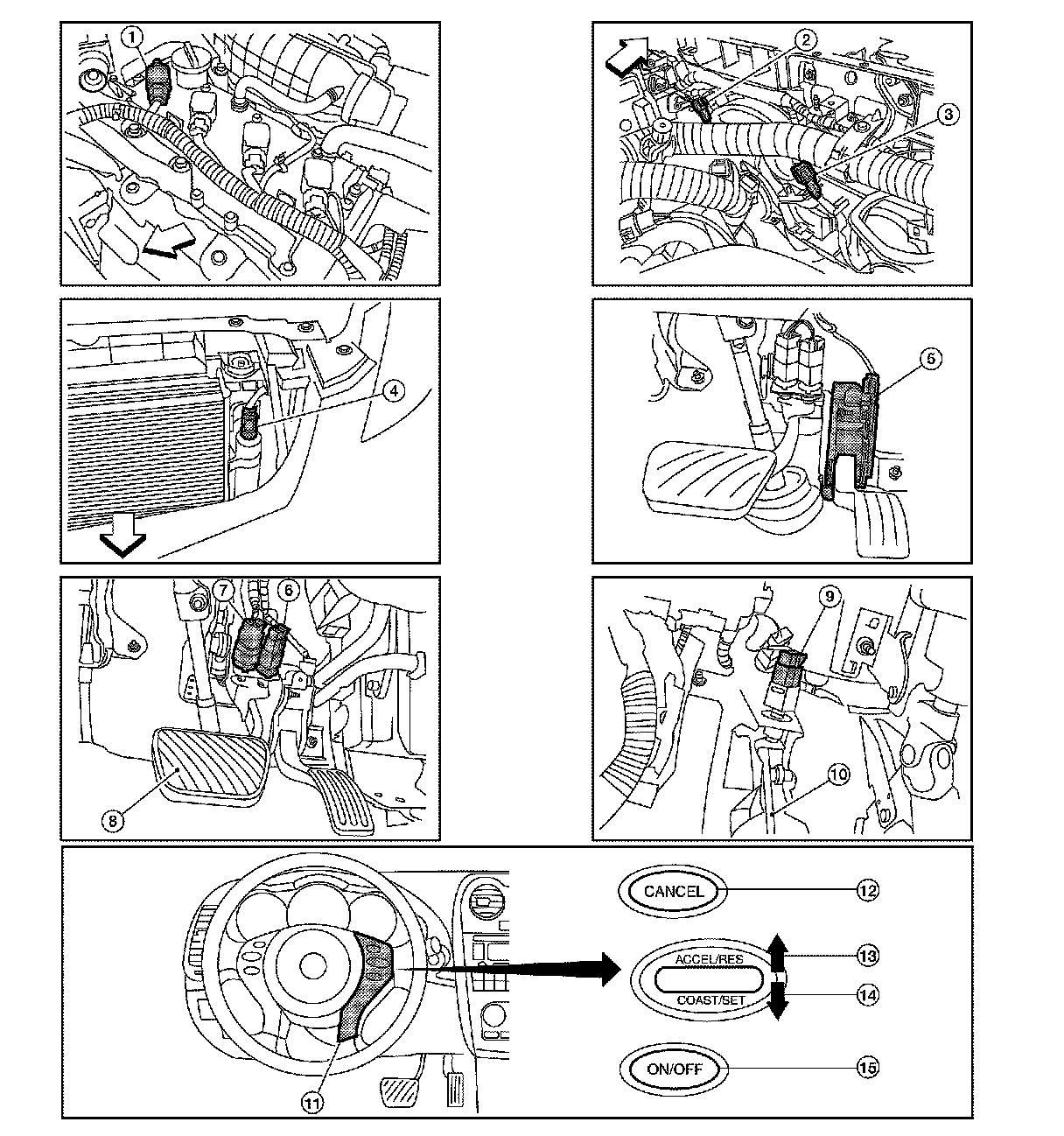

Component Parts Location
