Side Turn Signal Lamp

SIDE TURN SIGNAL LAMP

Removal and Installation


REMOVAL

1.Remove the door mirror cover. Disassembly.

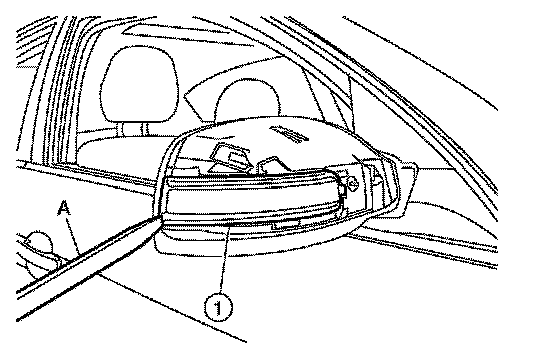

2.Release the side turn signal lamp (1) from the door mirror at the outer edge using a suitable tool (A).
3.Disconnect the side turn signal lamp connector and remove the side turn signal lamp.

INSTALLATION

Installation is in the reverse order of removal.
