Home >> Nissan-Datsun >> 2012 >> Altima L4-2.5L (QR25DE) >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Scan Tool Testing and Procedures >> Interior Lighting >> CONSULT Function >> INTELLIGENT KEY

INTELLIGENT KEY




DIAGNOSIS SYSTEM (BCM)

INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)


DATA MONITOR

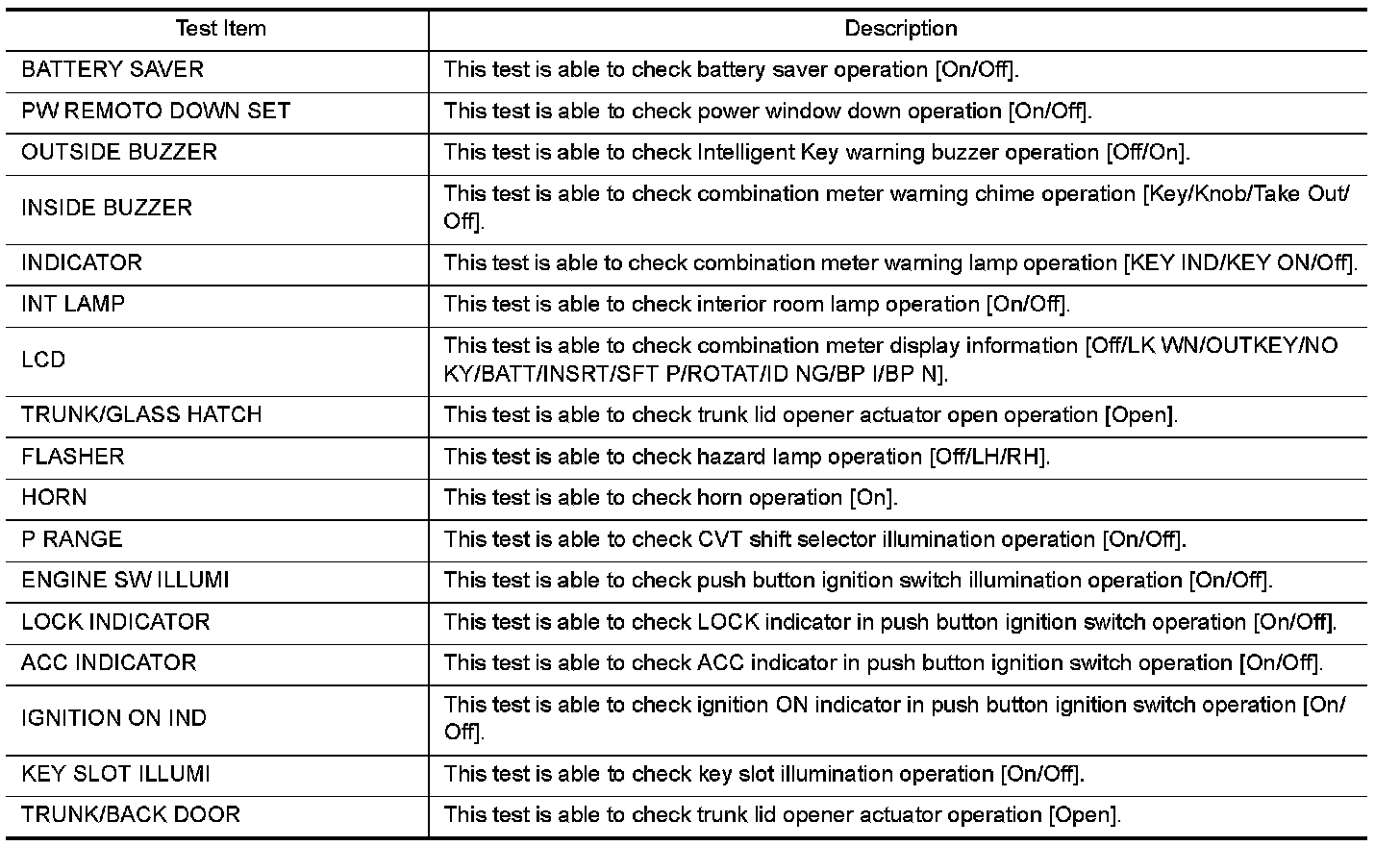

ACTIVE TEST

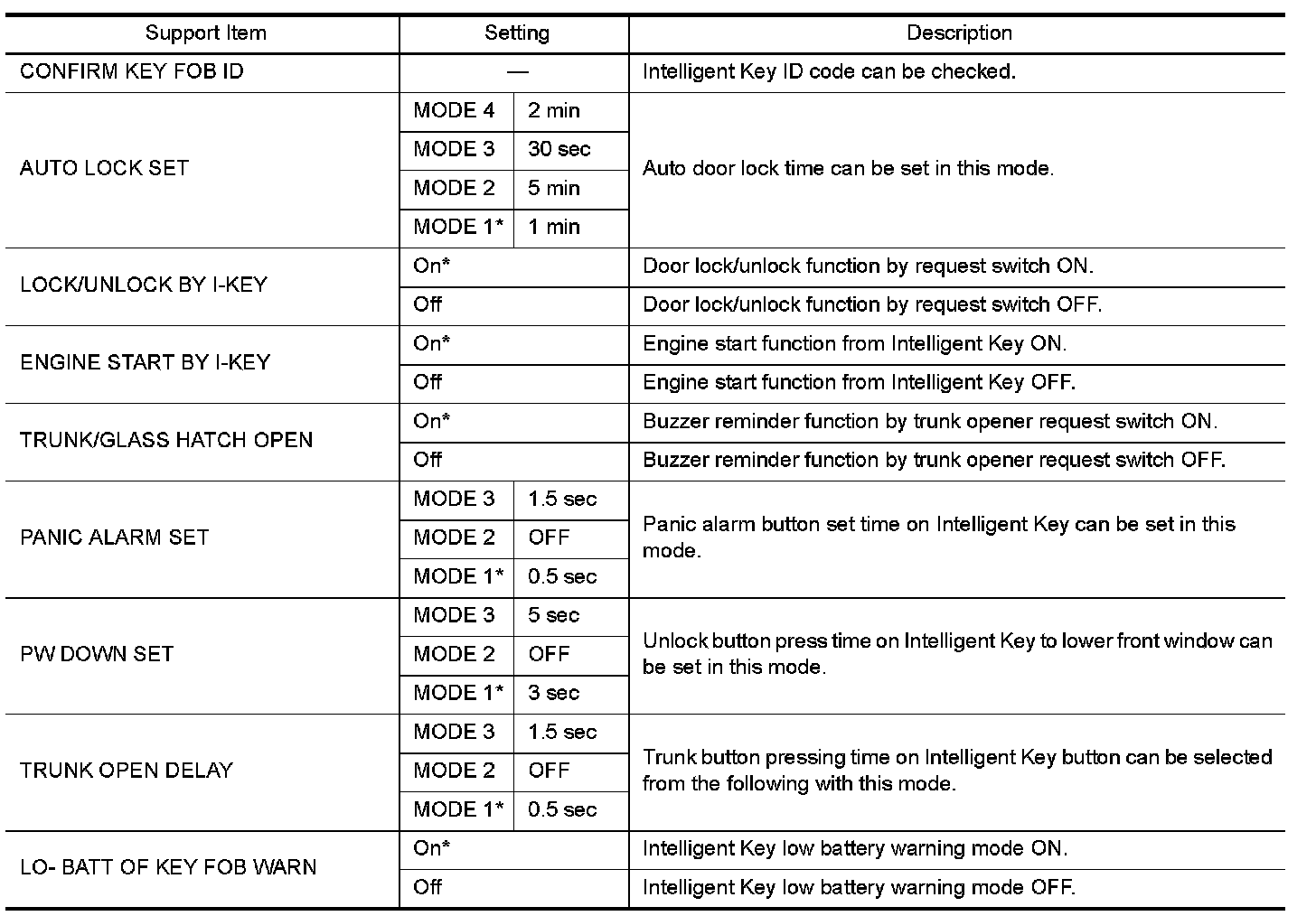

WORK SUPPORT
