Fog/Driving Lamp Bulb: Service and Repair

FRONT FOG LAMP

Bulb Replacement


REMOVAL

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb.

WARNING:
Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.

CAUTION:
- Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from it.
- Do not leave bulb out of fog lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of fog lamp. When replacing bulb, be sure to replace it with new one.
1.Position the front fender protector aside. Coupe.





2.Disconnect the fog lamp connector.

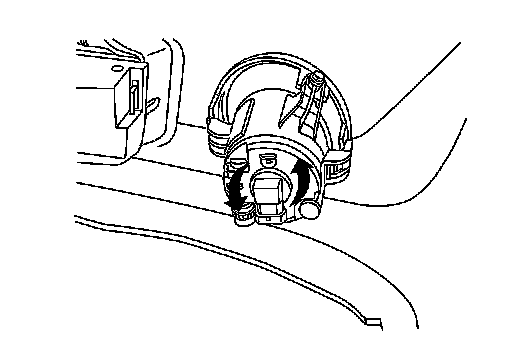

3.Turn the fog lamp bulb counterclockwise to remove it.

INSTALLATION

Installation is in the reverse order of removal.
