Insufficient Cooling Performance Chart

INSUFFICIENT COOLING

Performance Chart


TEST CONDITION

Testing must be performed as follows:






TEST READING

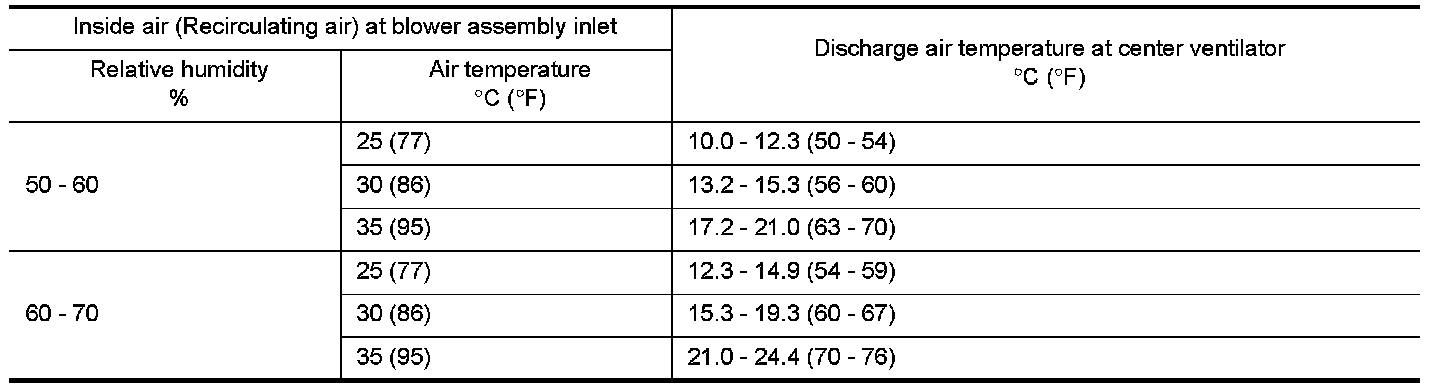

Recirculating-to-discharge Air Temperature Table

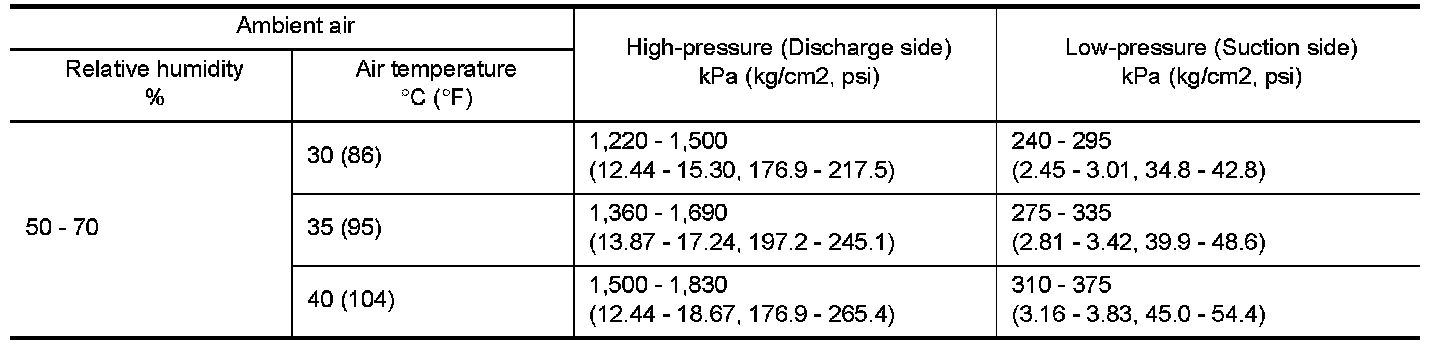

Ambient Air Temperature-to-operating Pressure Table
