Automatic Air Conditioning




AIR CONDITIONER CONTROL

Reference Value


VALUES ON THE DIAGNOSIS TOOL

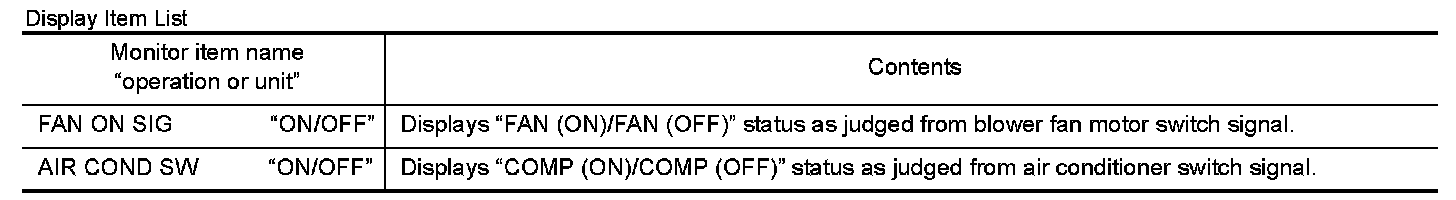

Display Item List

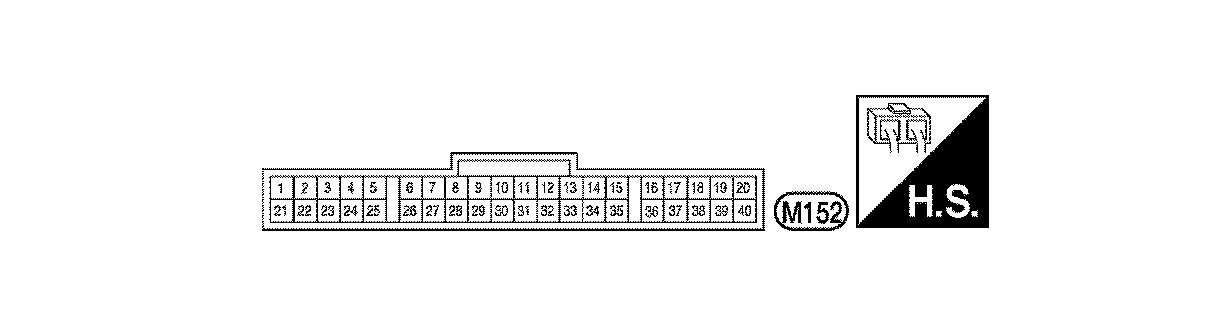

TERMINAL LAYOUT

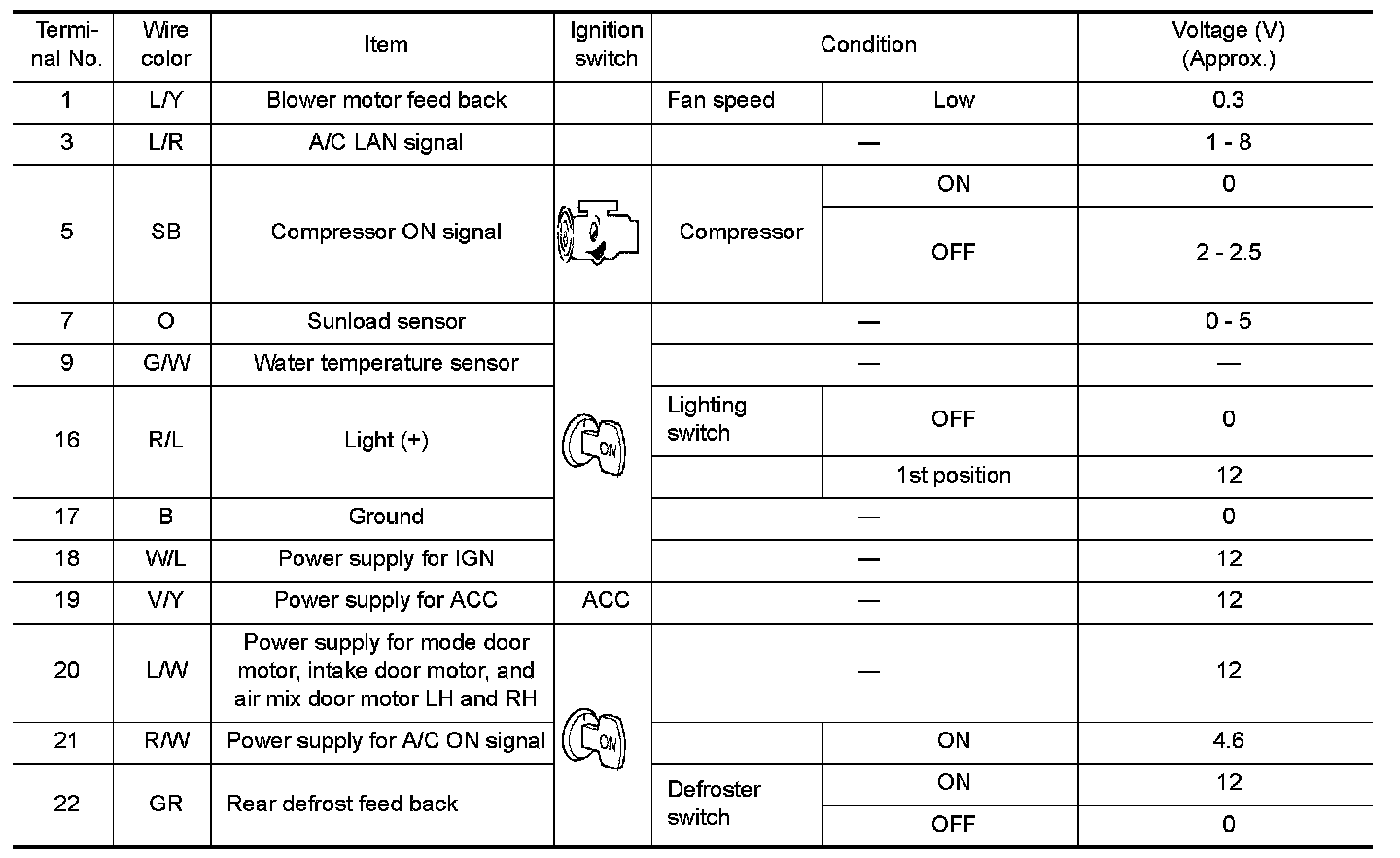

PHYSICAL VALUES
