Home >> Nissan-Datsun >> 2012 >> Altima L4-2.5L (QR25DE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Tools and Equipment >> Special Service Tools

Special Service Tools




PREPARATION

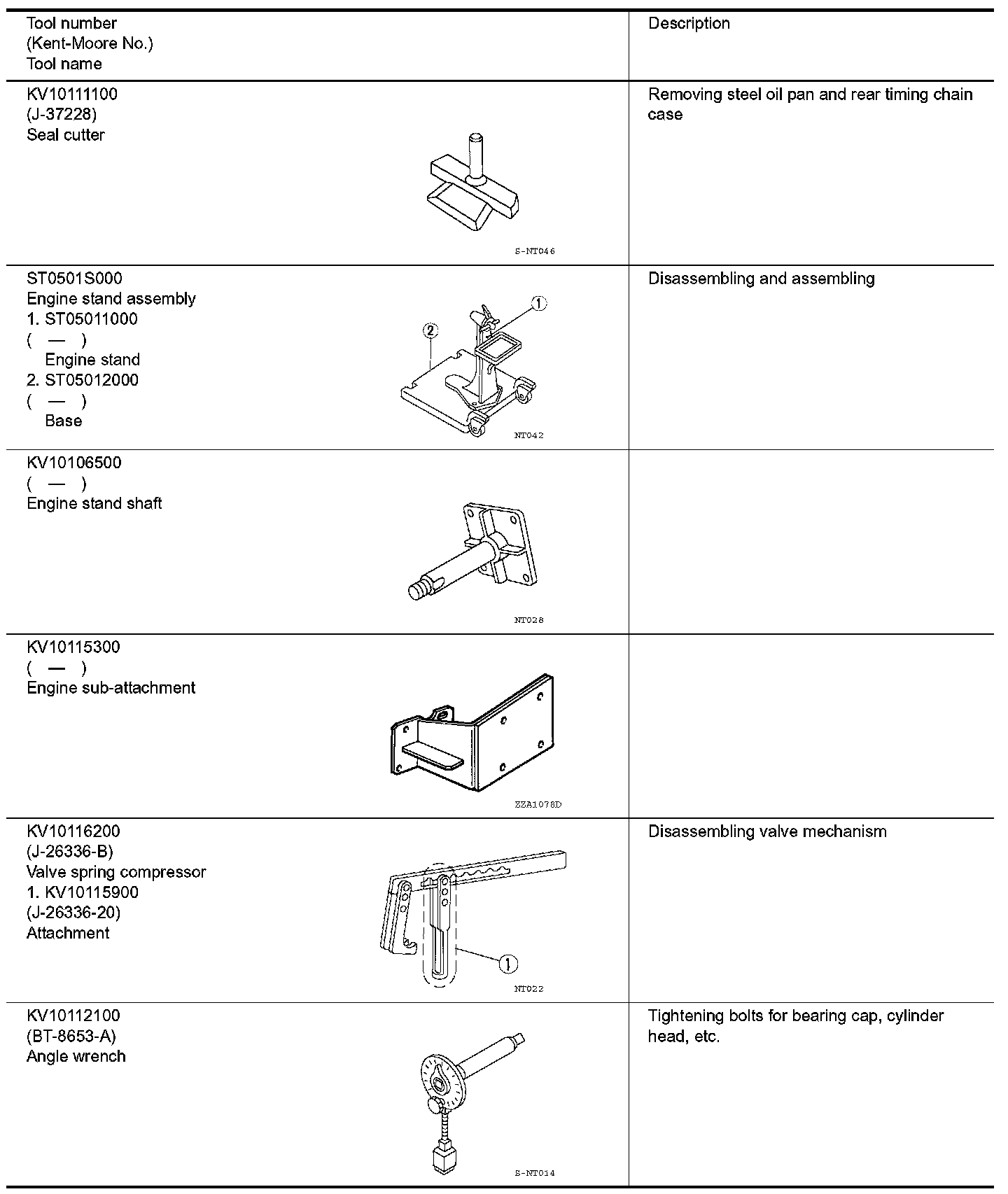

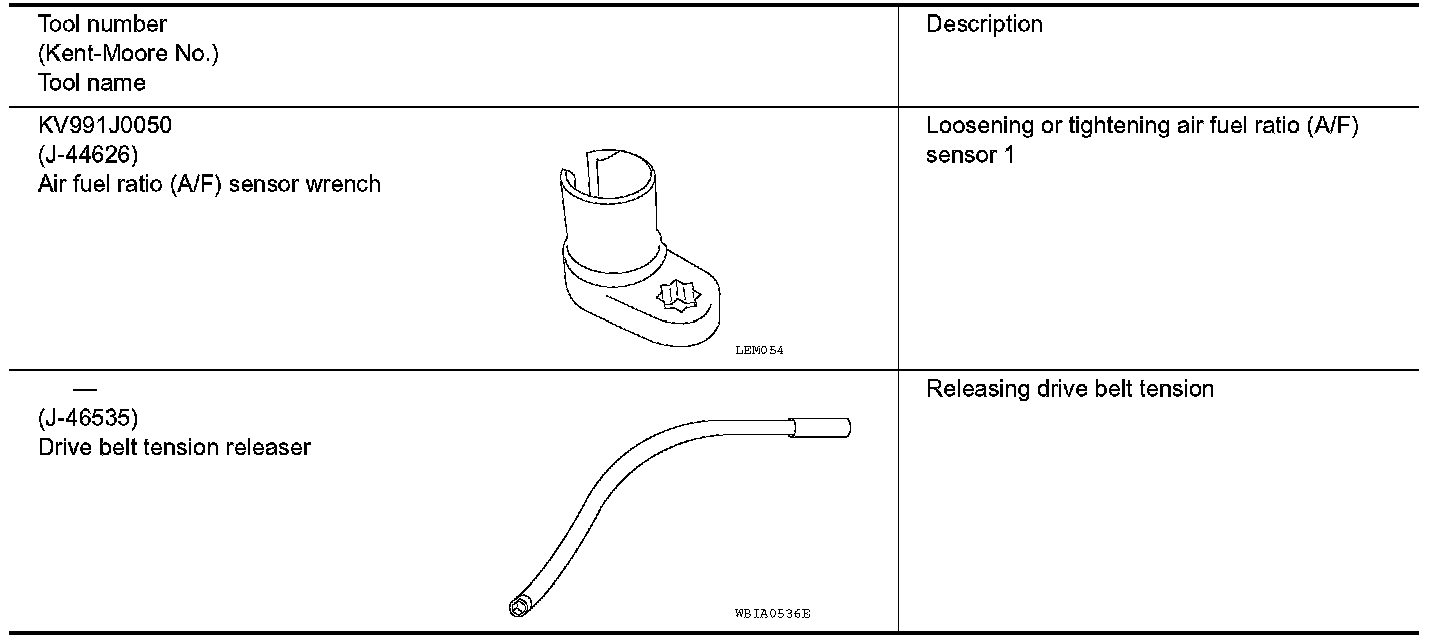

Special Service Tool

EM
The actual shapes of the Kent-Moore tools may differ from those of the special service tools illustrated here.
