Valve Guide Seal: Service and Repair

OIL SEAL

Removal and Installation of Valve Oil Seal


REMOVAL

1.Remove camshaft. Removal And Installation.
2.Remove valve lifter. Removal And Installation.
3.Rotate crankshaft, and set piston whose oil seal is to removed to top dead center. This prevents valve from dropping inside cylinder.

CAUTION:
When rotating crankshaft, be careful to avoid scarring the front cover with the timing chain.

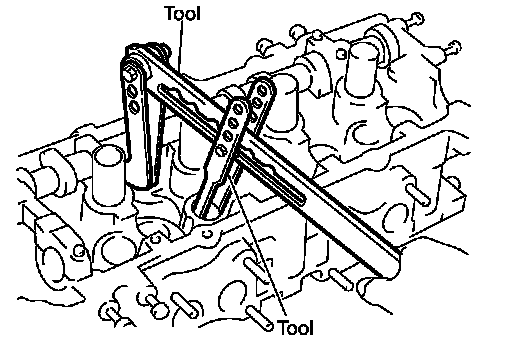

4.Remove valve collet, valve spring retainer and valve spring using Tool.











5.Remove valve oil seal using Tool.





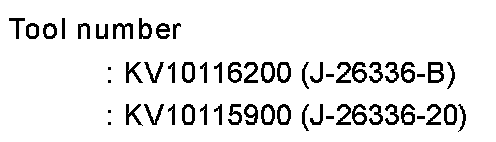

Tool number: KV10107902 (J-38959)

INSTALLATION

1.Apply new engine oil to new valve oil seal joint surface and seal lip.

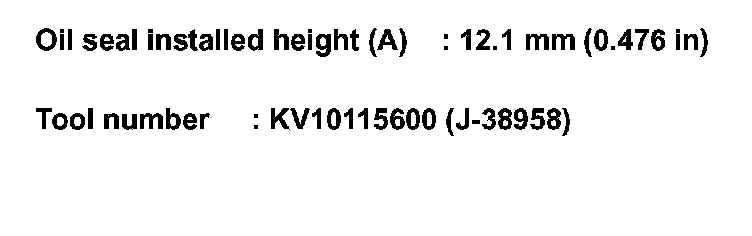

2.Press in valve oil seal to the position shown using Tool.





3.Installation of the remaining components is in the reverse order of removal.
