Hydraulic Circuit Diagram VDC/TCS/ABS
Hydraulic Circuit Diagram VDC/TCS/ABS
VDC

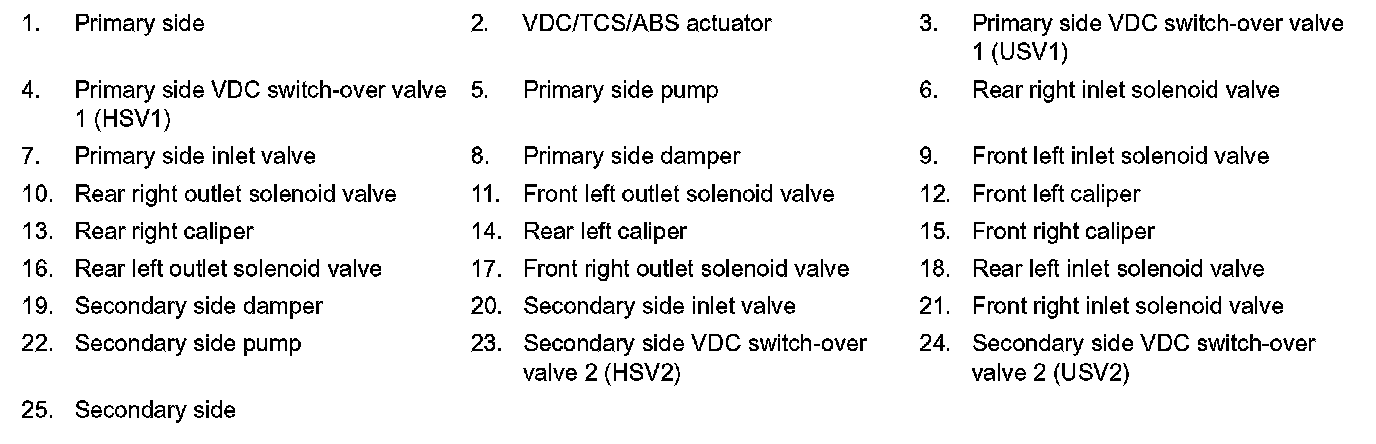

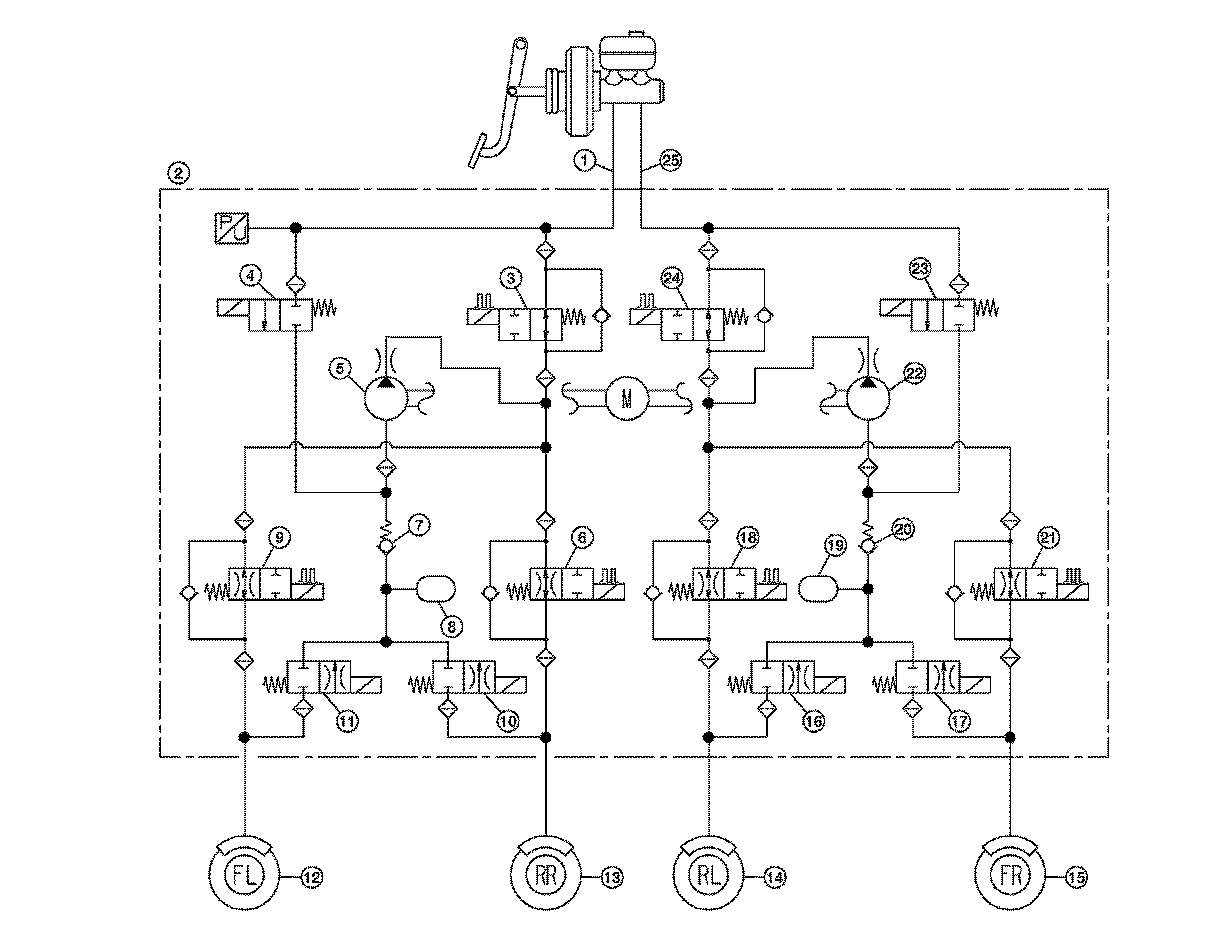

Hydraulic Circuit Diagram
