Home >> Nissan-Datsun >> 2012 >> Altima L4-2.5L (QR25DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Bose Audio >> Without Navigation >> Coupe

Coupe




BOSE AUDIO WITHOUT NAVIGATION

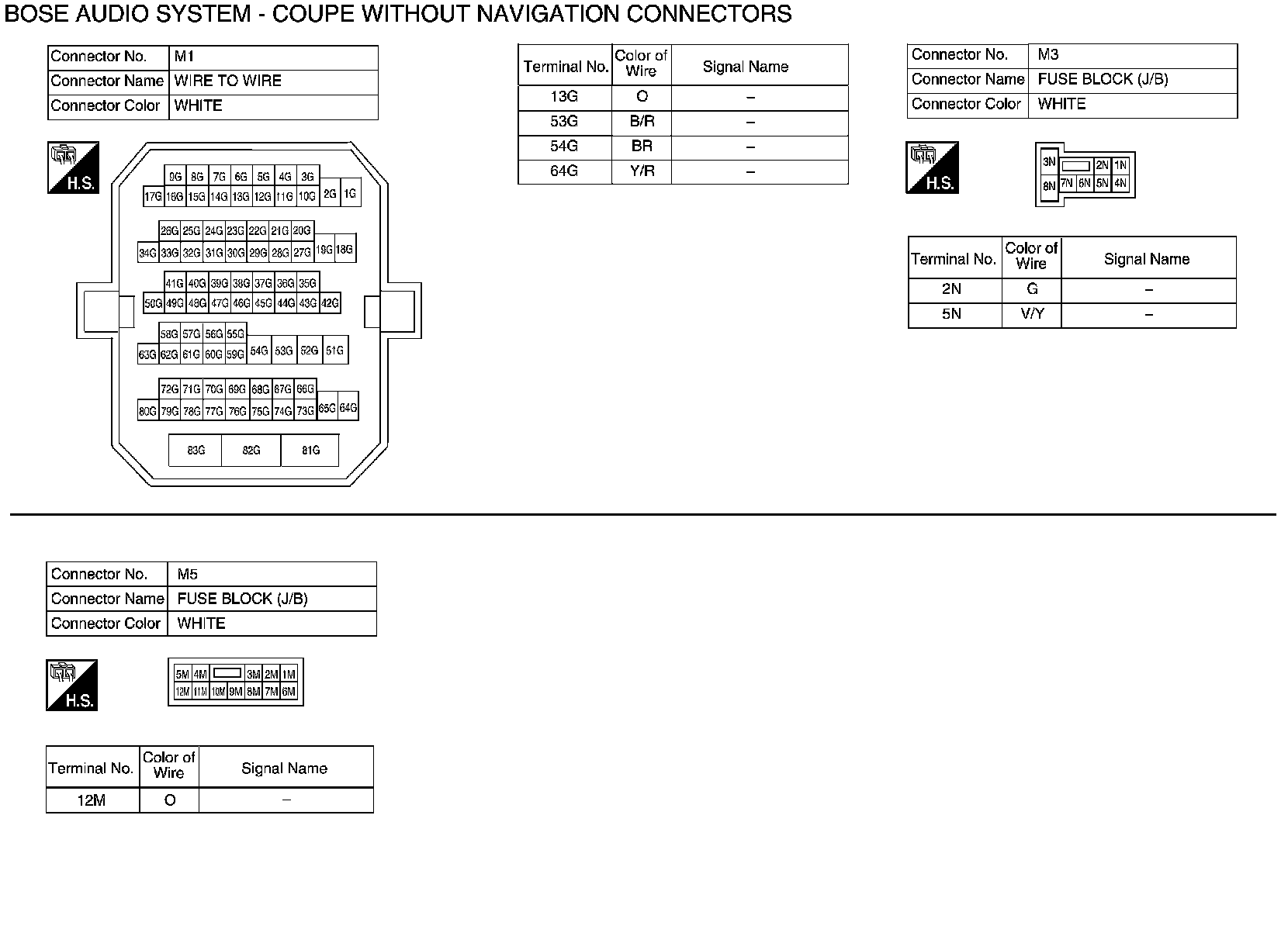

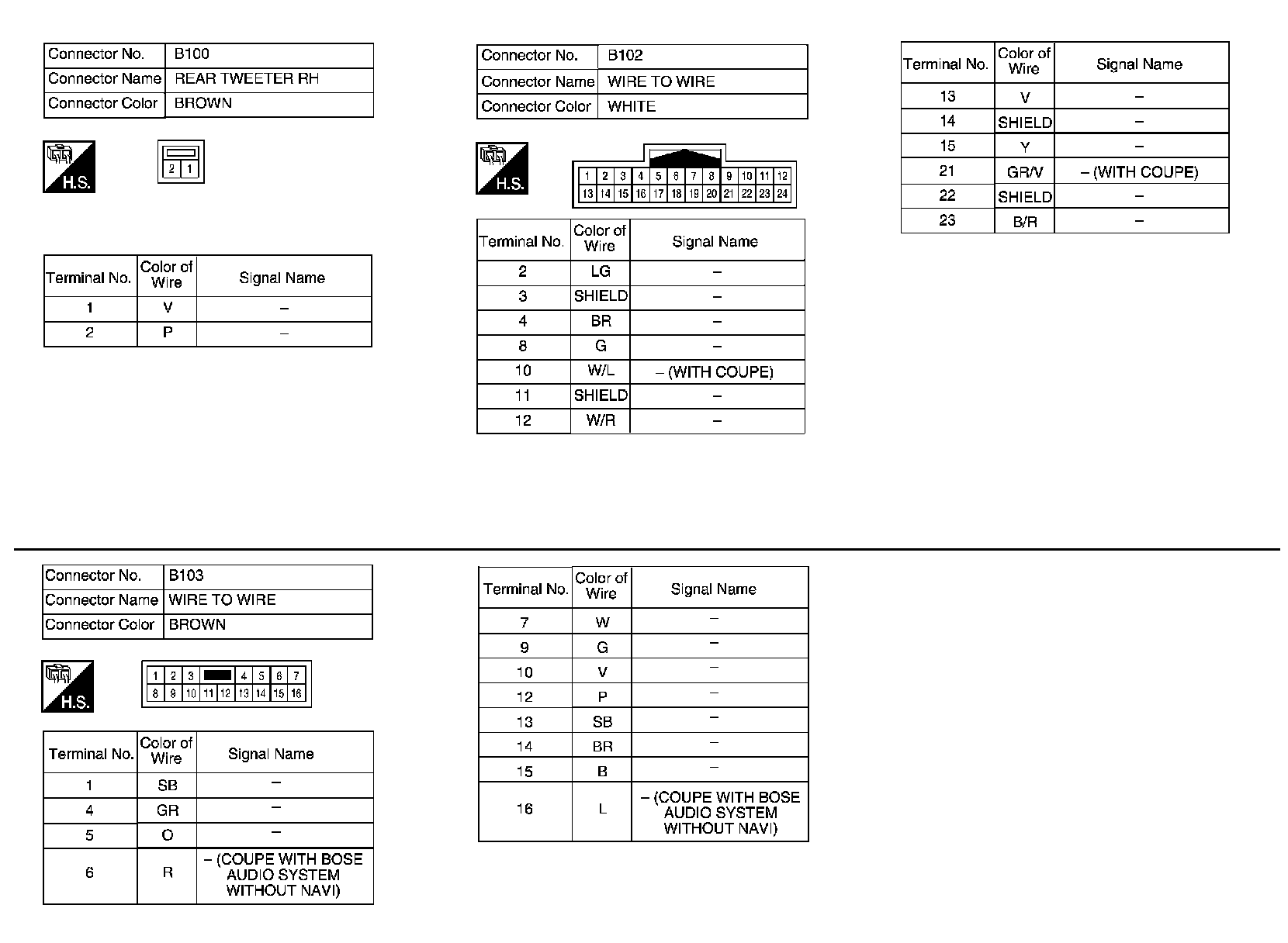

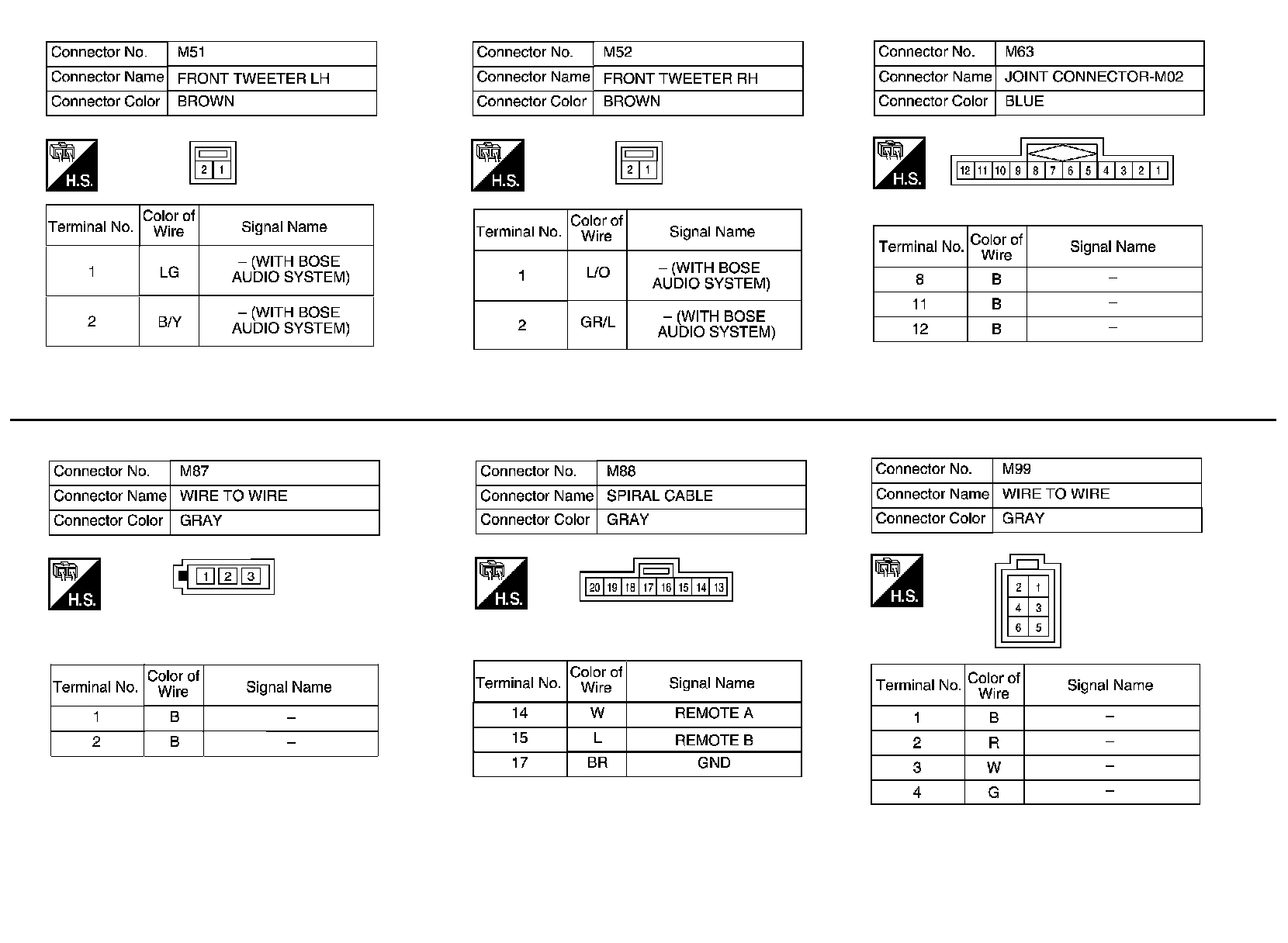

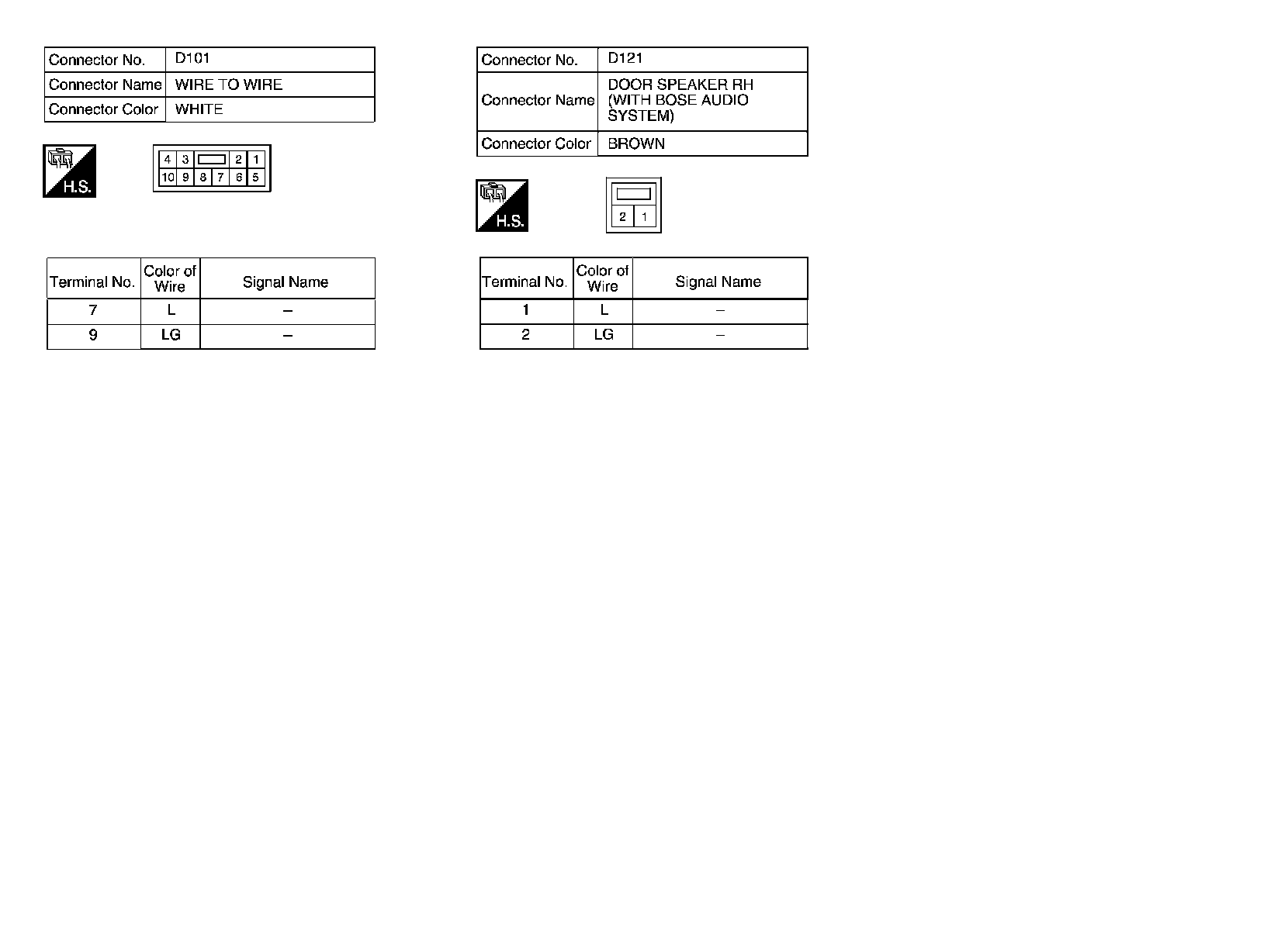

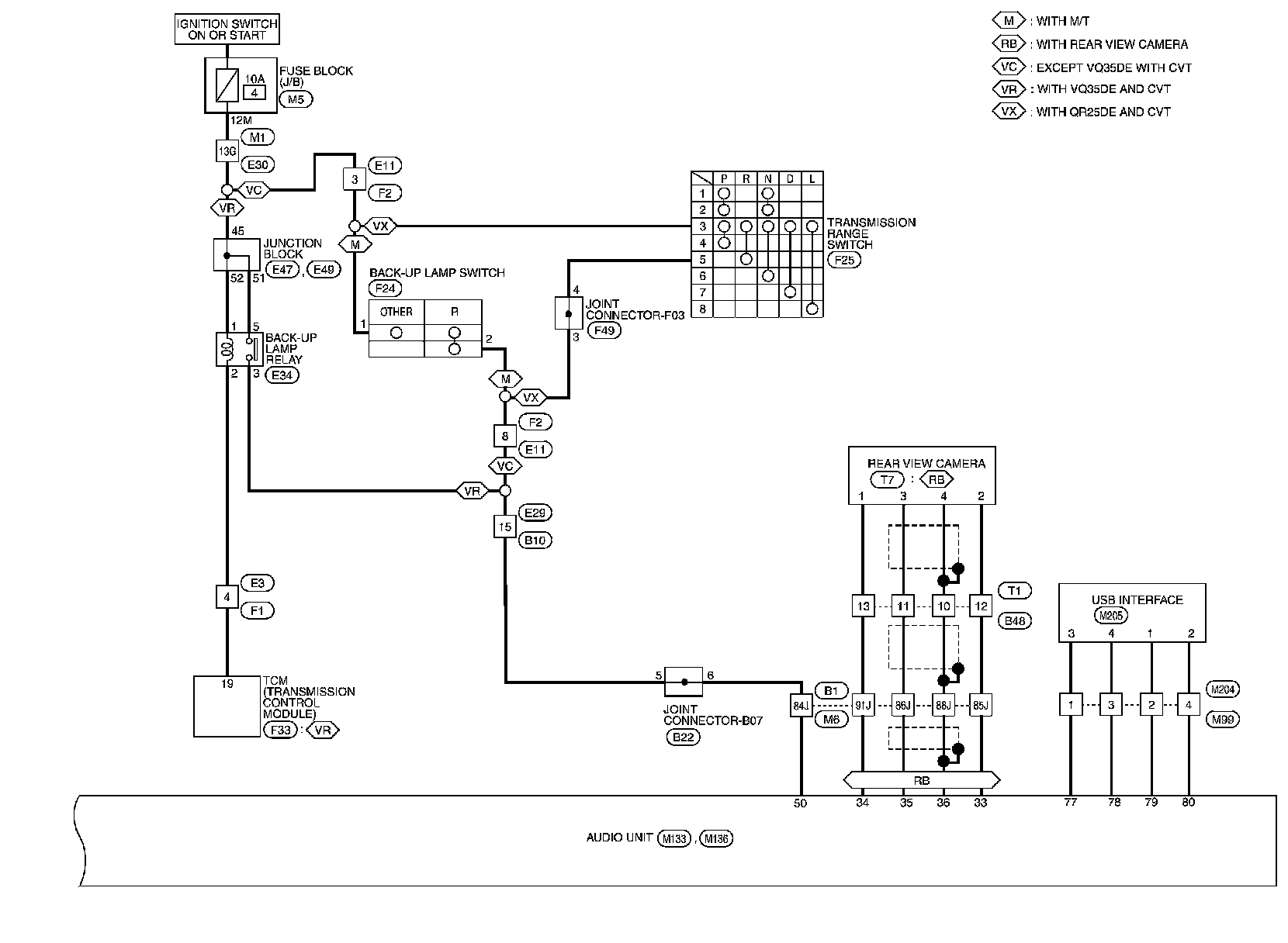

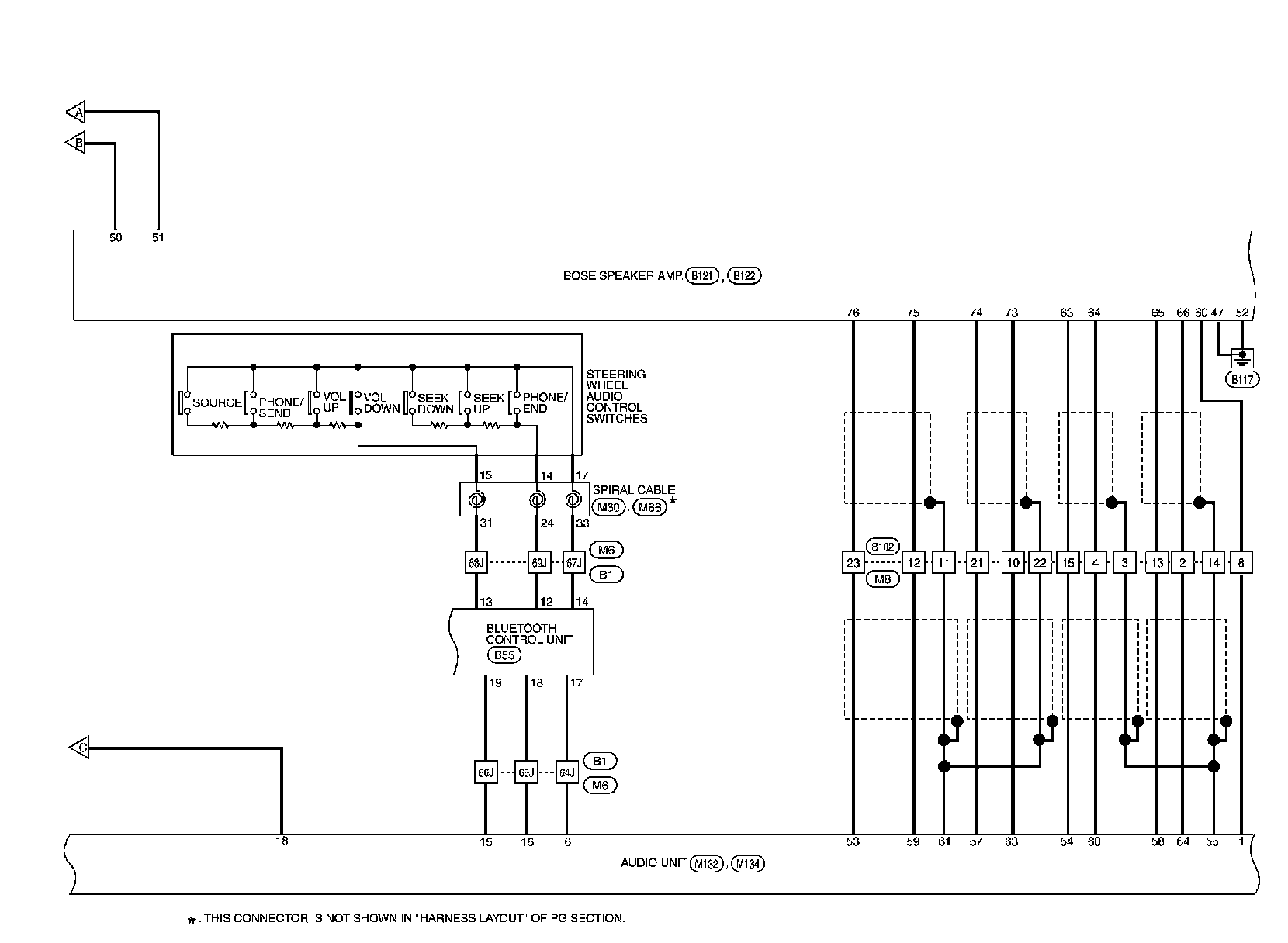

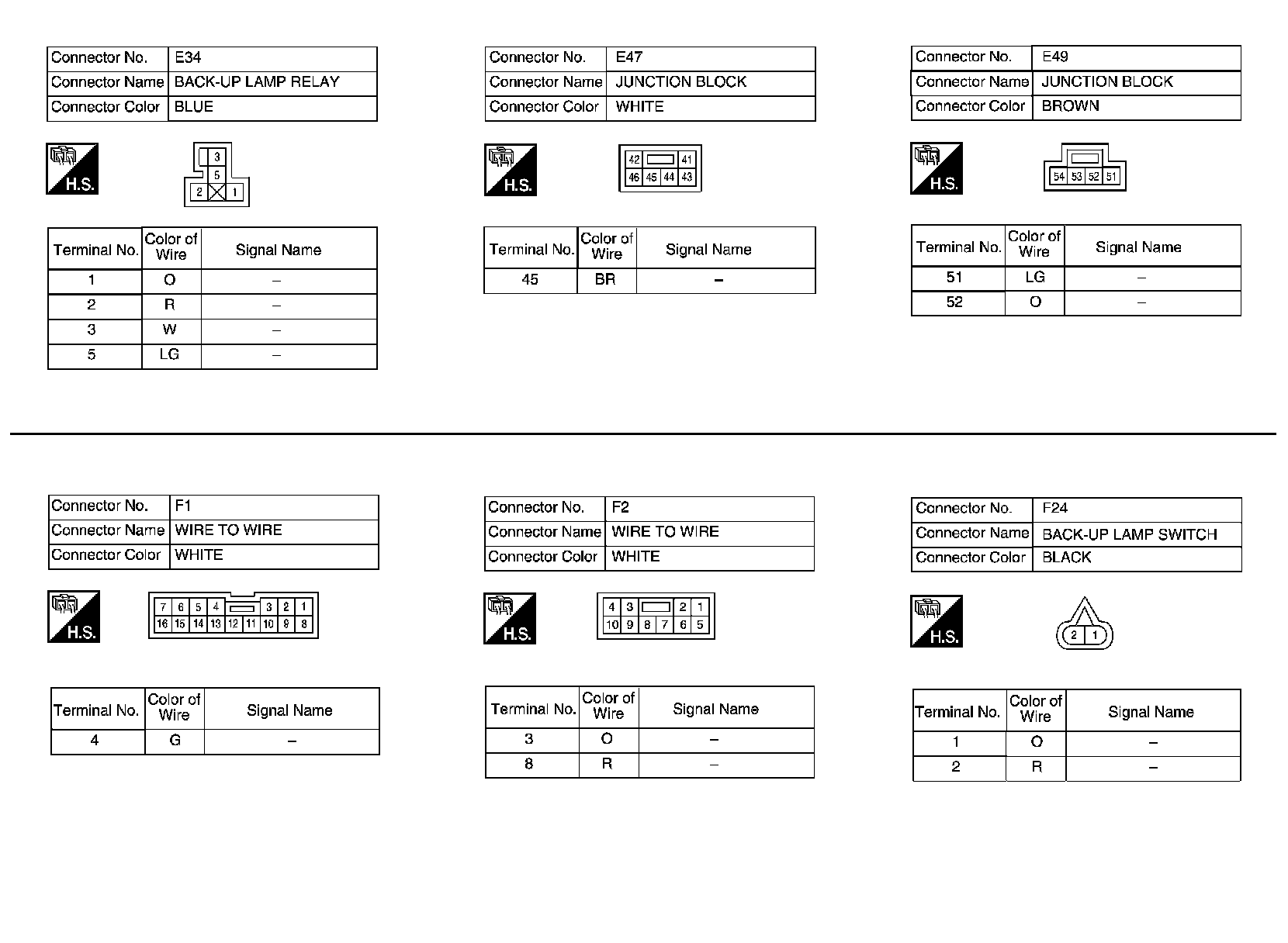

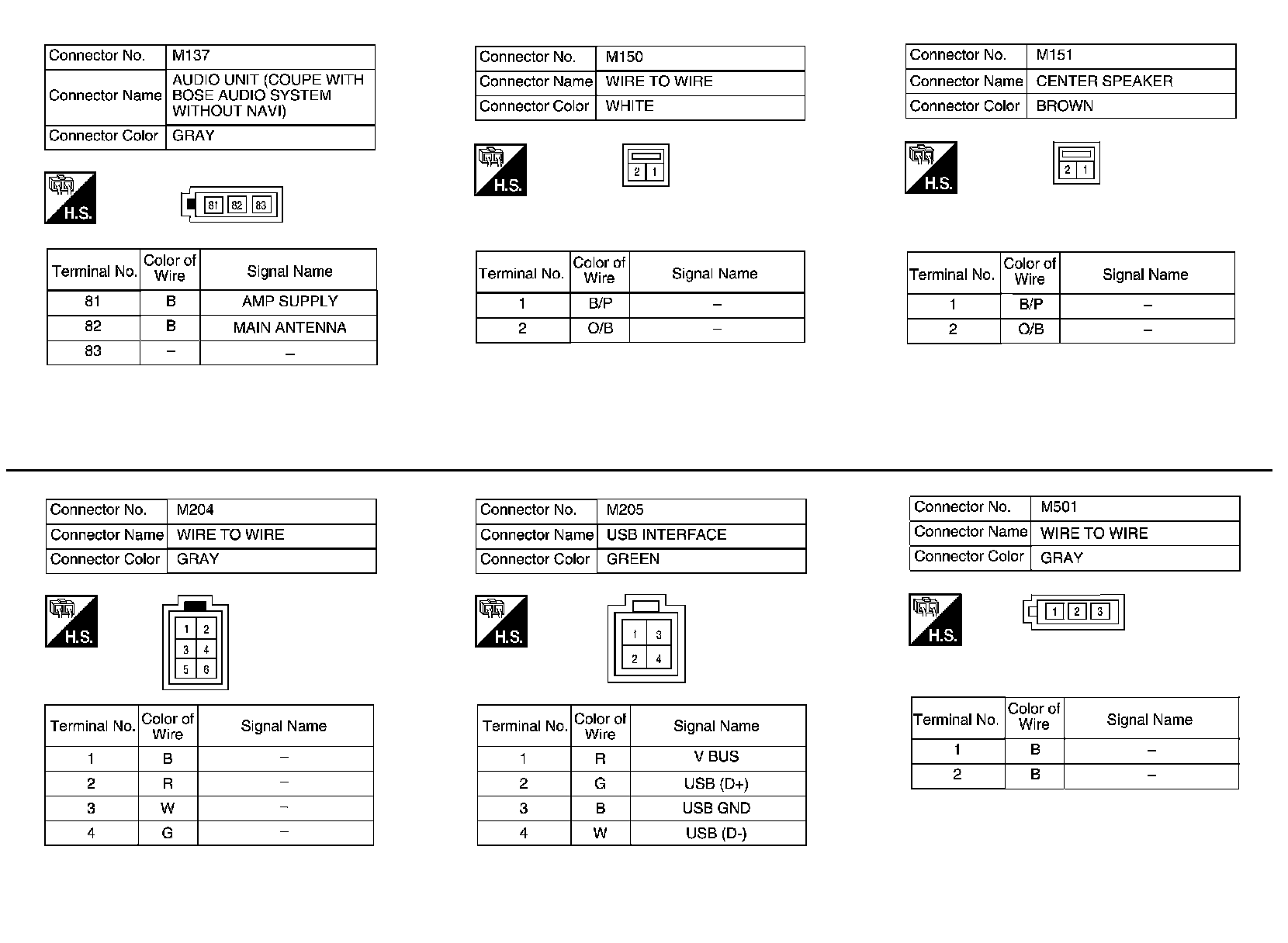

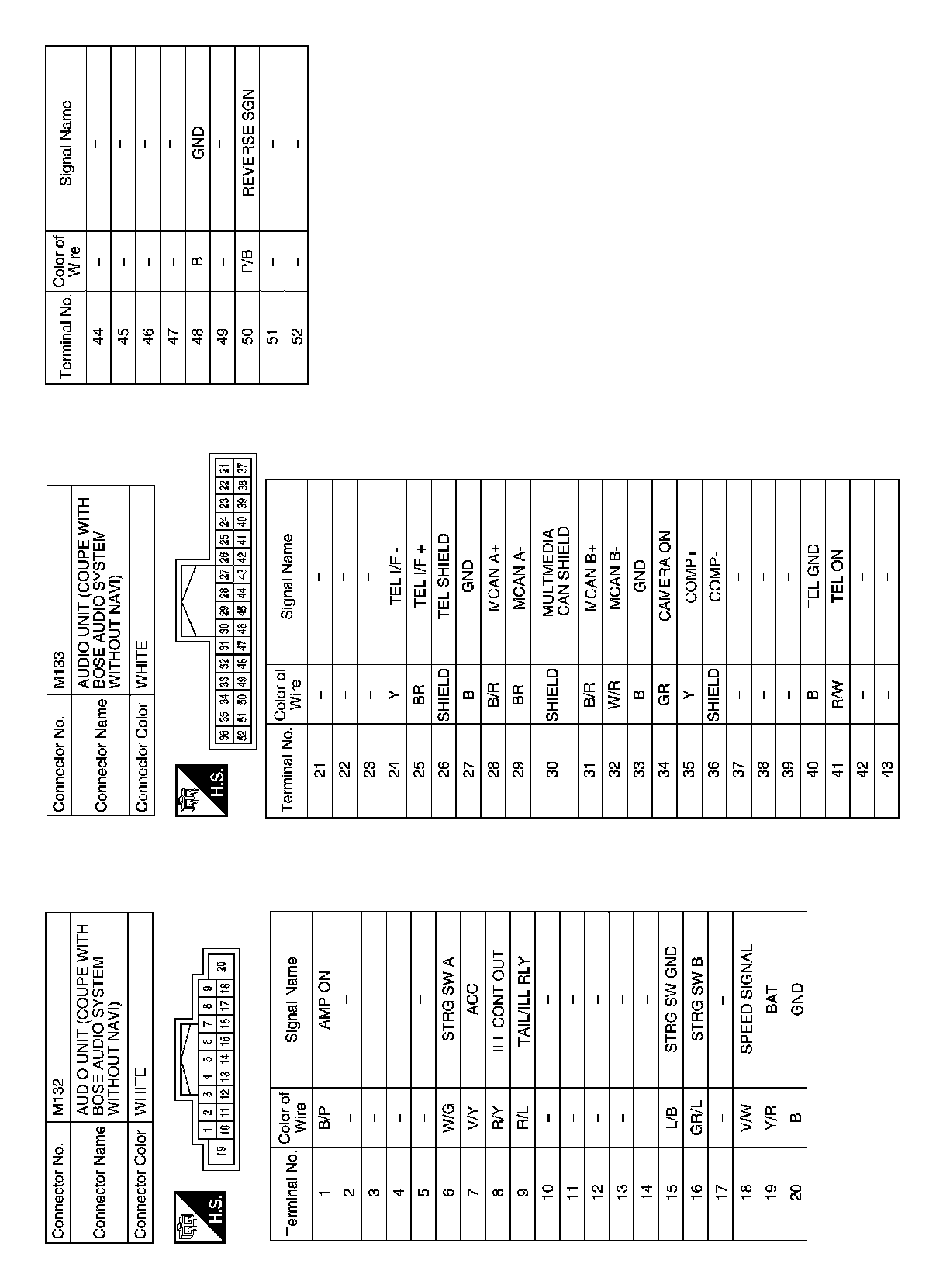

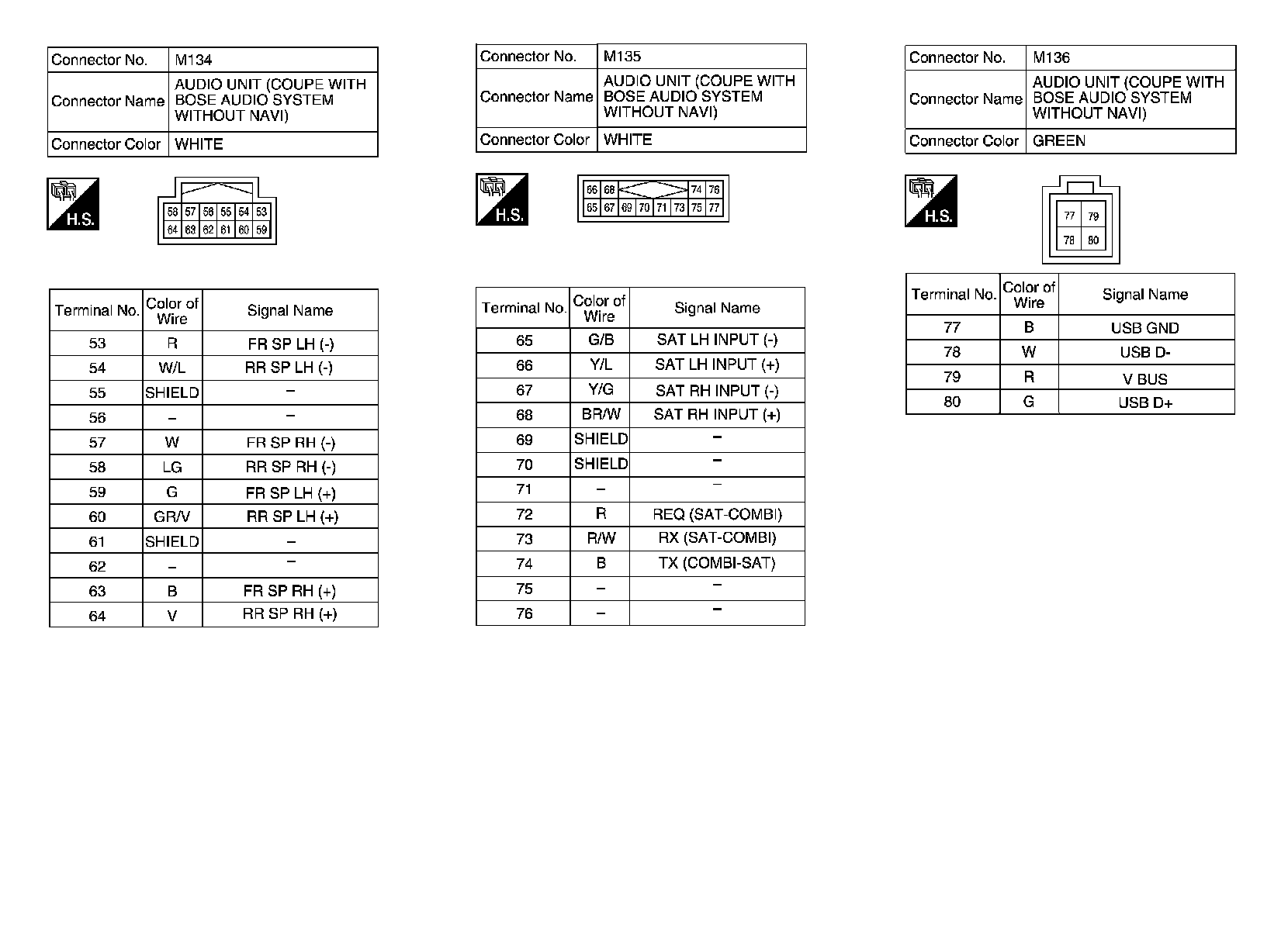

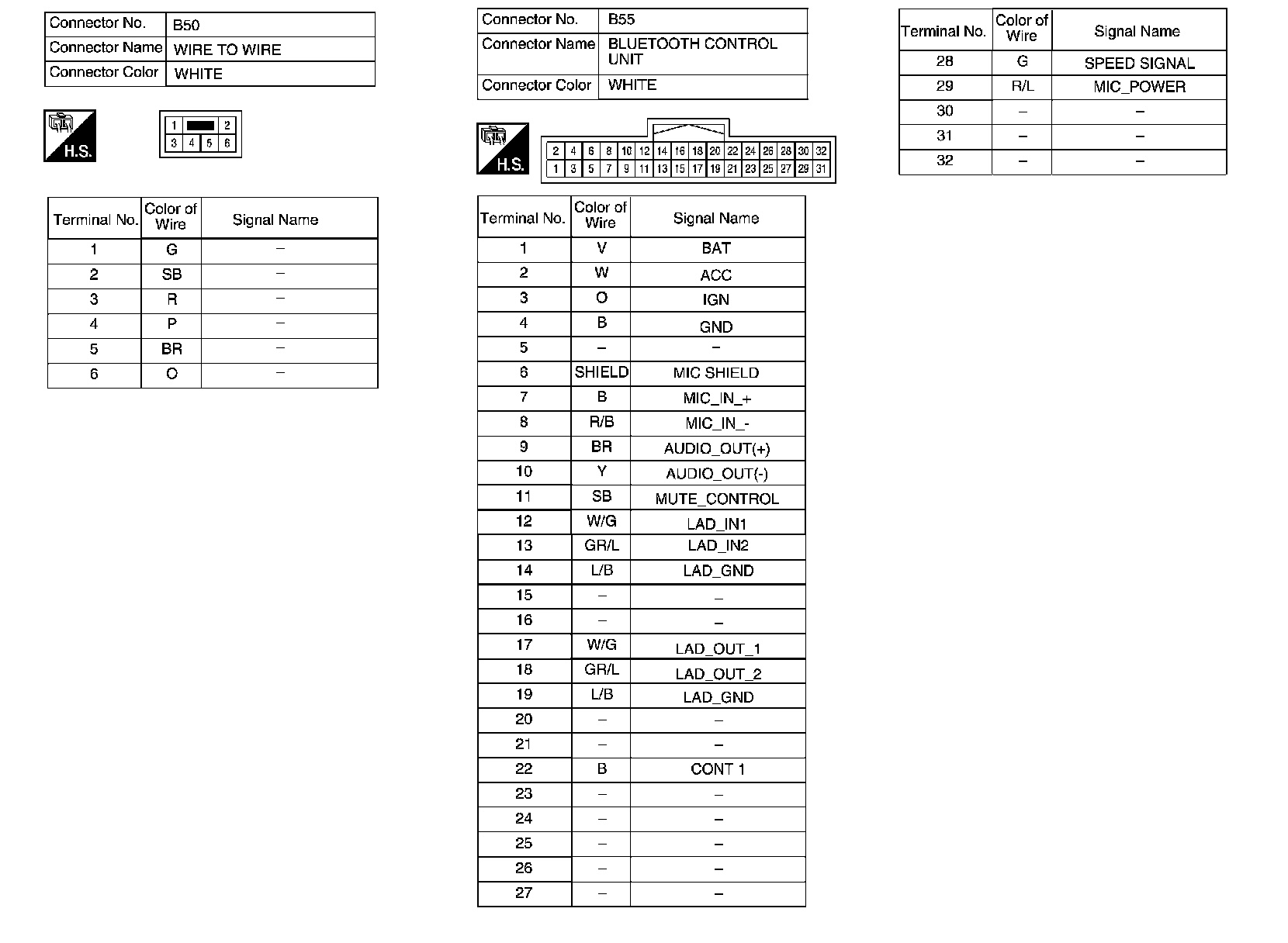

COUPE : Wiring Diagram - Coupe Without Navigation System
