VDC/TCS/ABS

ABS WARNING LAMP

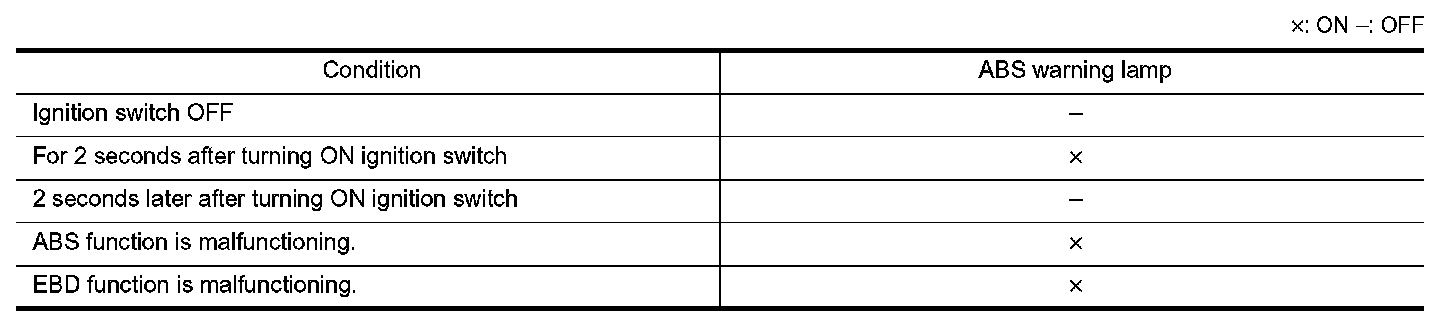

Description







Component Function Check


1. CHECK ABS WARNING LAMP OPERATION

Check that the lamp illuminates for approximately 2 seconds after the ignition switch is turned ON.

Is the inspection result normal?
YES- Inspection End.
NO- Go to diagnosis procedure. Refer to "Diagnosis Procedure".


Diagnosis Procedure


1. CHECK SELF DIAGNOSTIC RESULT

Perform ABS actuator and electric unit (control unit) self diagnostic result. VDC/TCS/ABS.
Is the inspection result normal?
YES- GO TO 2
NO- Check items displayed by self diagnostic result. Testing and Inspection.

2. CHECK COMBINATION METER

Check if the indication and operation of combination meter are normal. Work Flow.
Is the inspection result normal?
YES- Replace ABS actuator and electric unit (control unit). VDC/TCS/ABS.
NO- Repair or replace combination meter. Removal And Installation.


Special Repair Requirement


1. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit). Service and Repair.
- END
