Sedan

MUDGUARD

Removal and Installation












REMOVAL

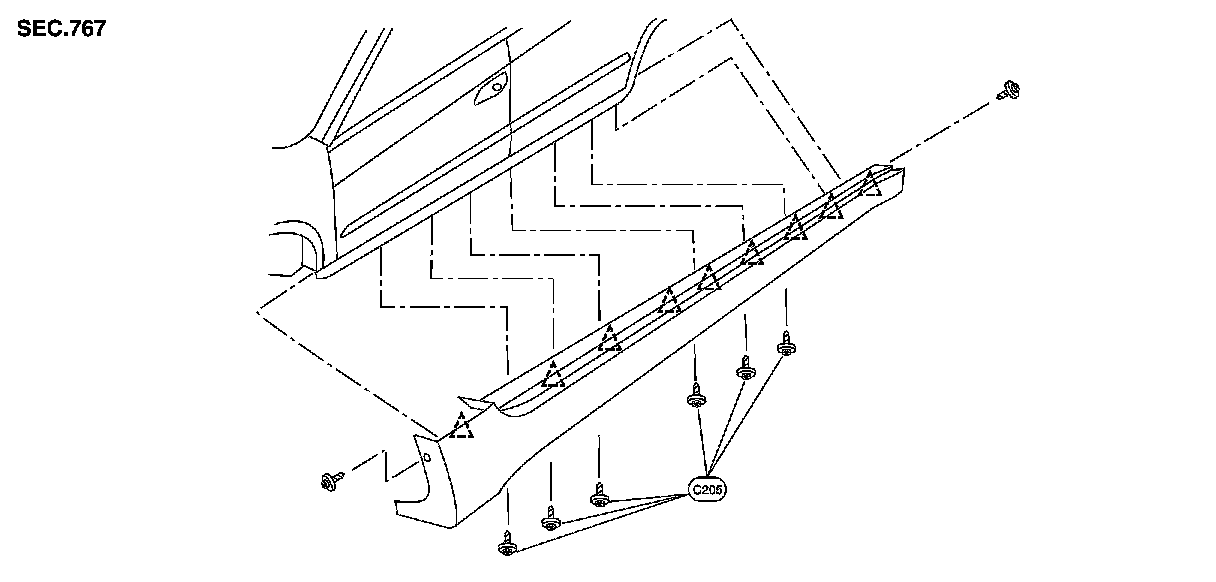

1.Remove the C205 clips located on the under body.
2.Remove the center mudguard screws, then remove the center mudguard.

INSTALLATION

Installation is in the reverse order of removal.
EXT
