Home >> Nissan-Datsun >> 2012 >> Altima L4-2.5L (QR25DE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Removal and Replacement >> Rear Seat >> Unit Disassembly and Assembly >> Sedan

Sedan




REAR SEAT

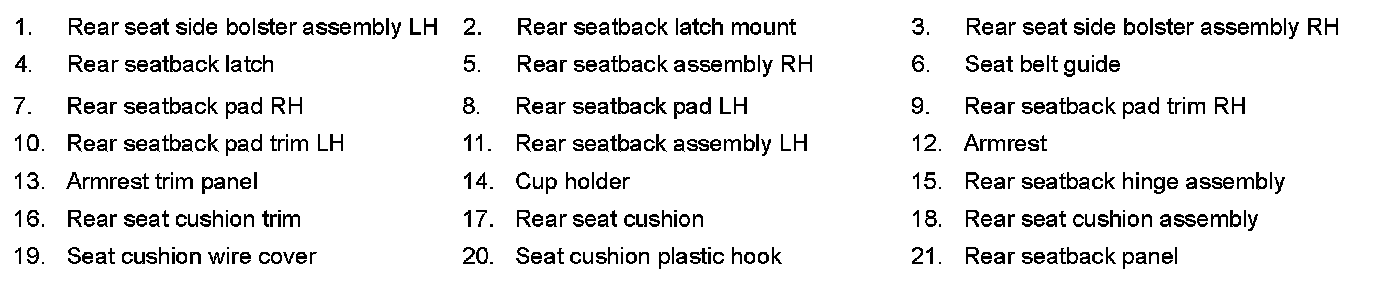

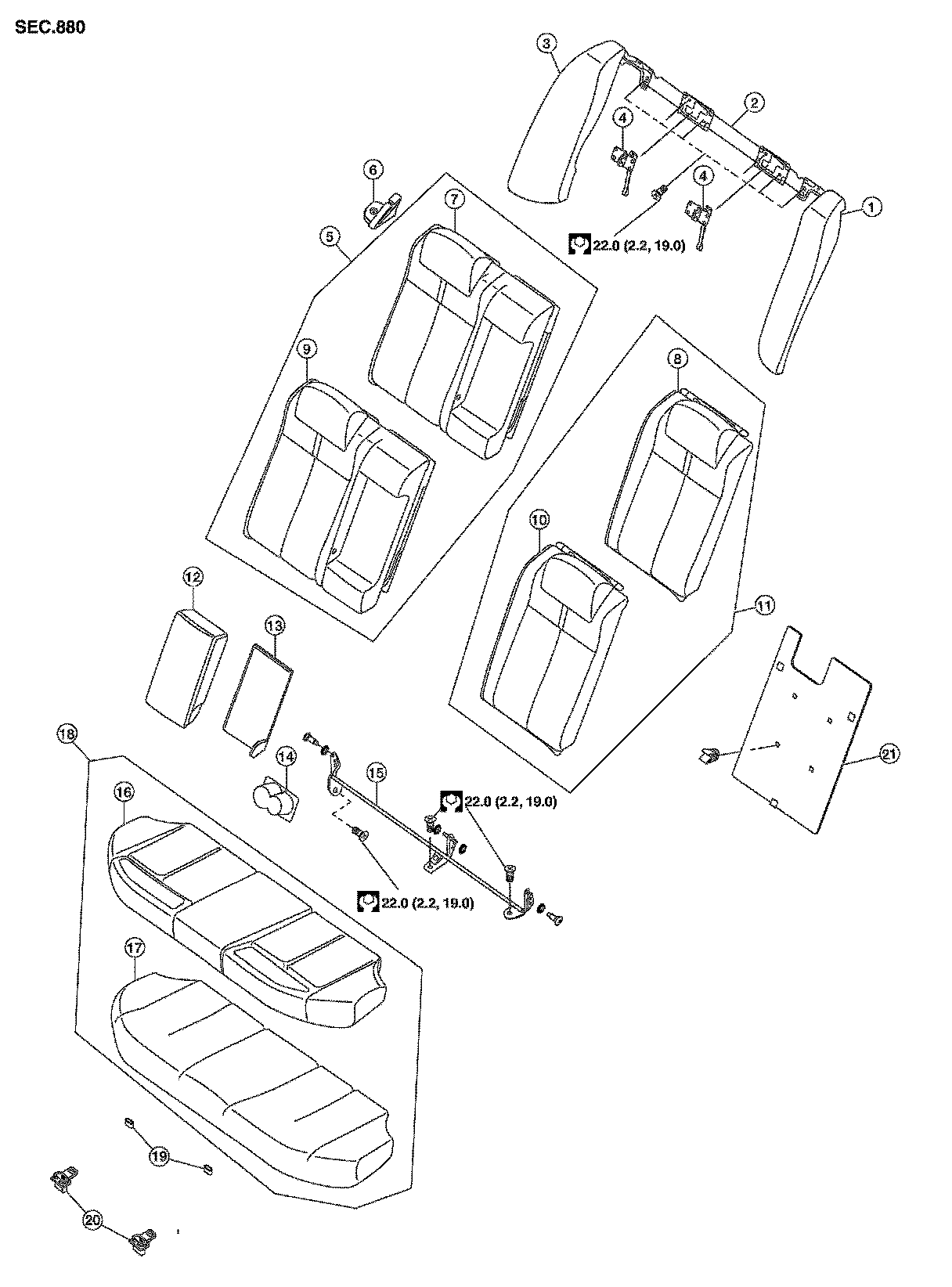

Exploded View


BENCH SEAT

SE
