Altima L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Service and Repair
>>
Removal and Replacement
>>
Front Seat
>>
Exploded View
>>
Coupe
Coupe

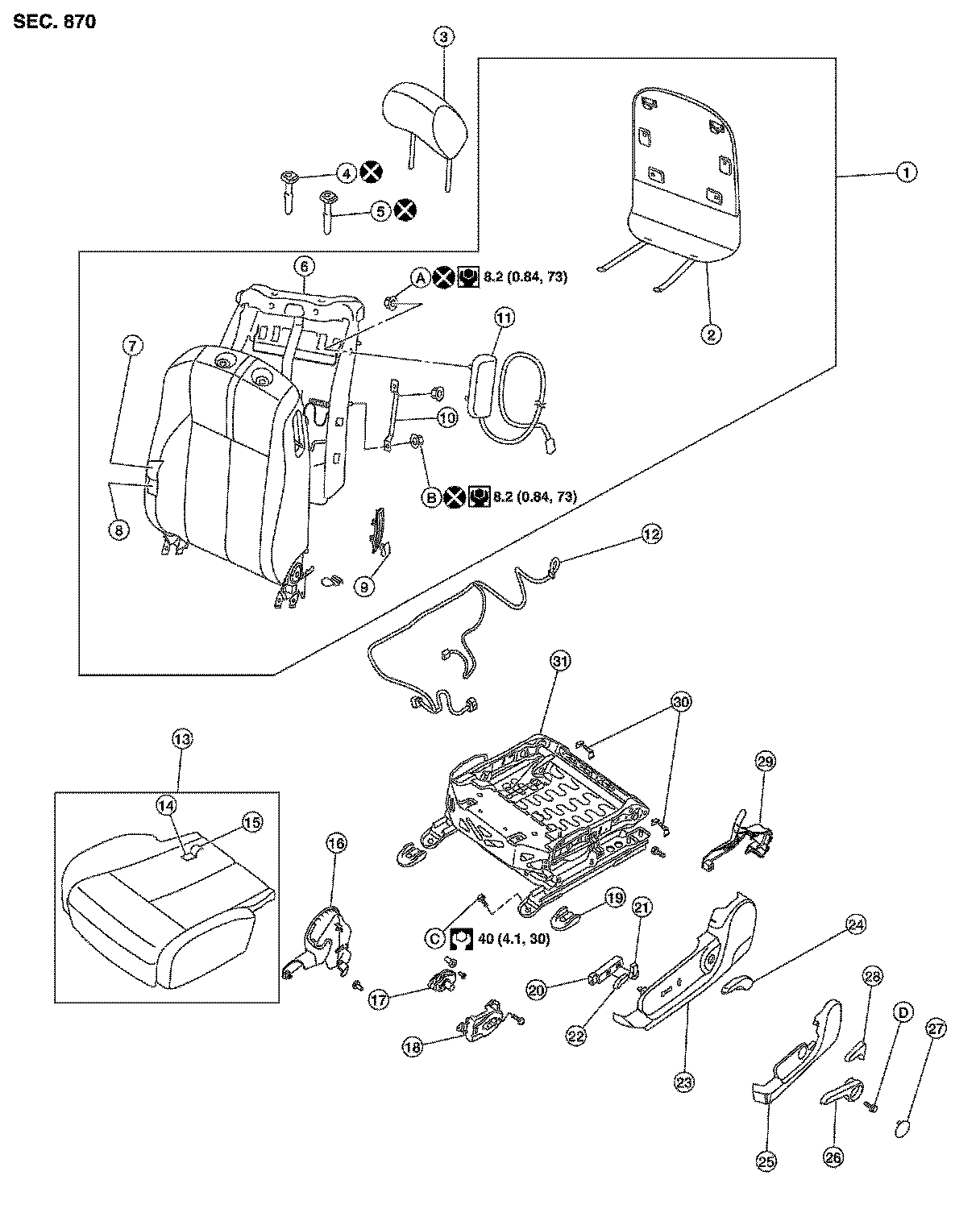

FRONT SEAT
Exploded View

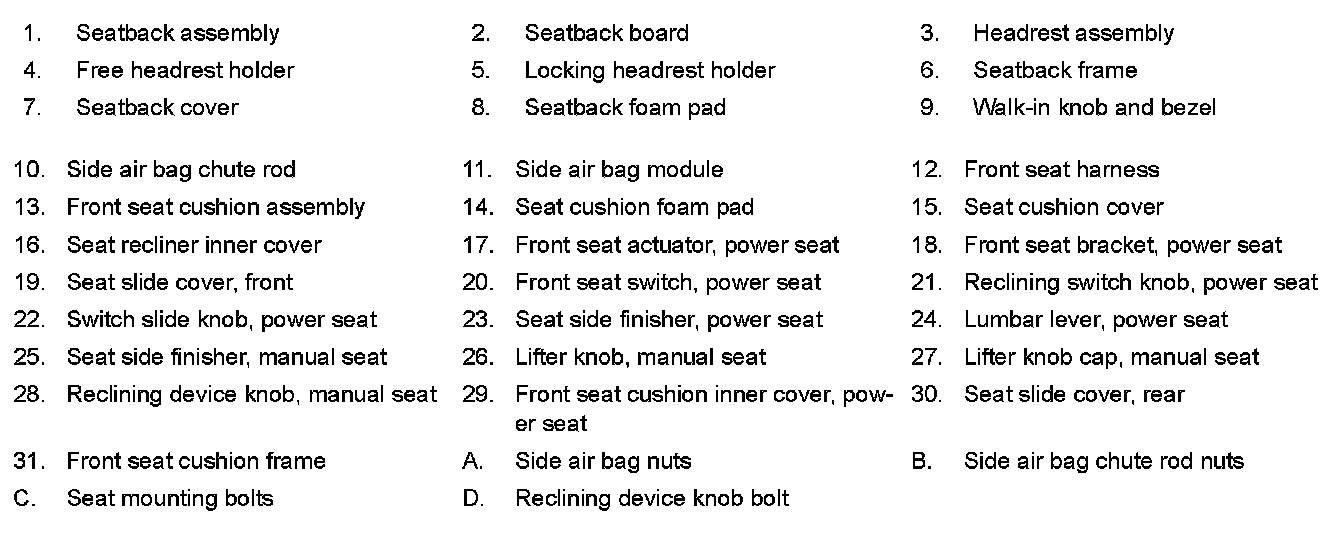

DRIVER'S SEAT
SE

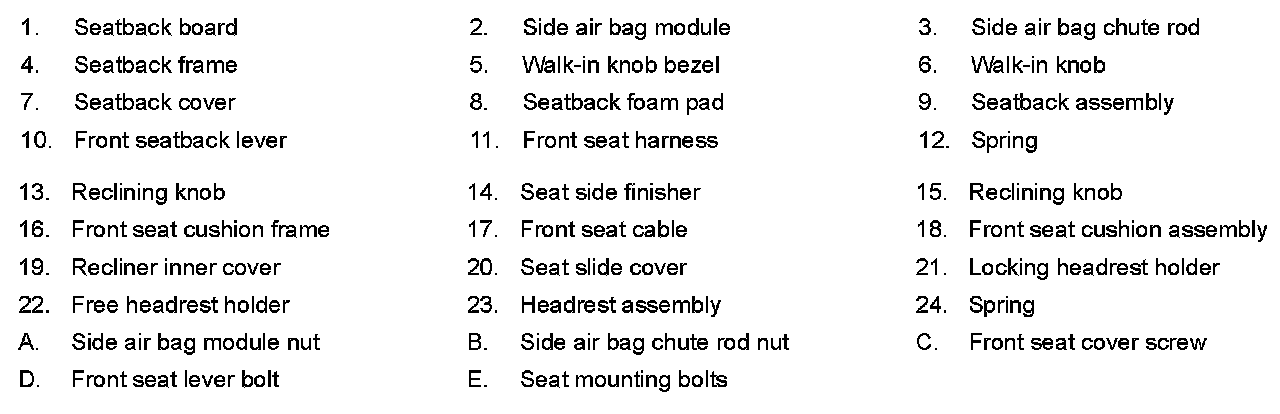

PASSENGER'S SEAT
