Home >> Nissan-Datsun >> 2012 >> Altima L4-2.5L (QR25DE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Heated Seat >> Coupe

Coupe




HEATED SEAT

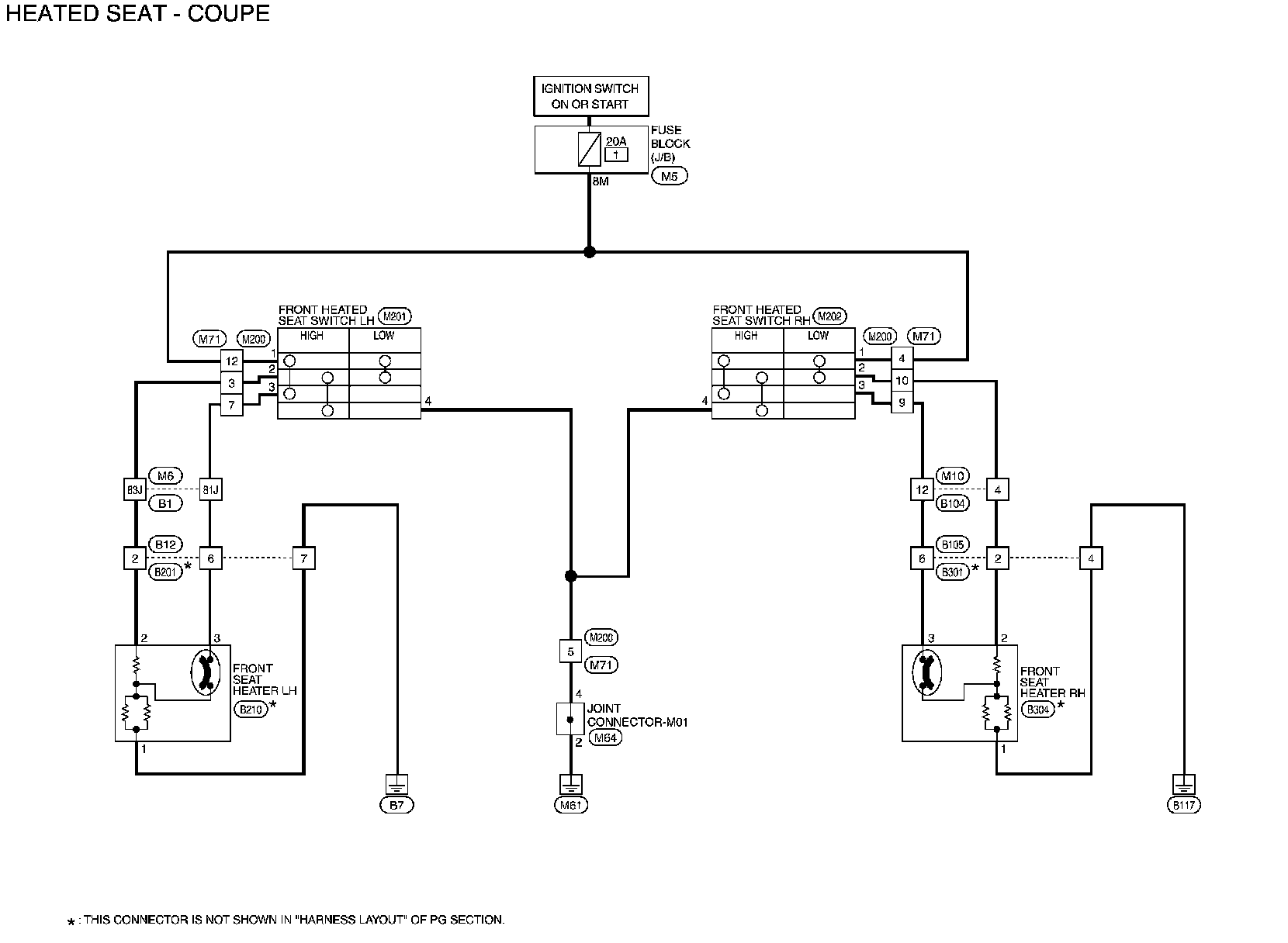

Wiring Diagram - Coupe

SE










SE










SE
