Altima L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Sunroof / Moonroof
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Physical Values
Physical Values

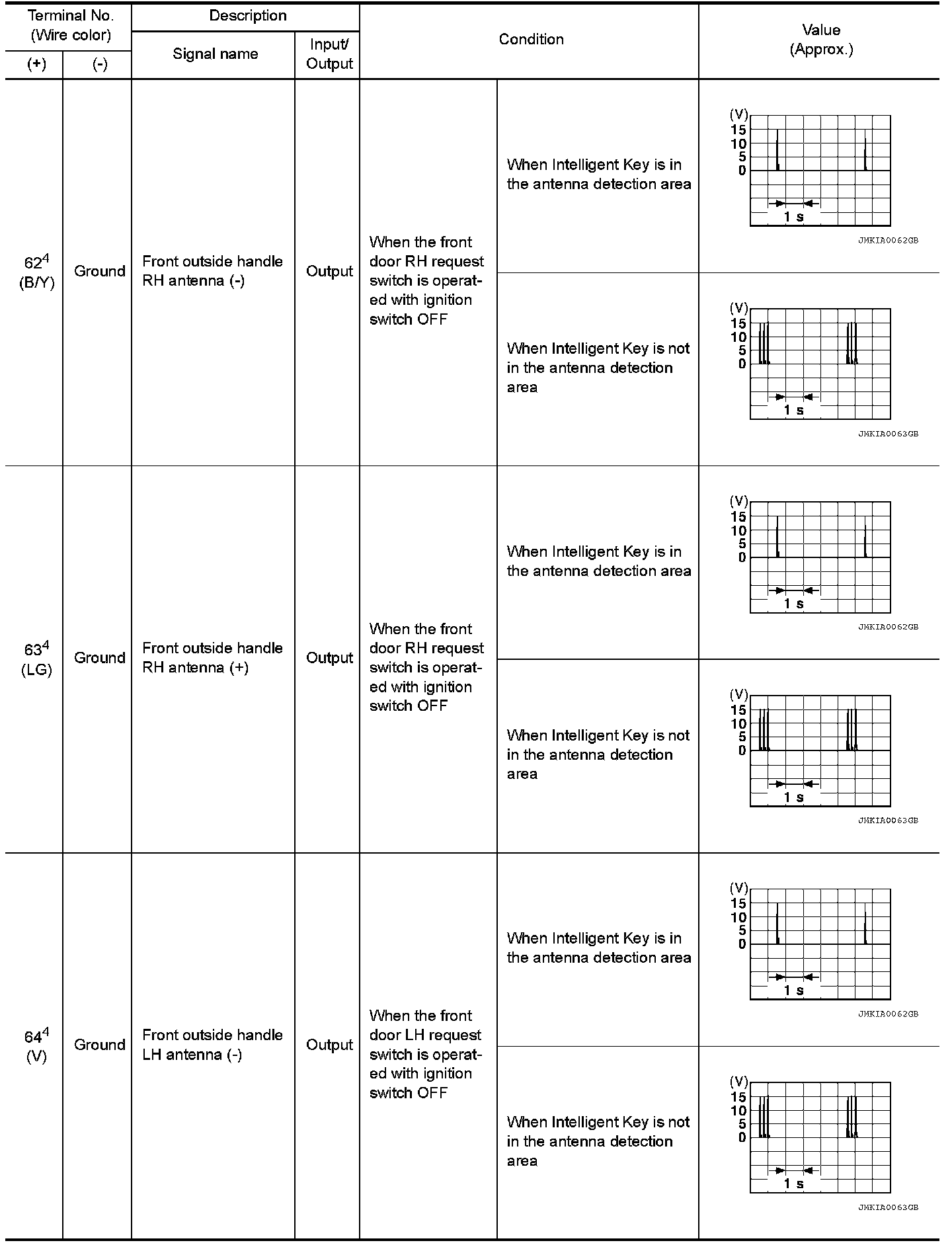

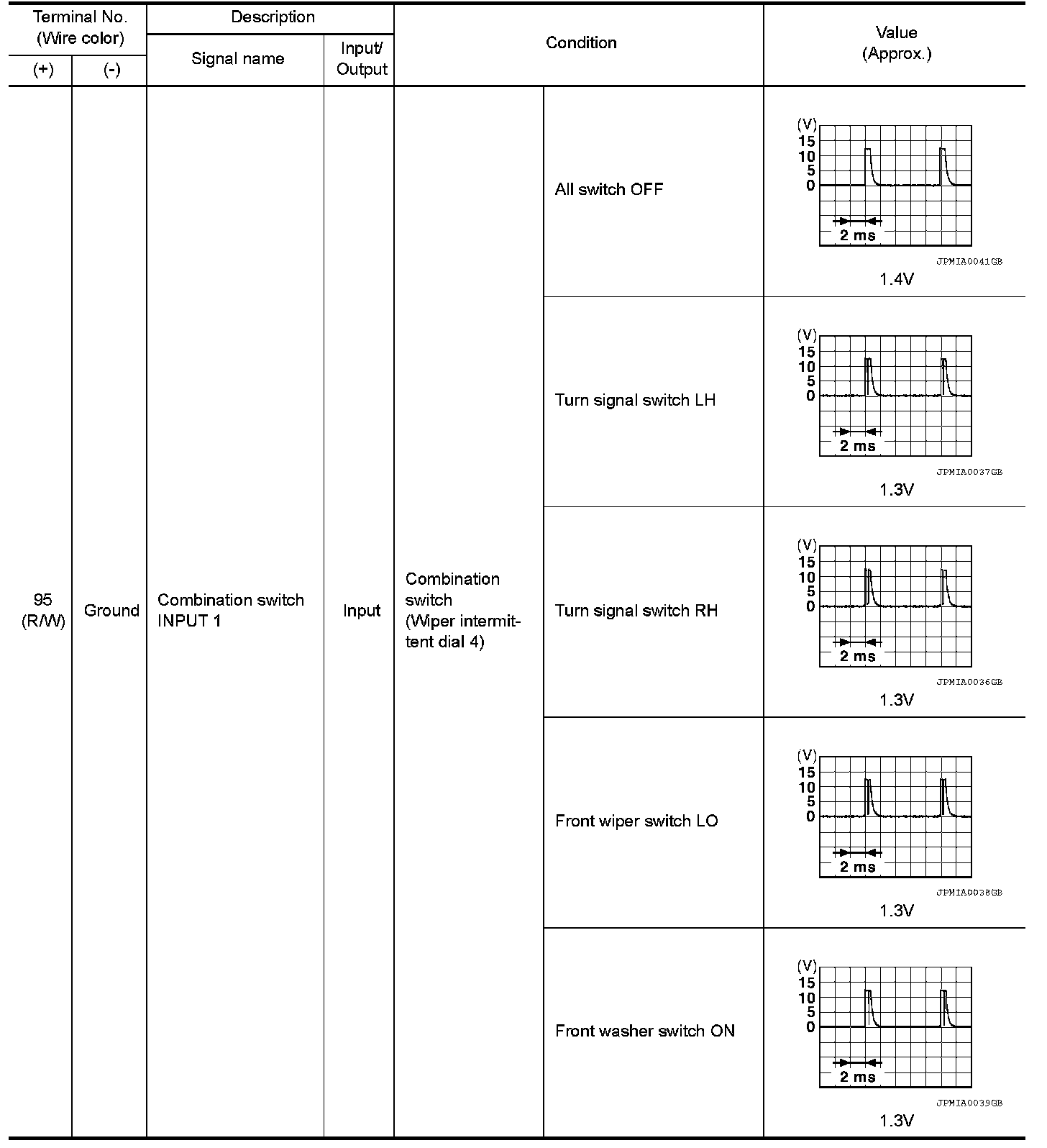

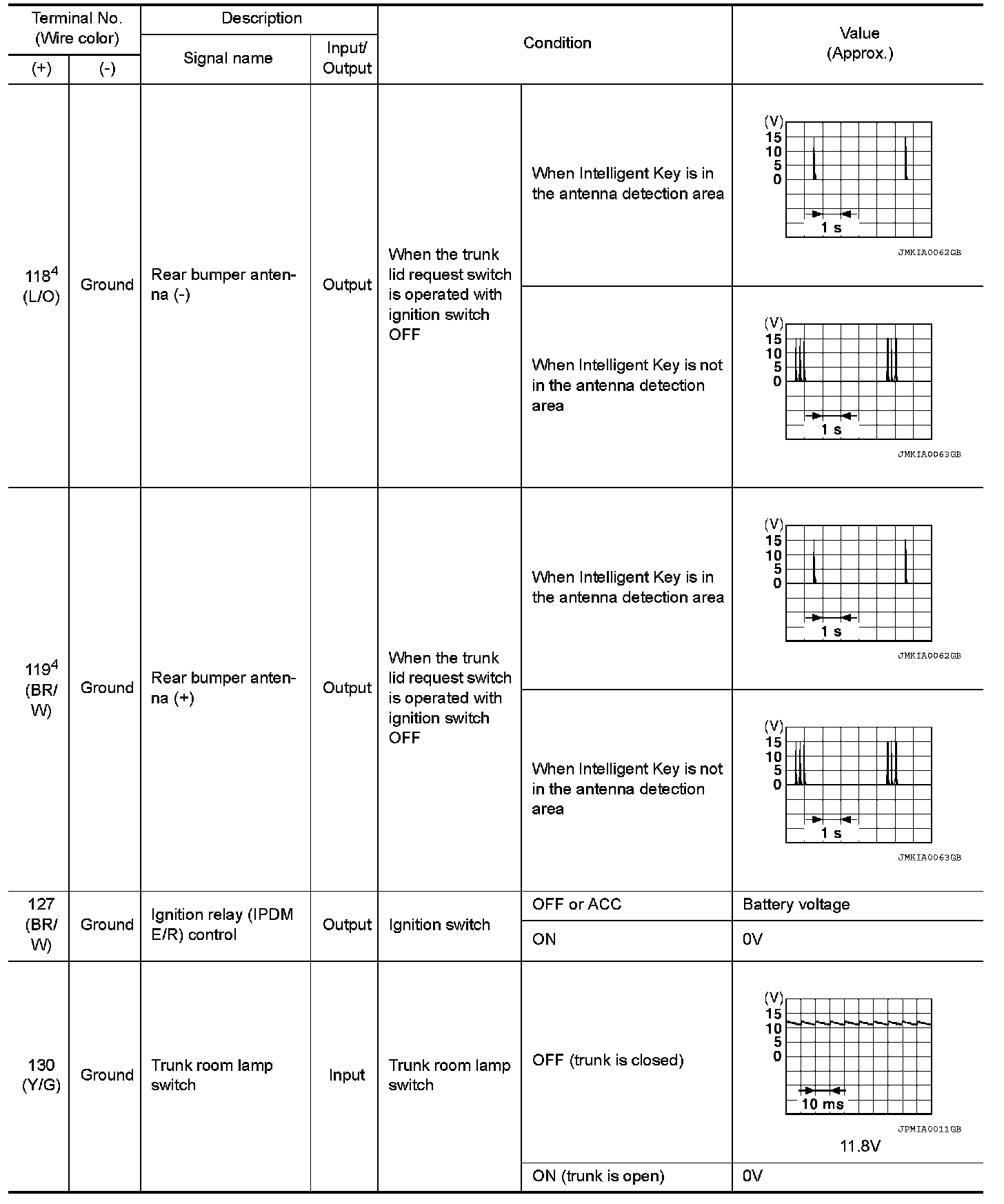

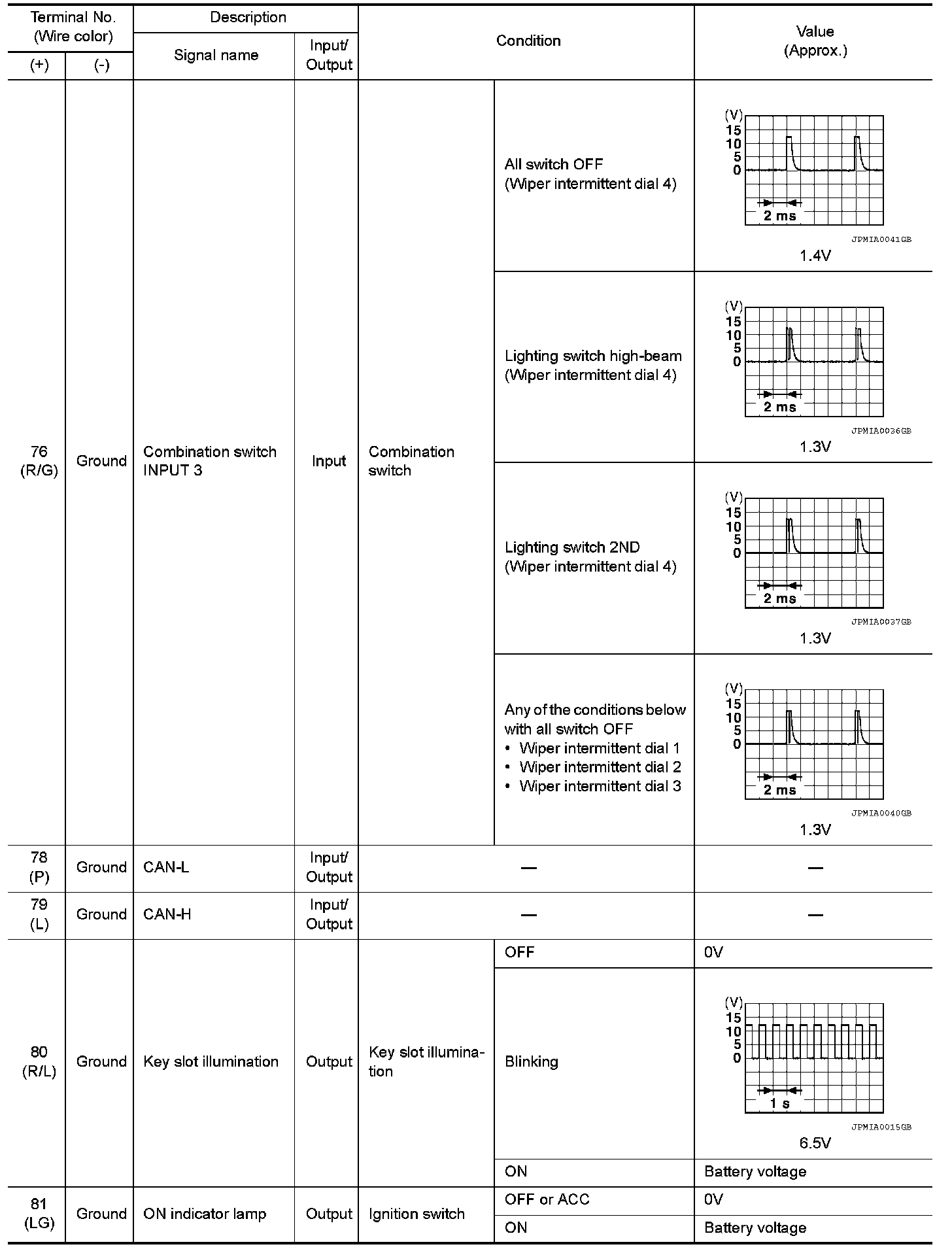

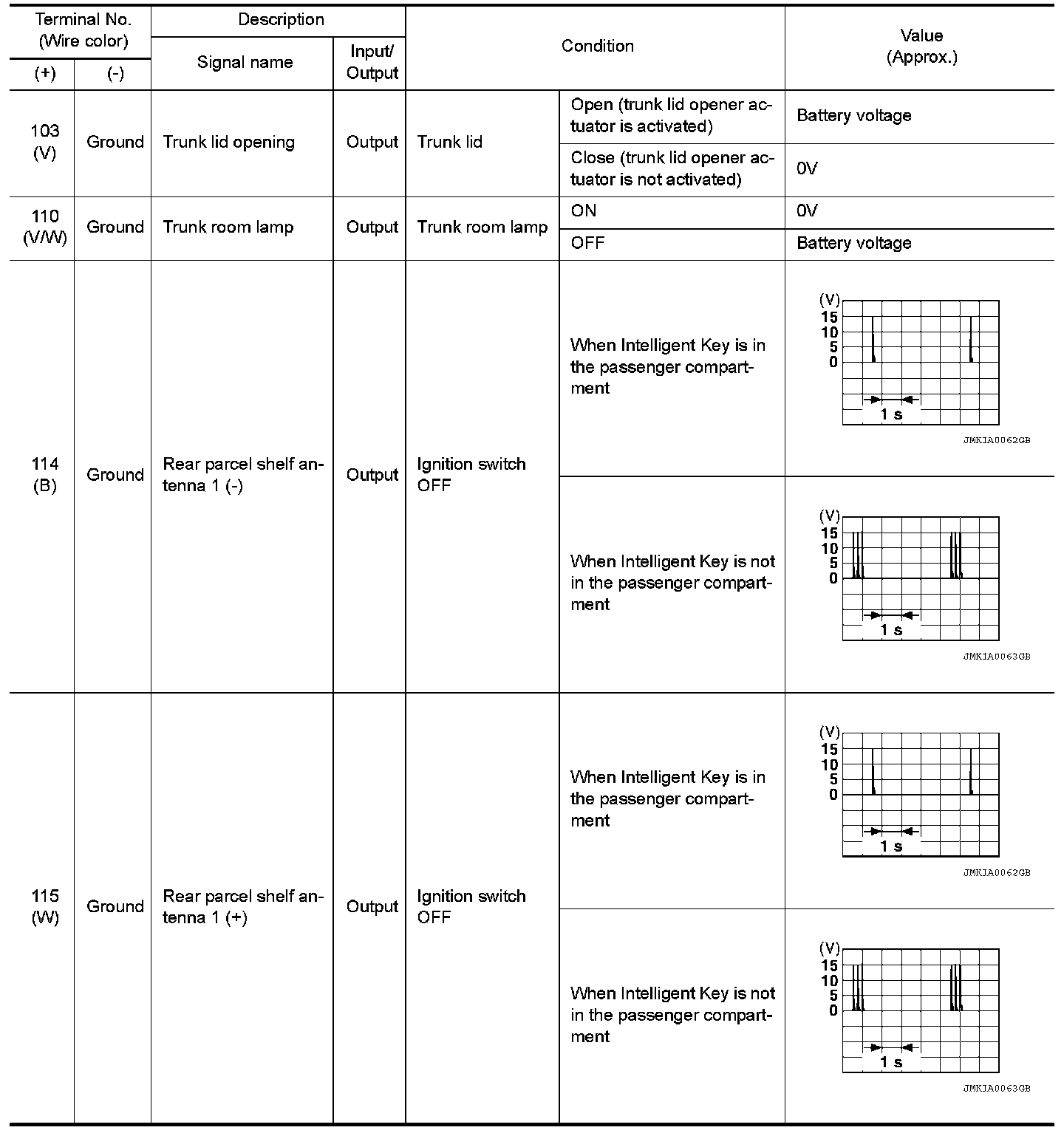

BCM
(BODY CONTROL MODULE)

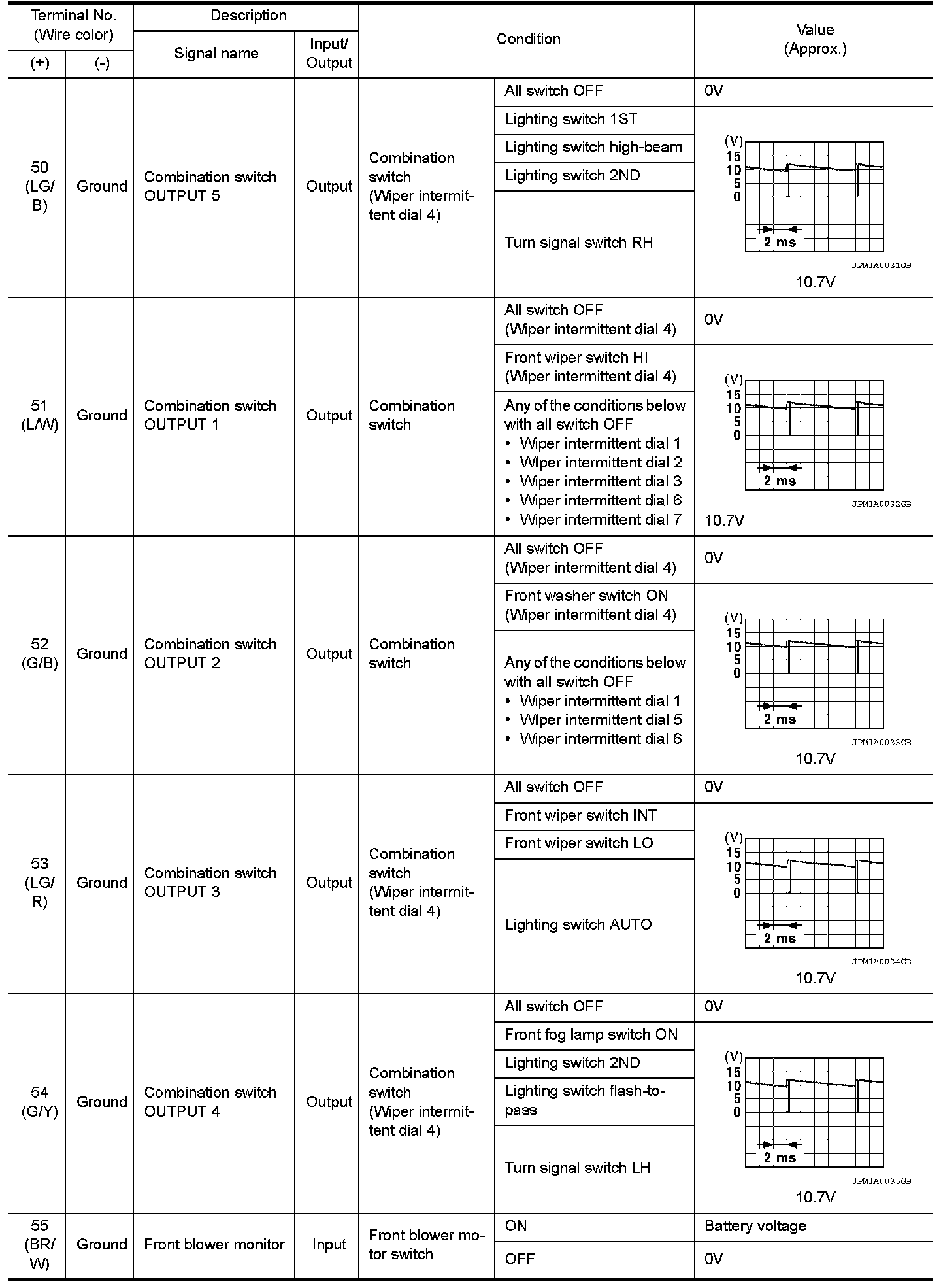

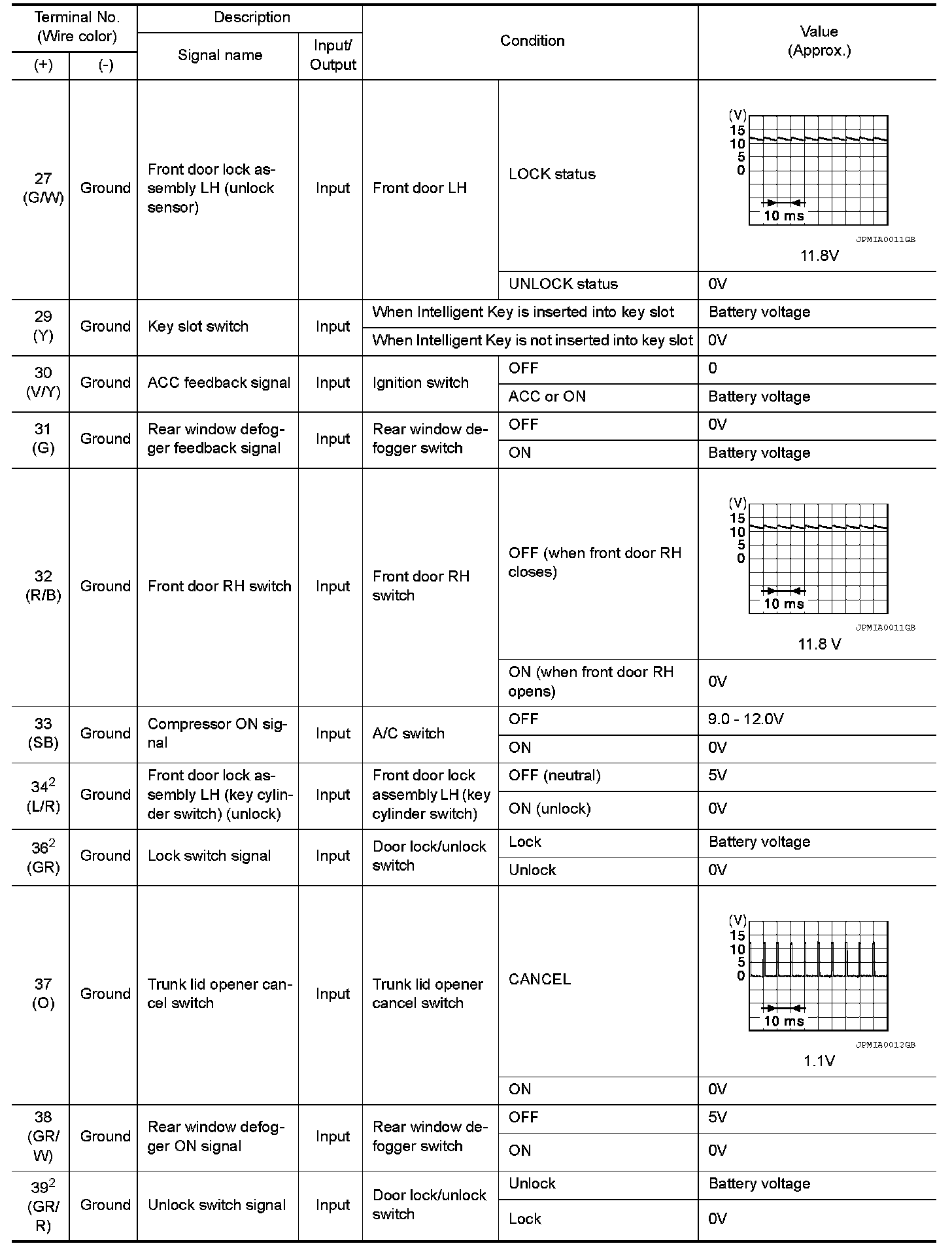

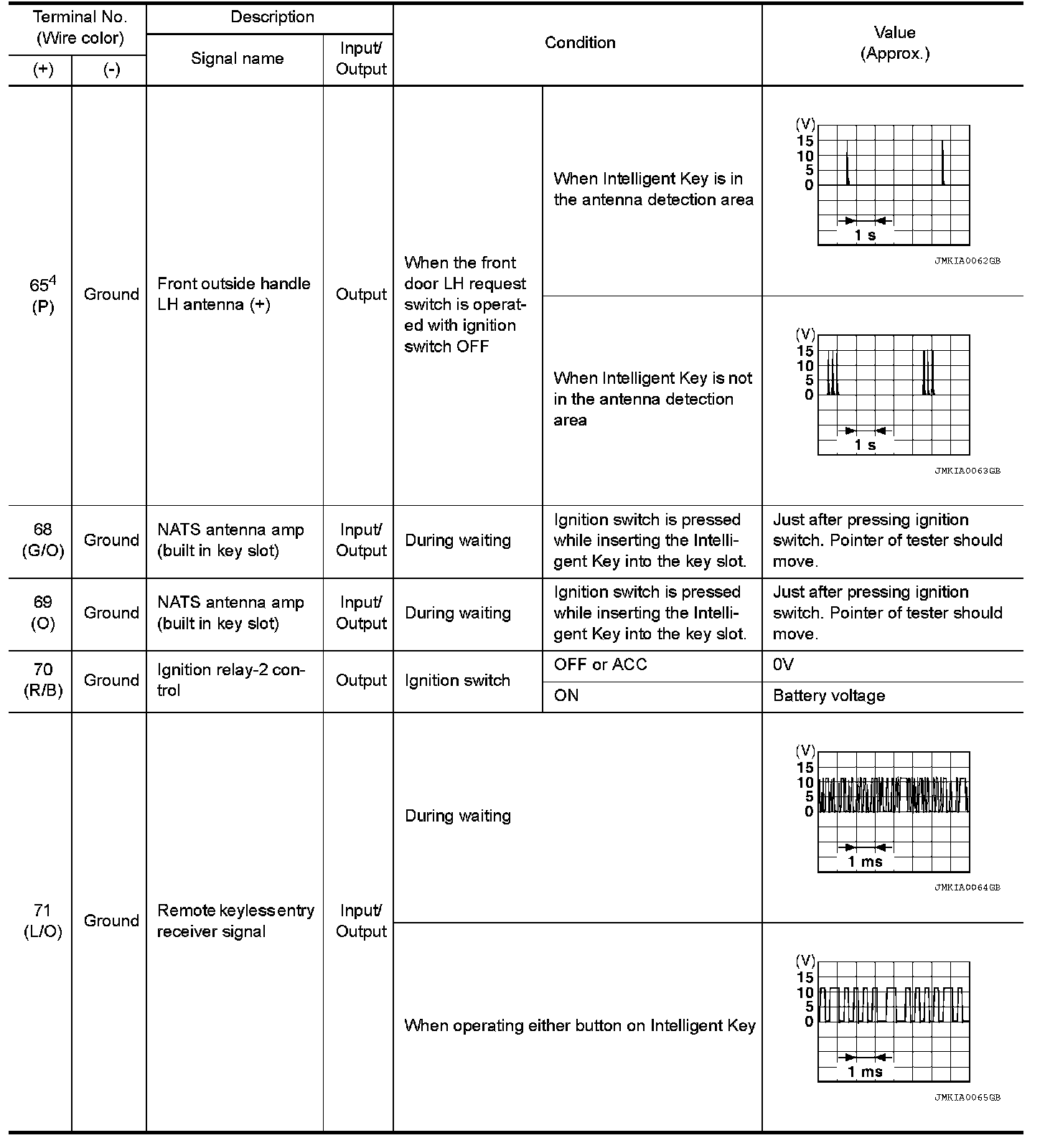

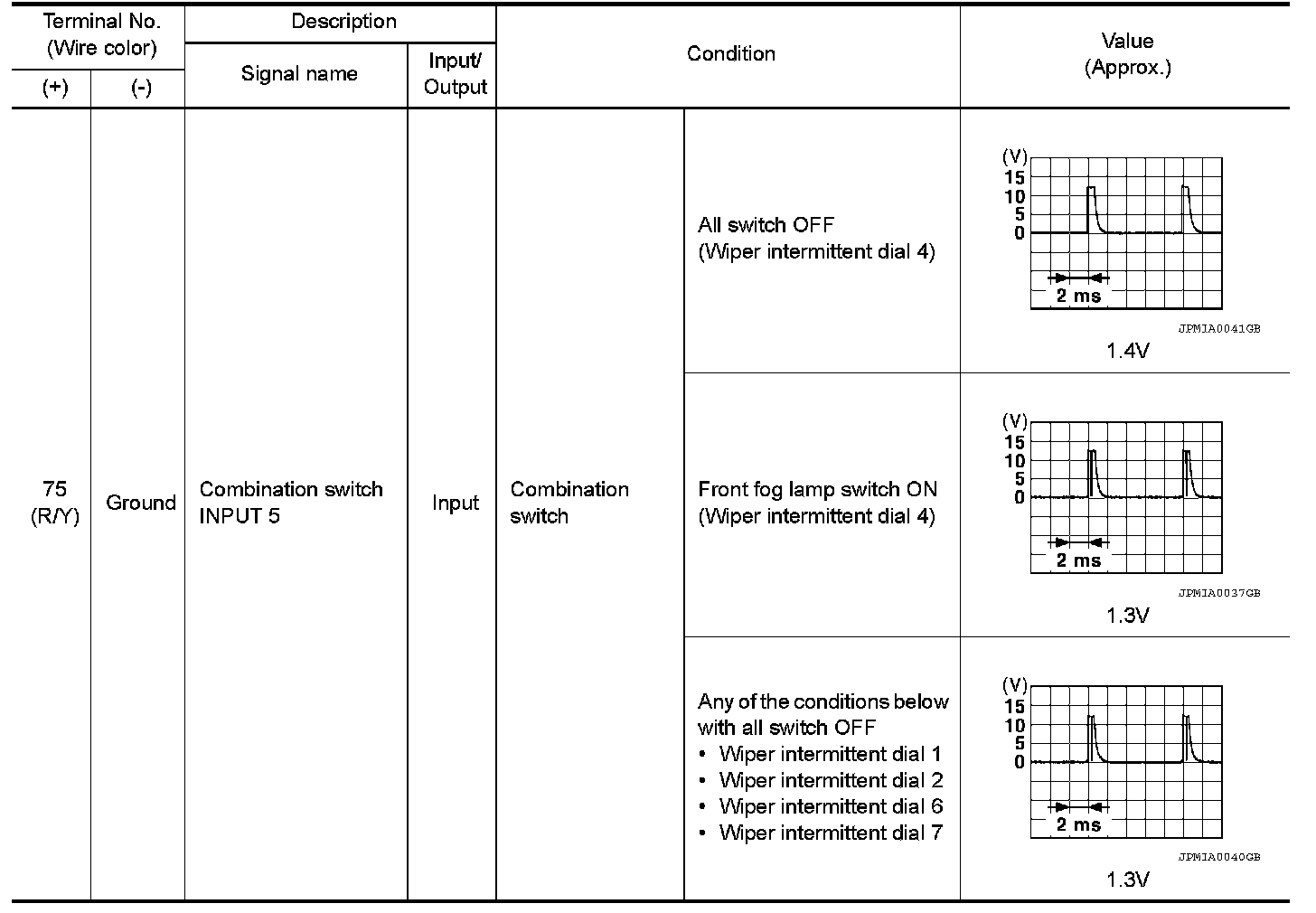

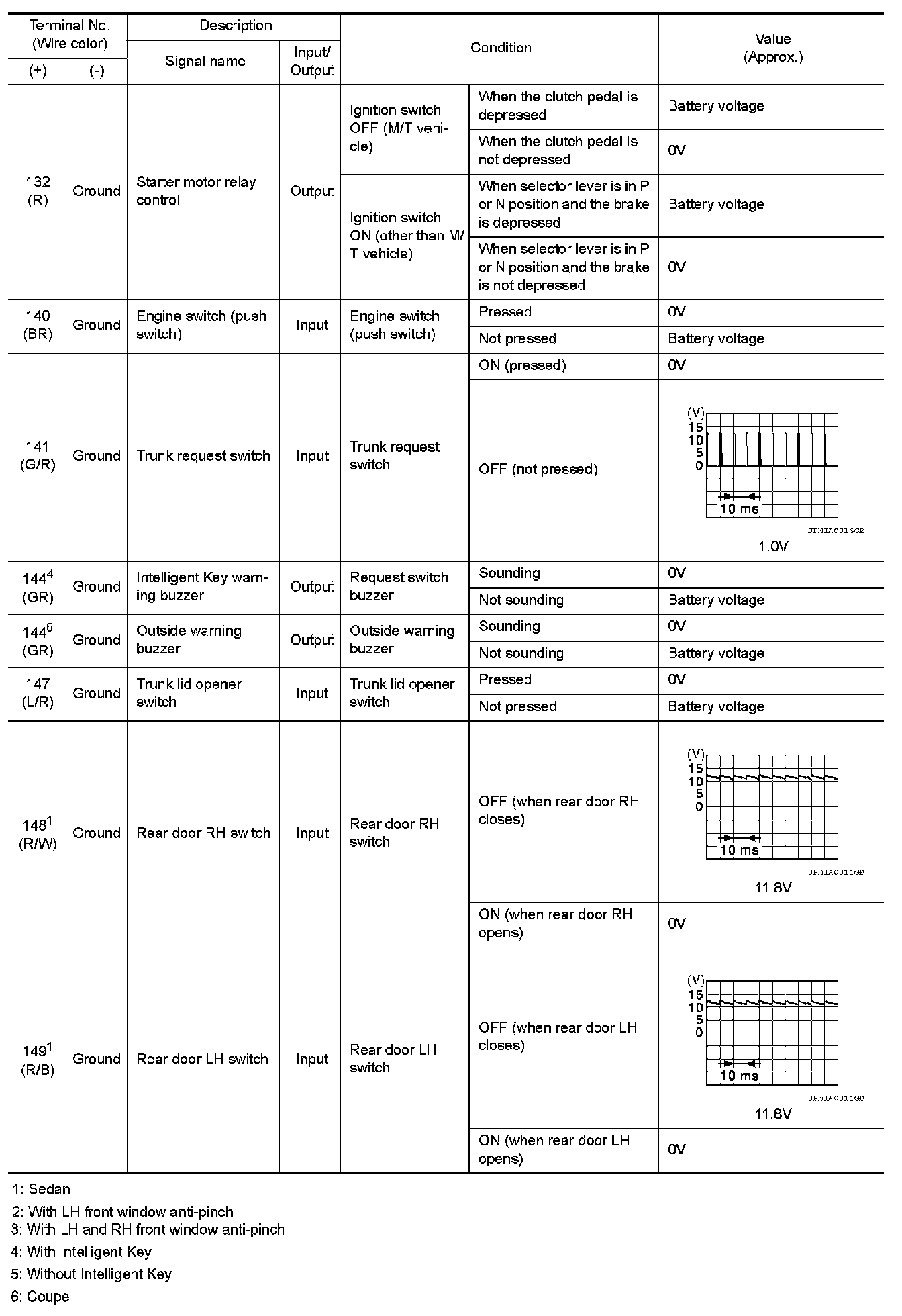

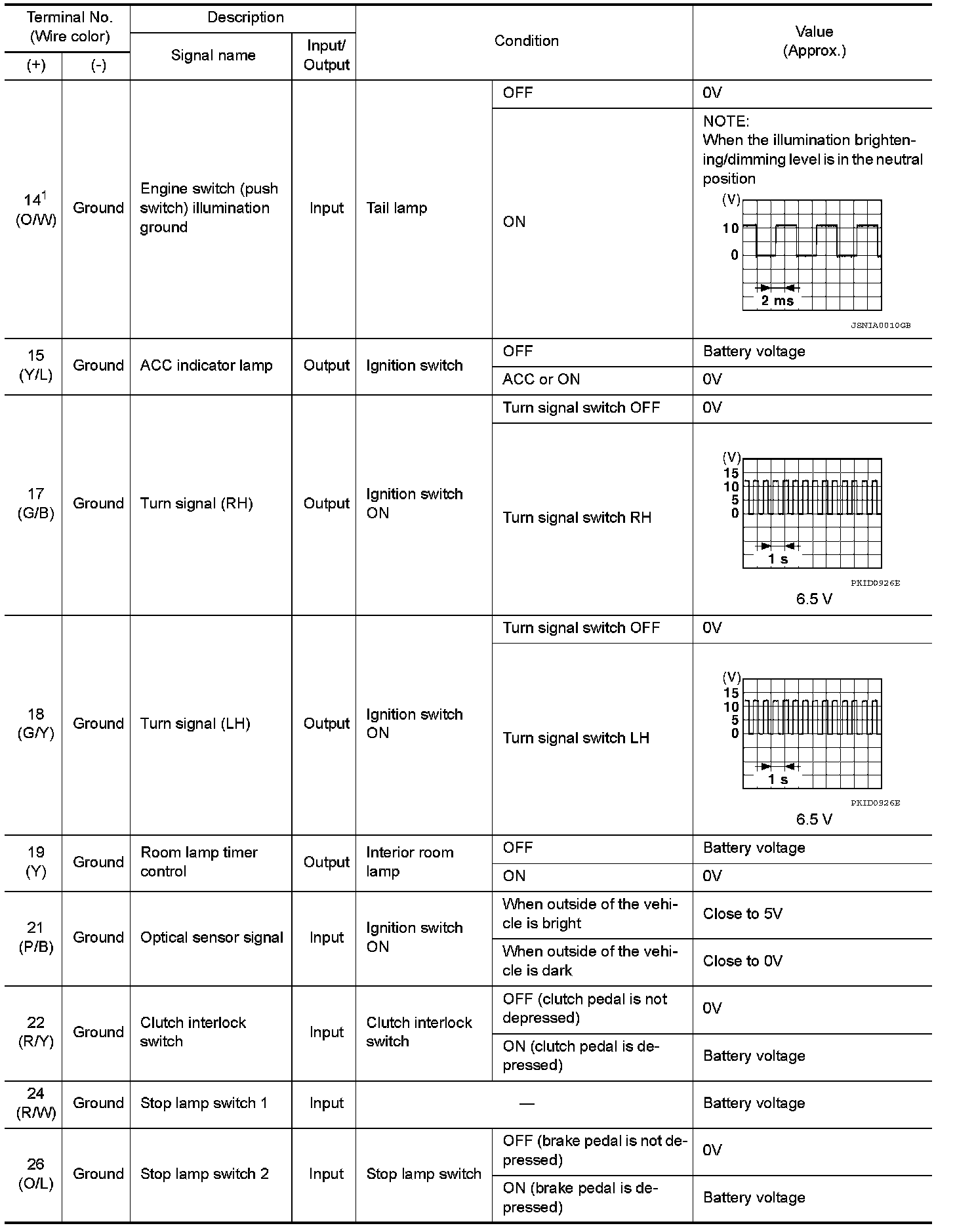

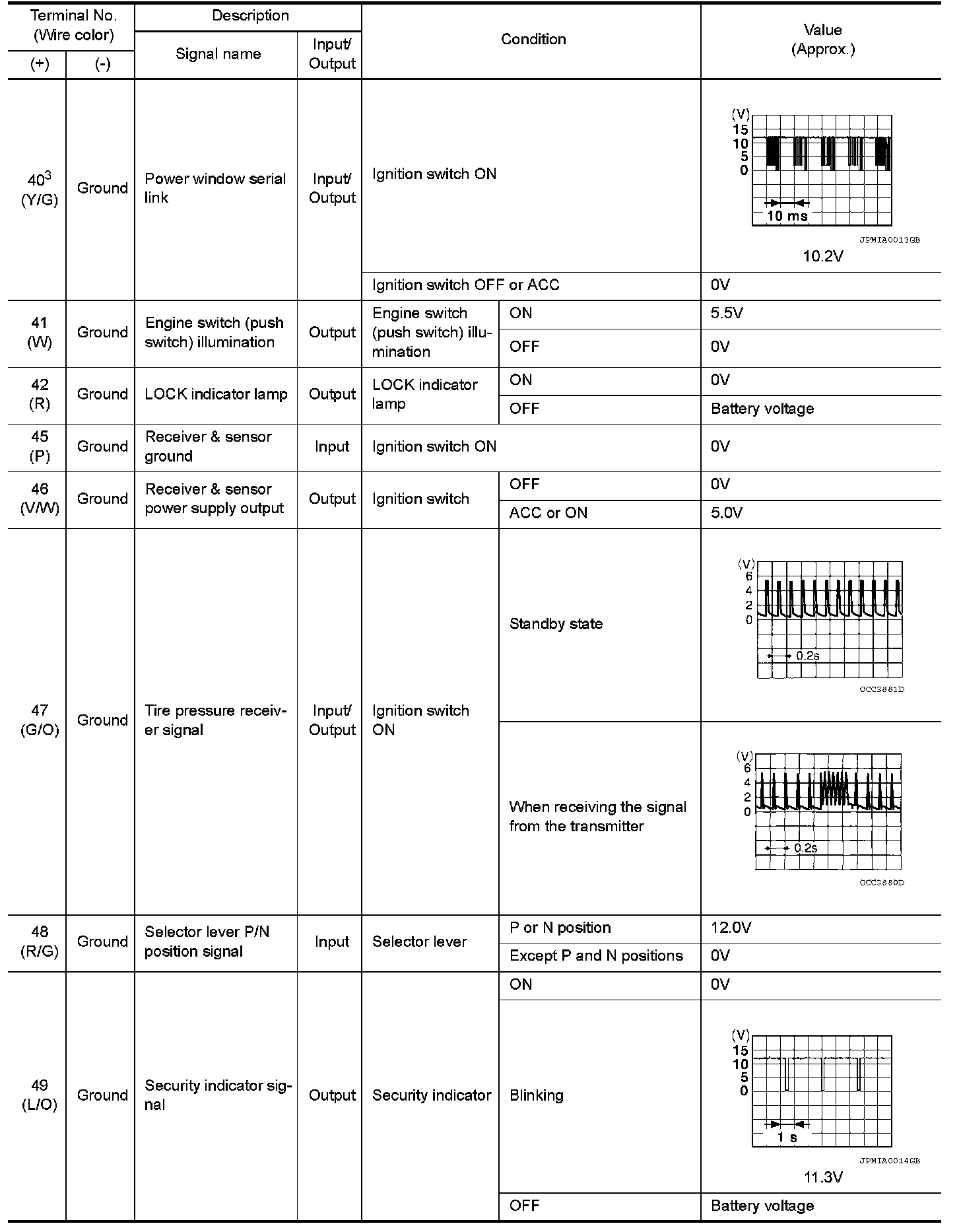

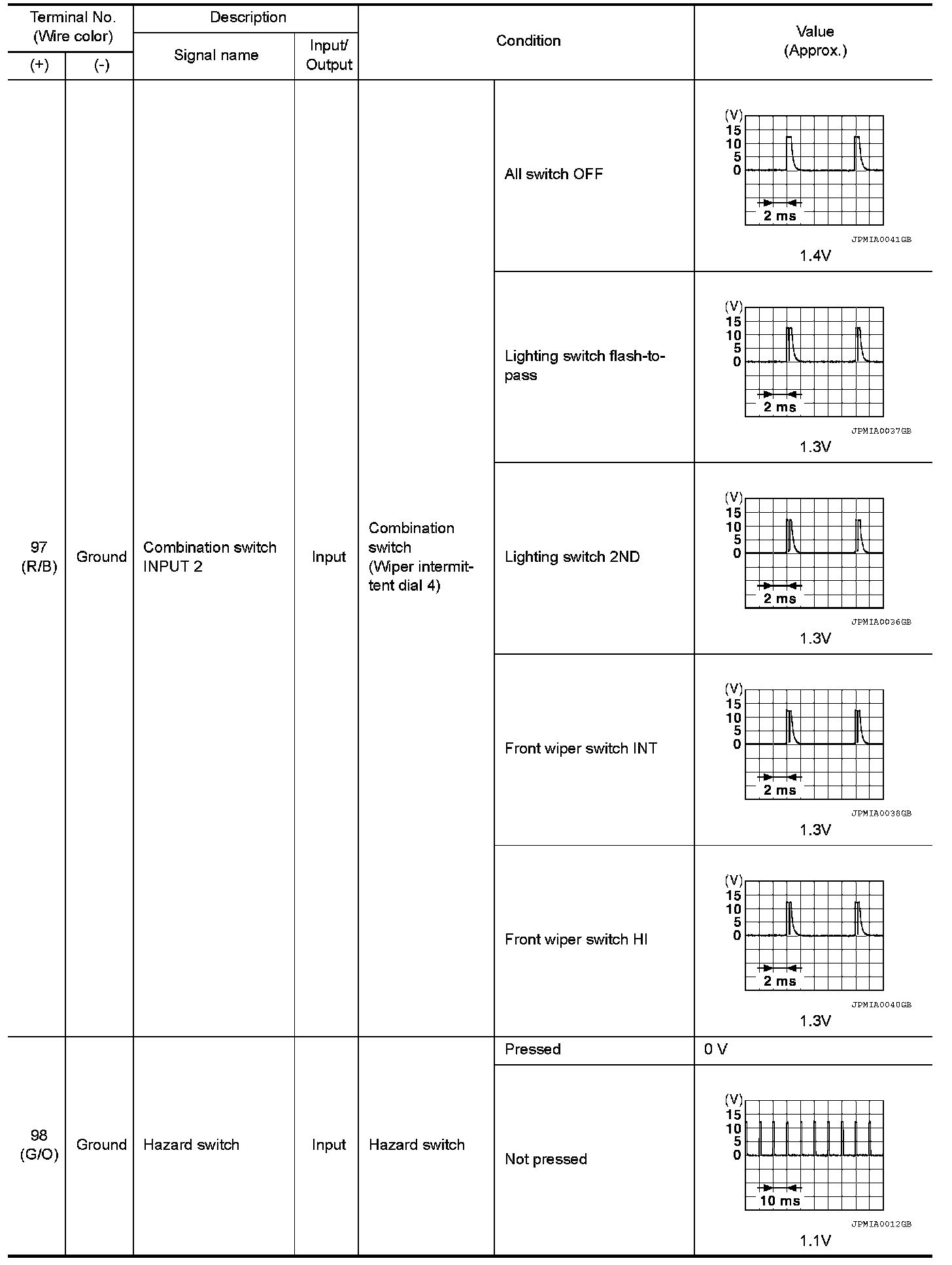

Physical Values
1: Sedan
2: With LH front window anti-pinch
3: With LH and RH front window anti-pinch
4: With Intelligent Key
5: Without Intelligent Key
6: Coupe
