Home >> Nissan-Datsun >> 2012 >> Altima L4-2.5L (QR25DE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Physical Values >> BCM Coupe

BCM Coupe




BCM (BODY CONTROL MODULE)

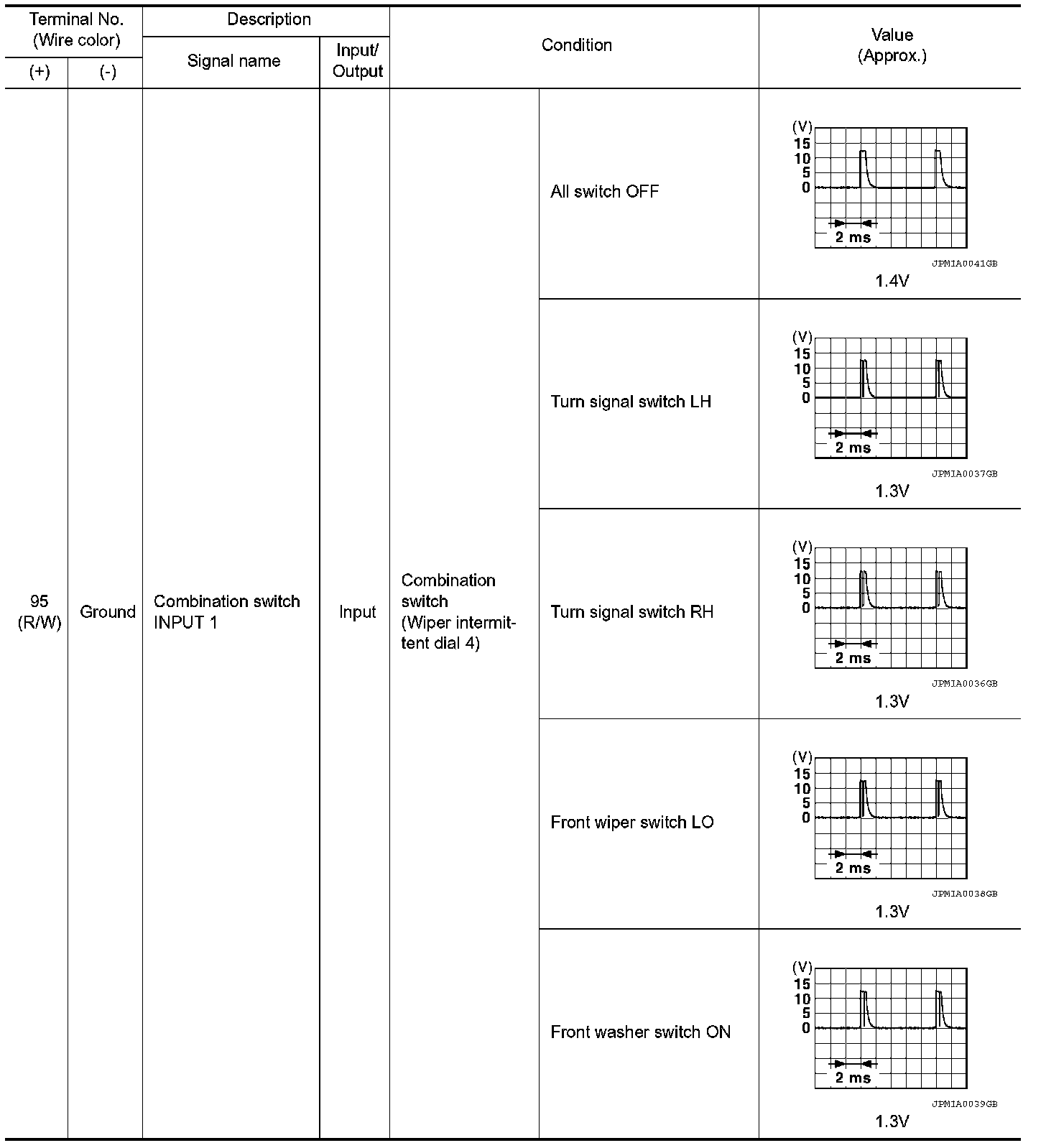

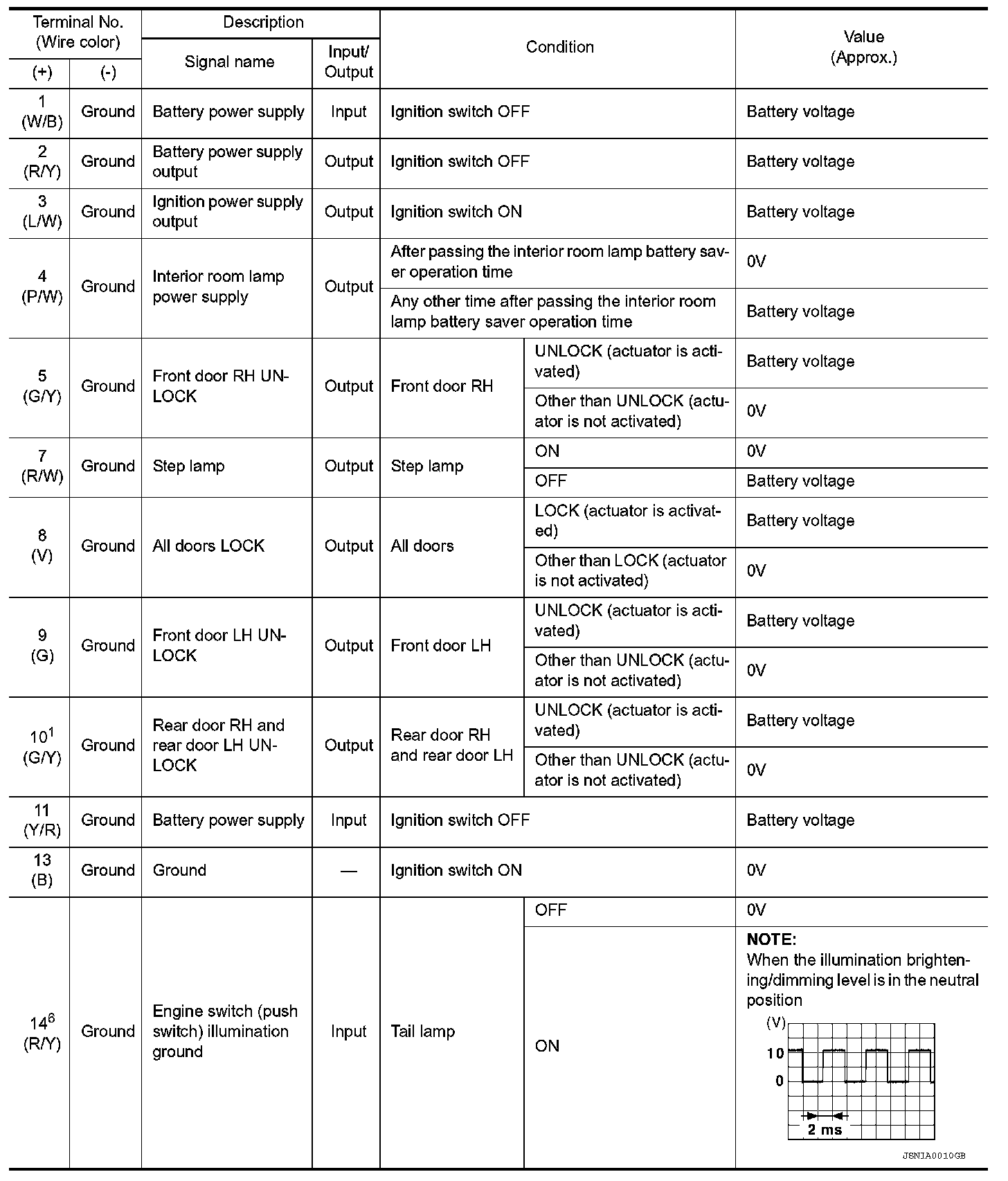

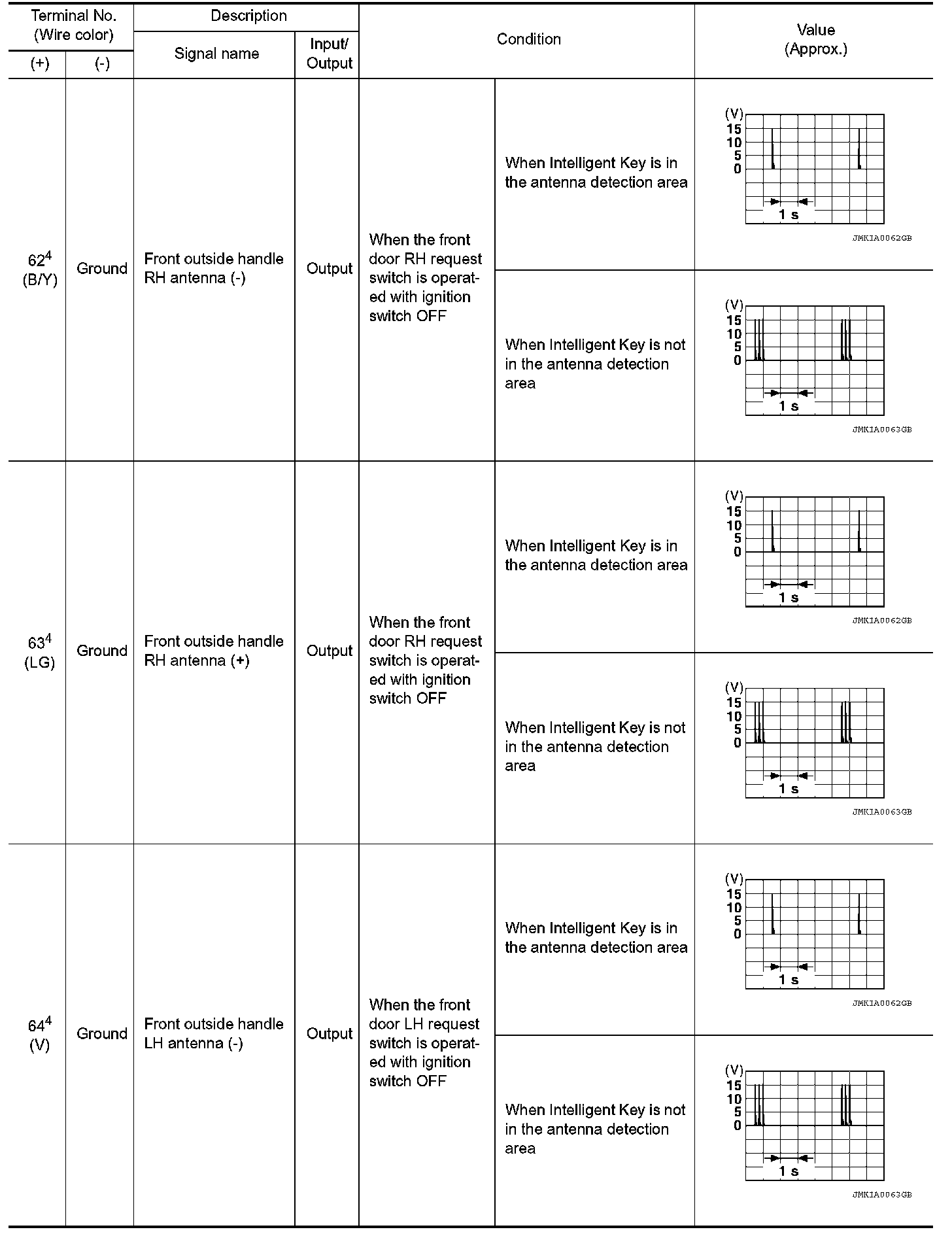

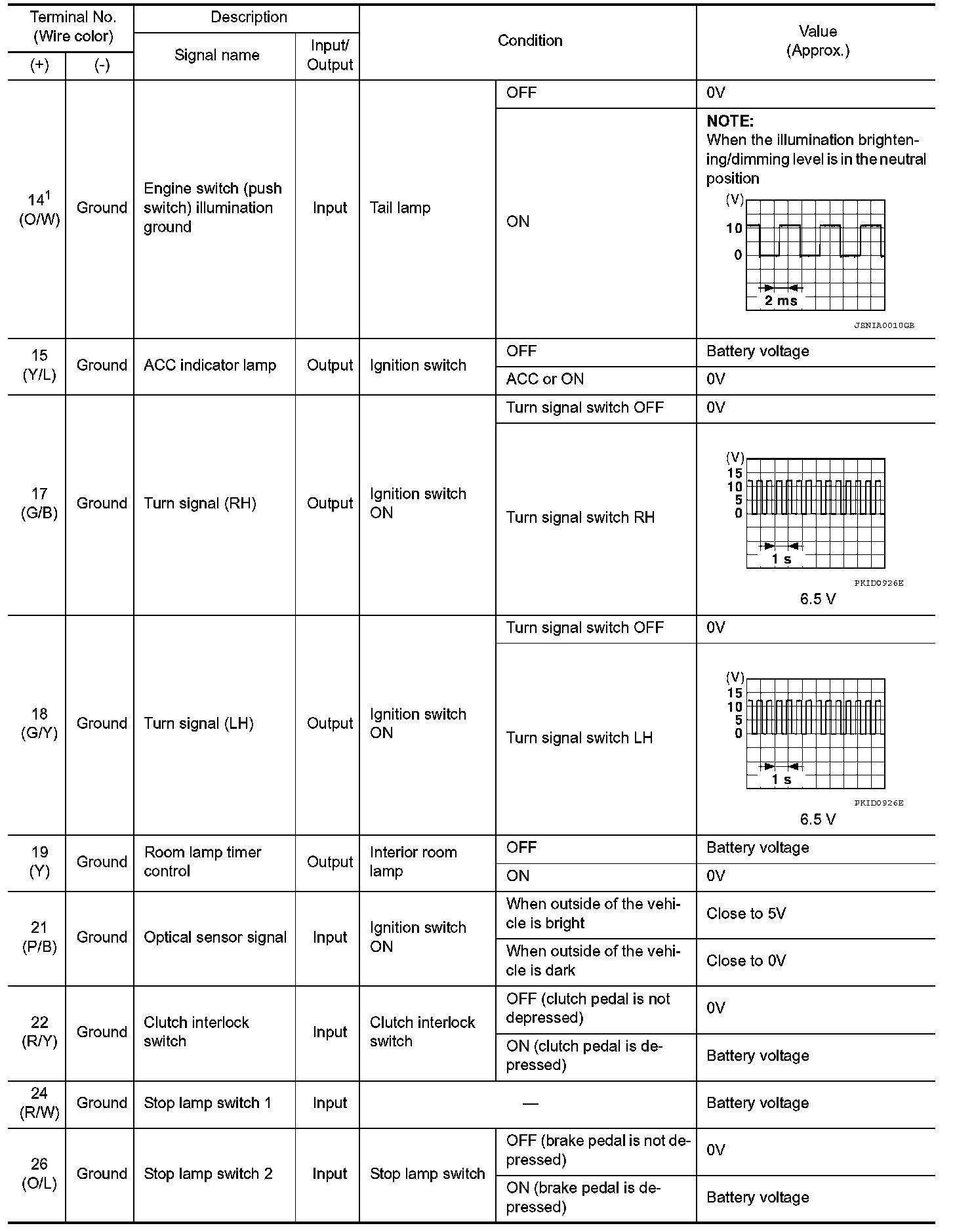

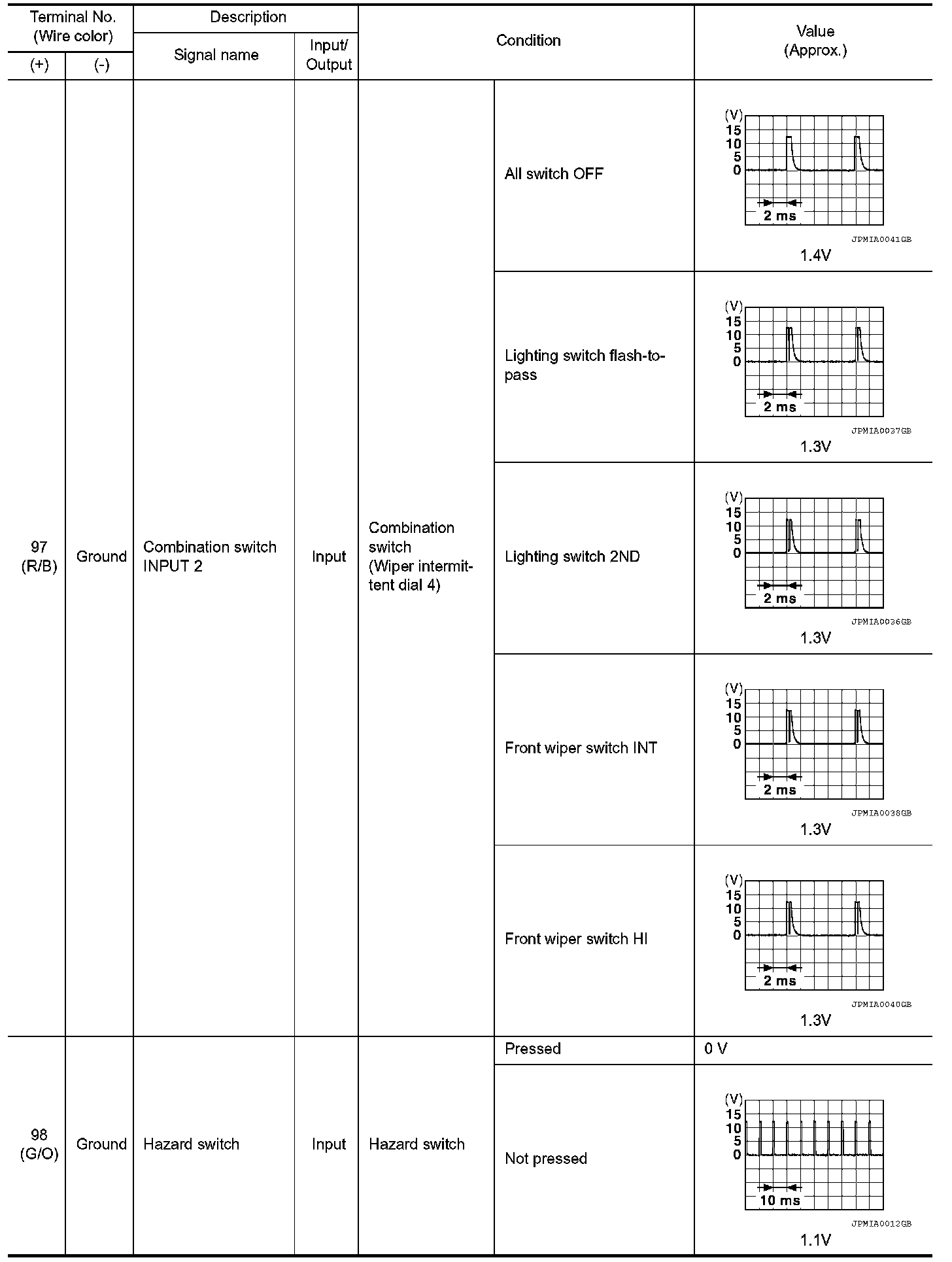

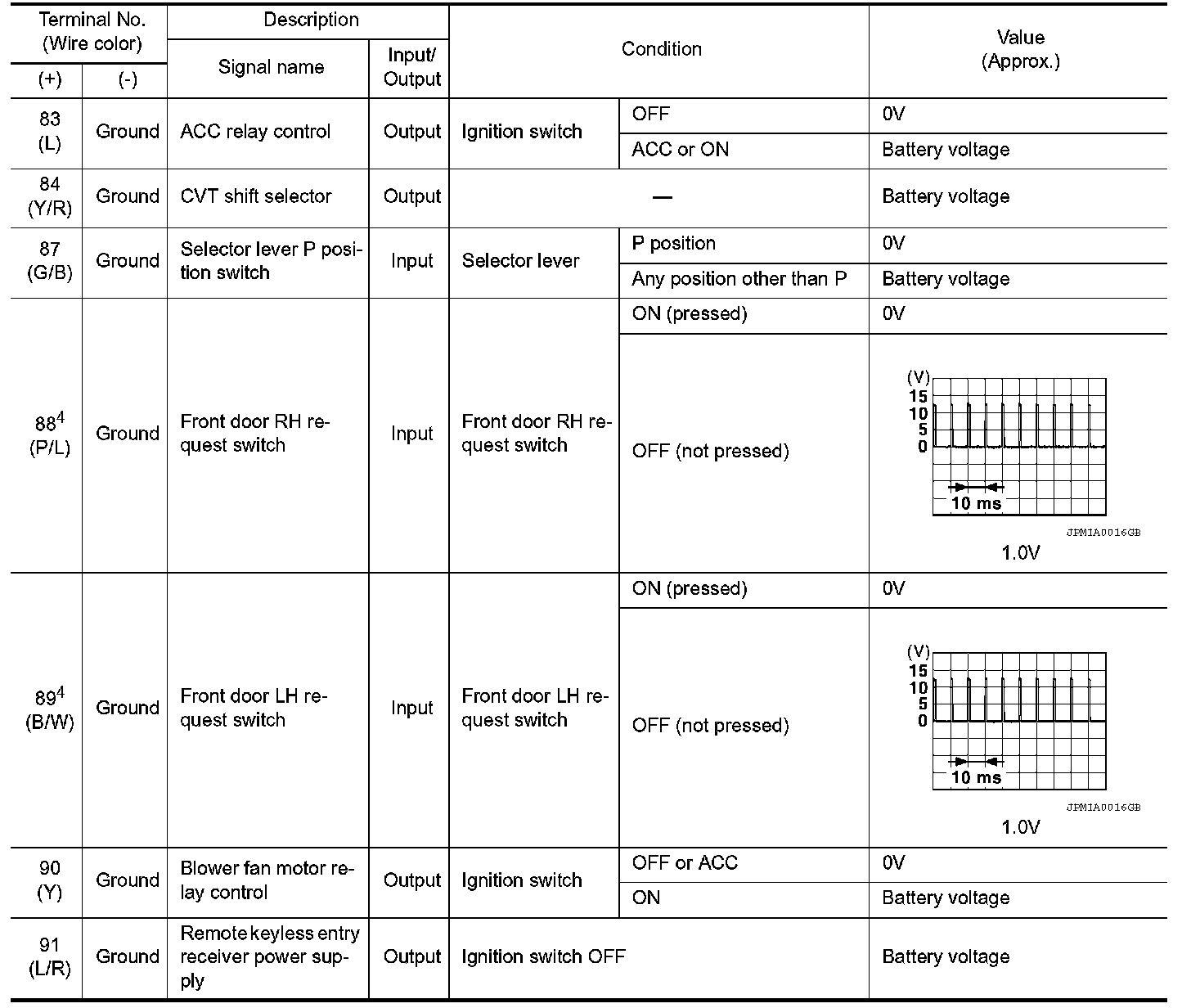

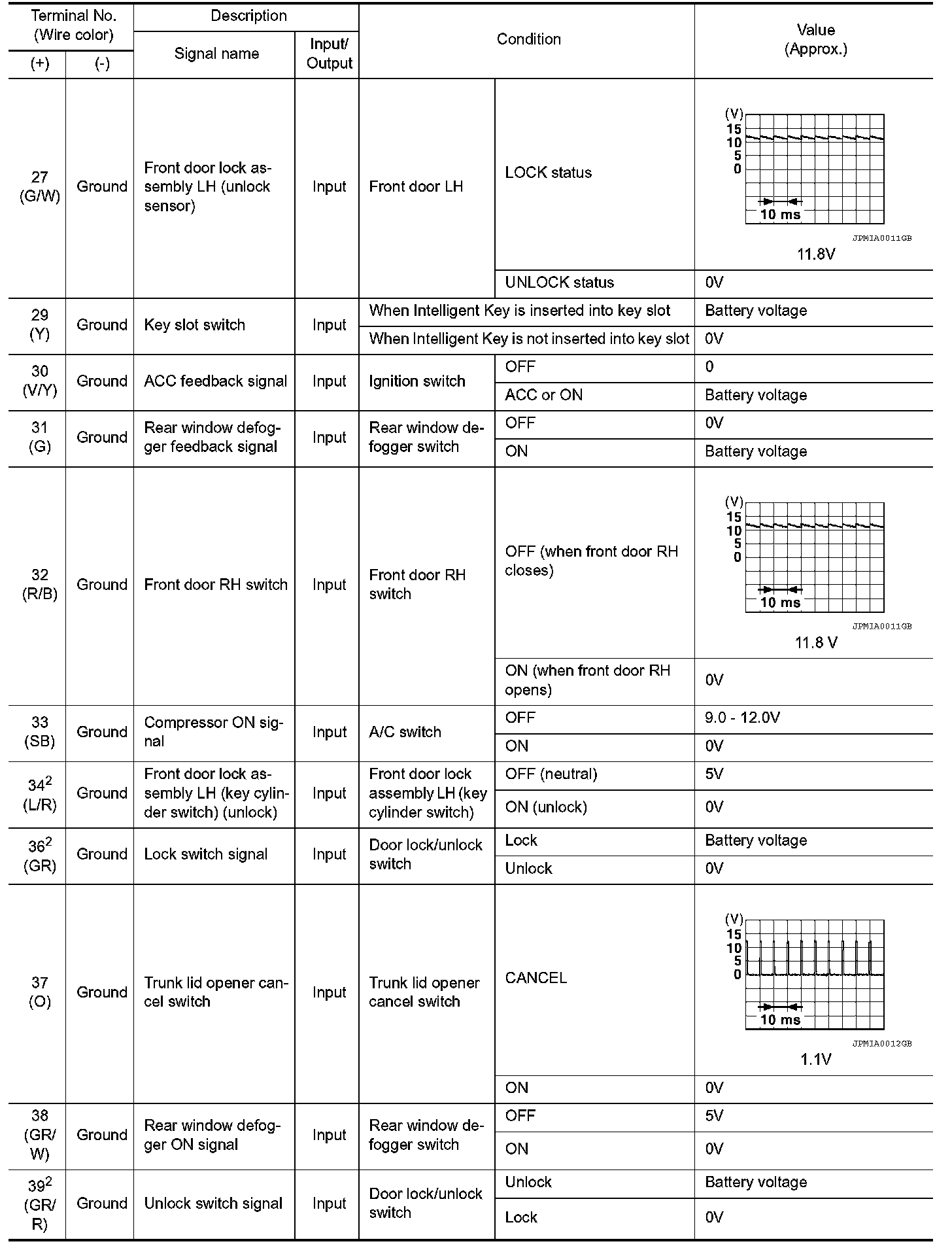

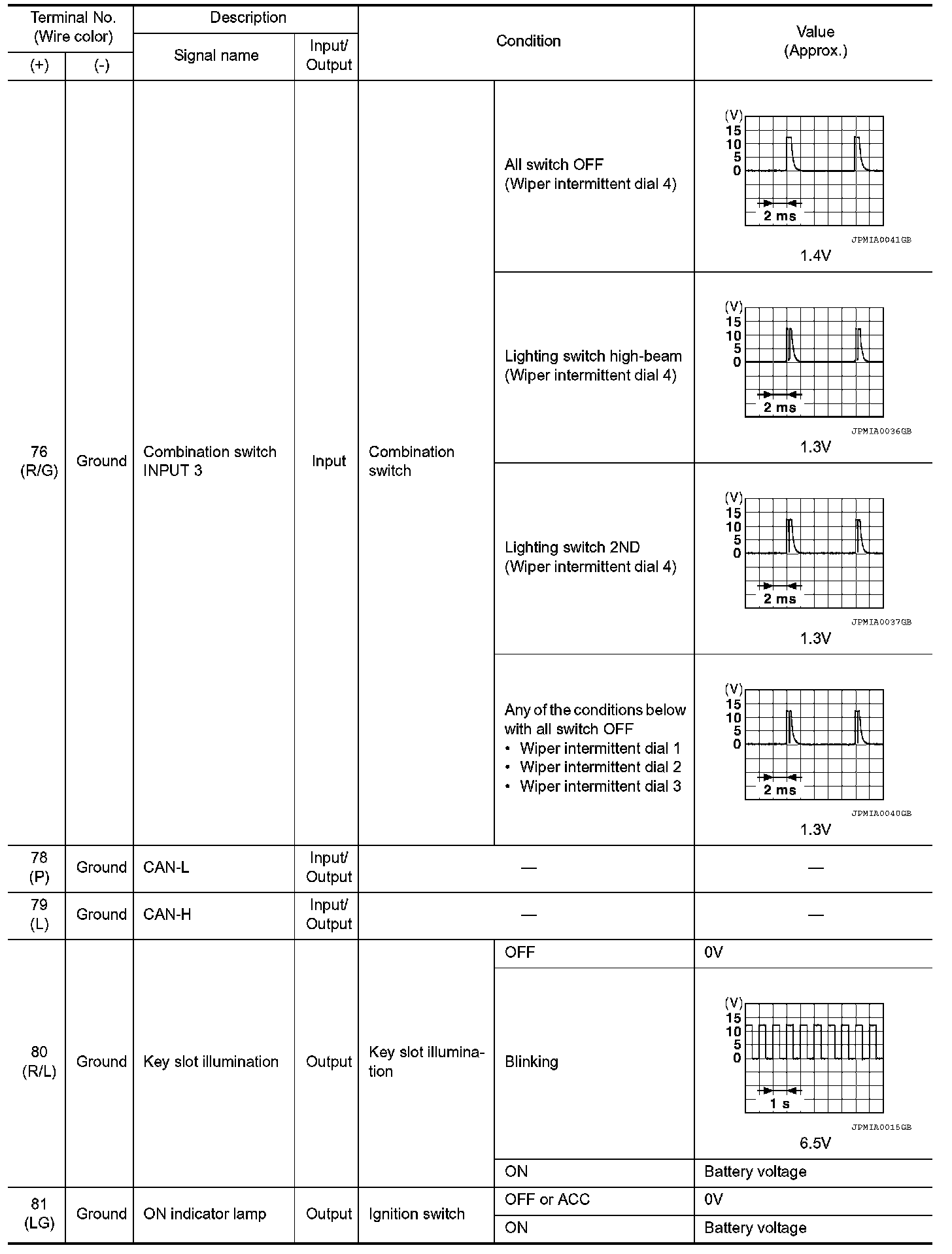

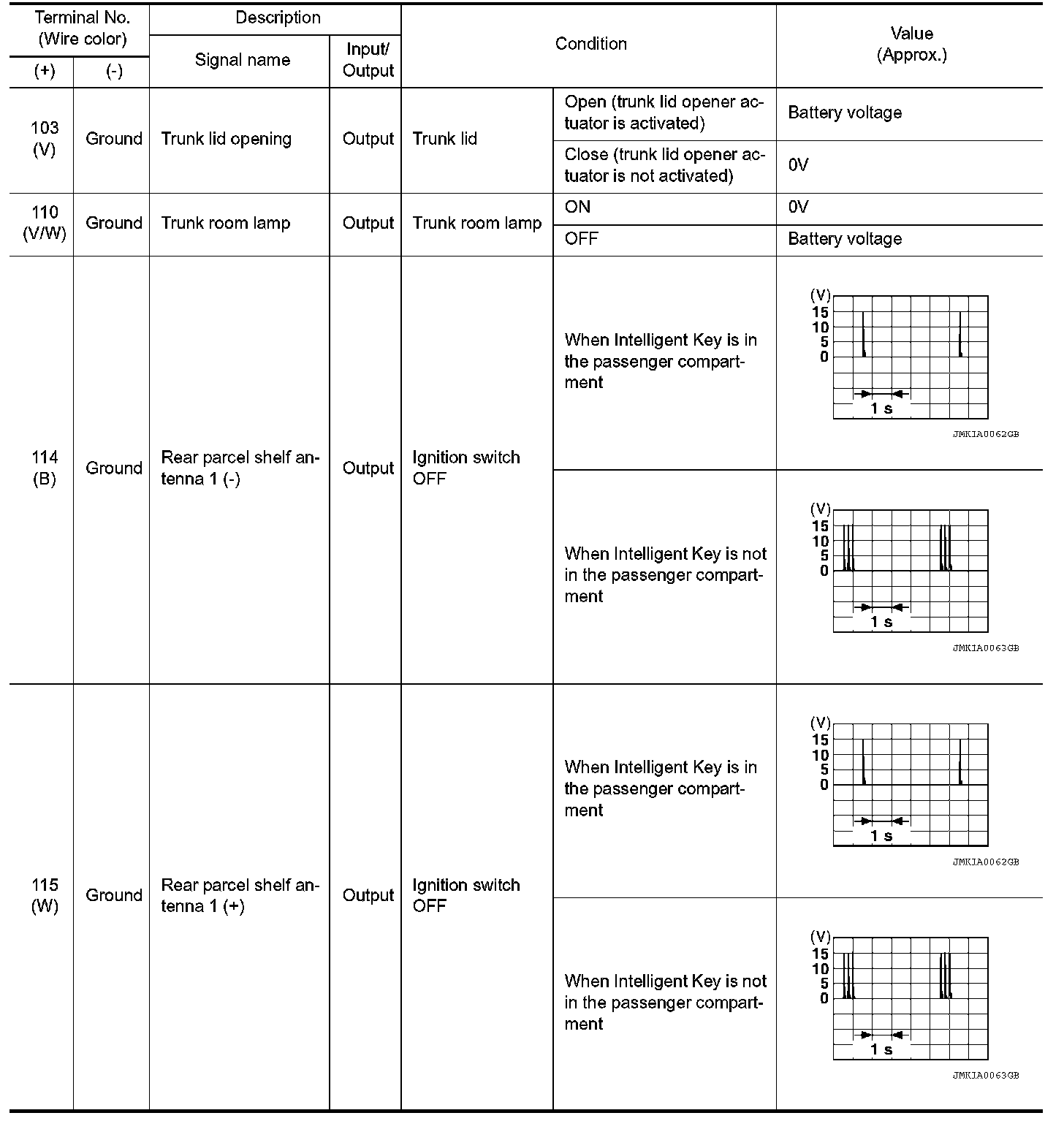

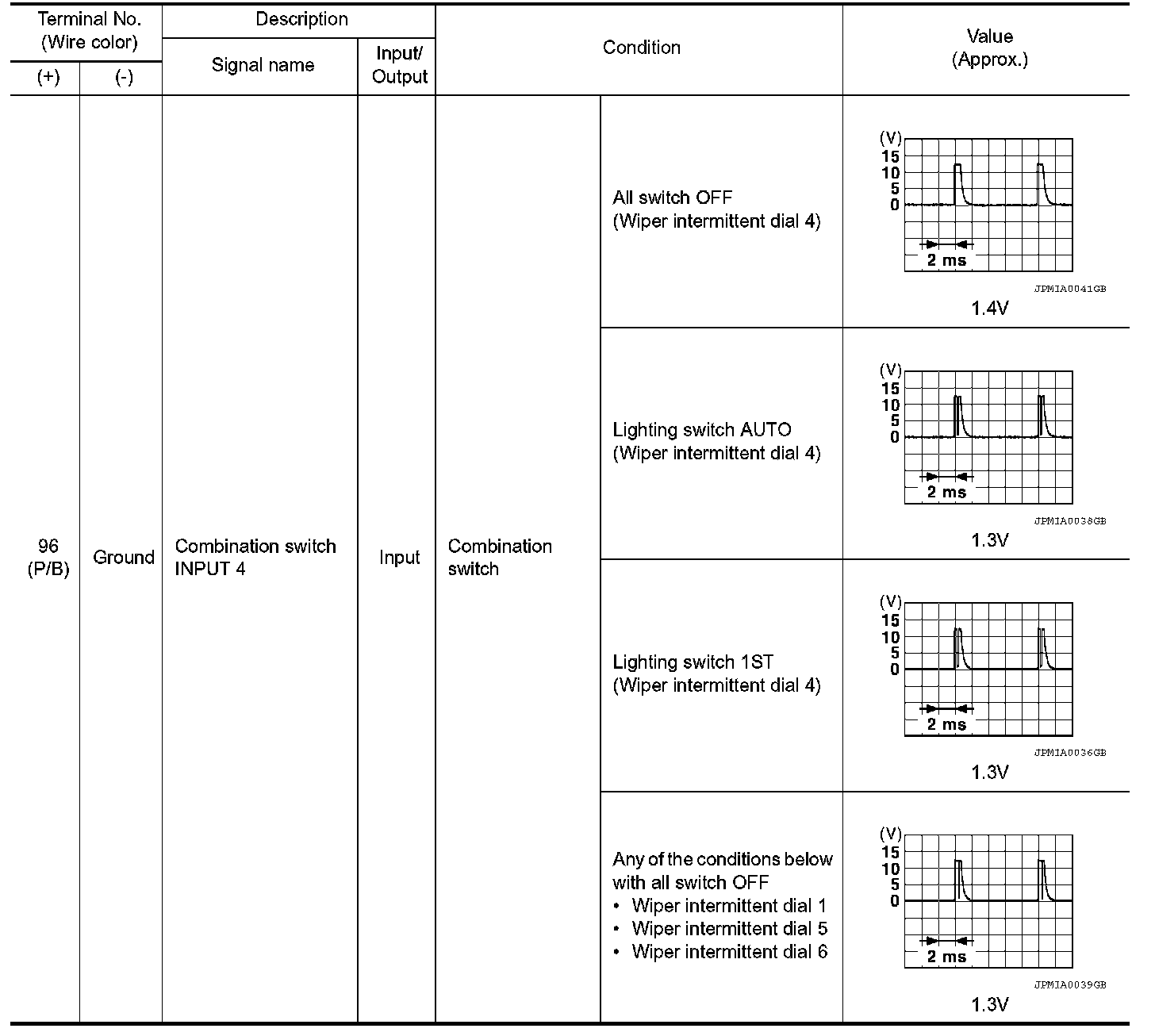

Physical Values
