(With LH Anti-Pinch Only) Sedan

DOOR LOCK AND UNLOCK SWITCH

PASSENGER SIDE : Diagnosis Procedure (With LH Anti-Pinch Only)

Regarding Wiring Diagram information, With Intelligent Key.

1. CHECK POWER WINDOW SWITCH OUTPUT SIGNAL

1.Turn ignition switch ON.

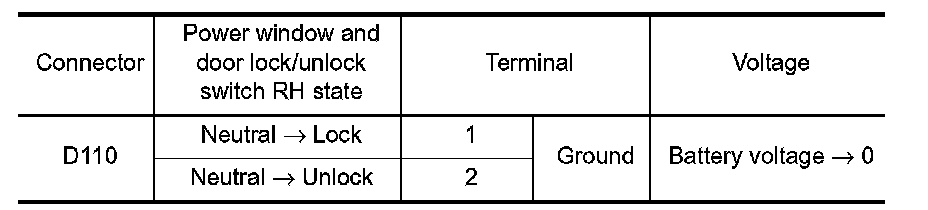

2.Check voltage at the power window and door lock/unlock switch
RH connector when the switch (passenger side) is turned to
"LOCK" or "UNLOCK".





Is the inspection result normal?
YES- GO TO 5
NO- GO TO 2

2. CHECK POWER WINDOW SWITCH GROUND

1.Turn ignition switch OFF.
2.Disconnect power window and door lock/unlock switch RH connector.

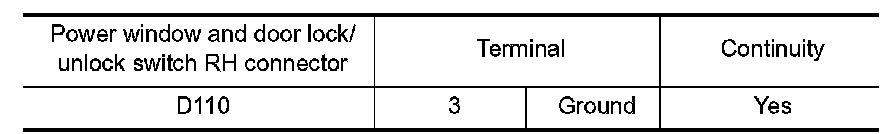

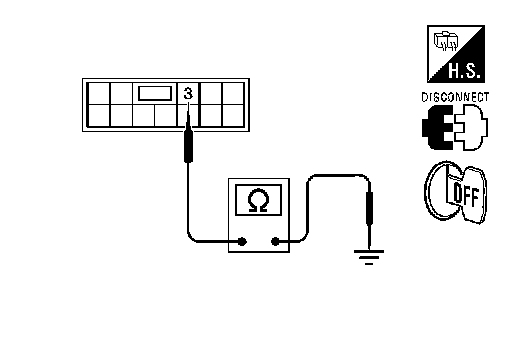

3.Check continuity between power window and door lock/unlock switch RH connector and ground.






Is the inspection result normal?
YES- GO TO 3
NO- Repair or replace harness.

3. CHECK POWER WINDOW SWITCH

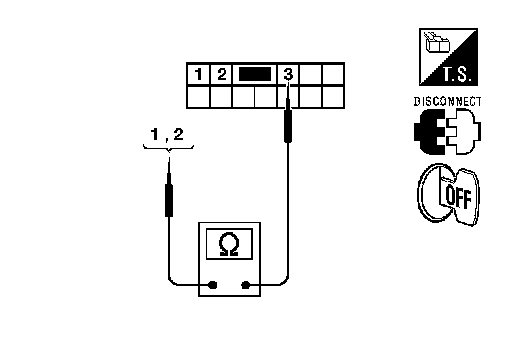

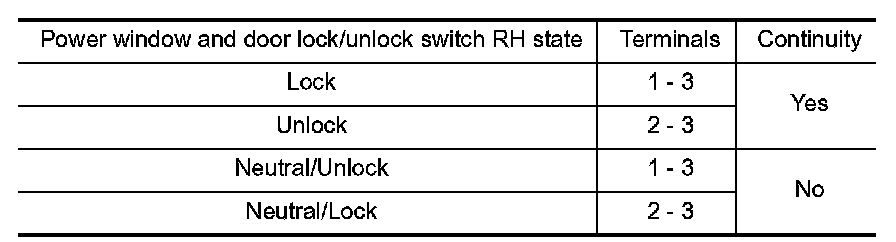

Check continuity between power window and door lock/unlock switch RH terminals.





Is the inspection result normal?
YES- GO TO 4
NO- Replace power window and door lock/unlock switch RH.

4. CHECK POWER WINDOW SWITCH CIRCUITS

1.Disconnect BCM connector.

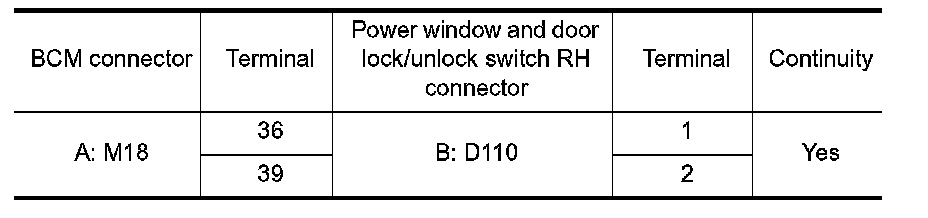

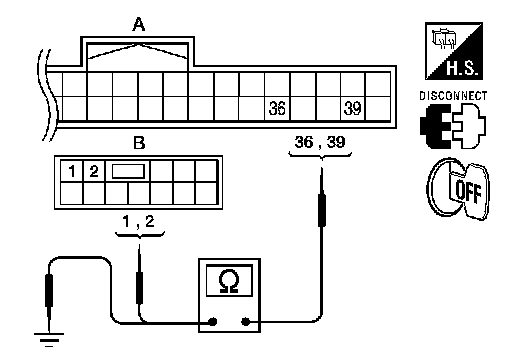

2.Check continuity between BCM connector and power window and door lock/unlock switch RH connector.

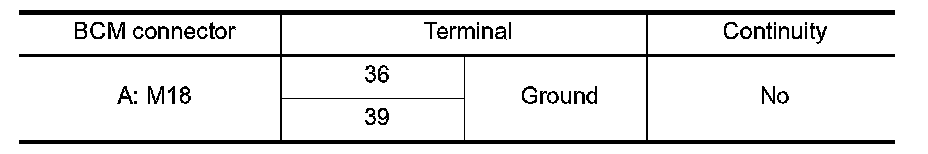

3.Check continuity between BCM connector and ground.





Is the inspection result normal?
YES- GO TO 5
NO- Repair or replace harness.

5. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- Inspection End.
